QubicaAMF Pinspotter Parts 90 XLi Front End Components Table Drive Assembly

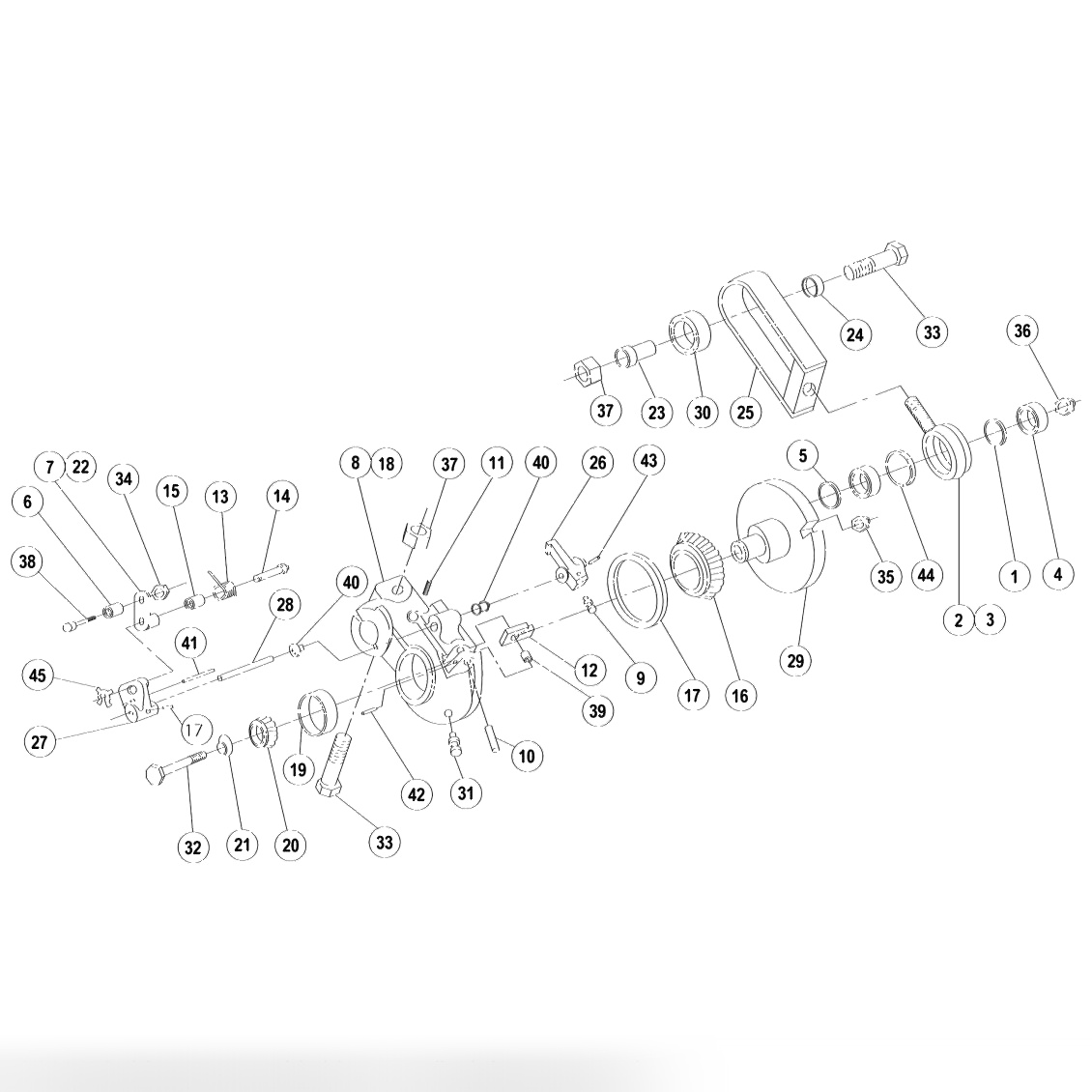

Table Drive Assembly

Позиция	Артикул	Наименование	Цена
№1	000021878	Spacer	520 ₽
№3	000021880	Rod End Assembly	6 060 ₽
№4	000021881	Clevis Rod End Ball Bearing, Single Seal	1 080 ₽
№5	070001849	Flat Washer 0.63 X 1.00 X 0.13, Black Oxide Finish , SP	480 ₽
№6	070001857BG	Roller Bearing, Nylon Finish (Bag of 2)	910 ₽
№9	070001893	Cam Ball Assembly	1 390 ₽
№10	070001894	Special Pin (Custom)	230 ₽
№11	070001917BG	Compression Spring (Bag of 5)	1 080 ₽
№12	070001898	Latch Assembly	3 540 ₽
№13	070001931	Spring Table Drive	320 ₽
№14	070001877	Eccentric, Table Drive	34 920 ₽
№14	070001932	Pin Actuator Assembly	720 ₽
№15	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)	1 340 ₽
№16	070002776	Table Drive Roller Bearing	11 240 ₽
№17	070002777	Bearing Cup	4 830 ₽
№18	070002778	Crank Housing and Cup Assembly	39 080 ₽
№19	070002780	Roller Bearing Cup	2 130 ₽
№20	070002824	Cone and Seal Bearing Assembly	8 530 ₽
№21	070006729	Belleville (Disc Spring) Washer 7/16	260 ₽
№22	070007250	Link Assembly	3 440 ₽
№23	070007310	Flange Bushing, 0.50 X 0.88 X 1.20	1 090 ₽
№24	070007311	Sleeve, Table Drive Assembly	1 120 ₽
№25	070007755	Yoke Weldment	3 180 ₽
№26	070008321	Latch Arm Assembly (1/8" Spring Pin Hole)	3 990 ₽
№27	070008322	Link Actuator Assembly	5 290 ₽
№28	070008325	Pin Actuator Assembly	730 ₽
№29	090005549	Table Drive Eccentric	28 140 ₽
№30	190001490	Ball Bearing, 0.87 X 1.88 X 0.50	1 600 ₽
№31	710501004	Grease Fitting	230 ₽
№32	809870325BG	Cap Screw, Hex Head, 7/16-20 X 2.00 (Bag of 10)	1 860 ₽
№33	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)	1 700 ₽
№34	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)	1 010 ₽
№35	840070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)	3 090 ₽
№36	840182002BG	Hex Lock Nut (Bag of 10)	5 500 ₽
№37	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)	890 ₽
№38	880139120BG	Shoulder Bolt, Socket Head, 1/4 X 0.38 (Bag of 10)	1 480 ₽
№39	900104071BG	Bearing Sleeve, 0.25 X 0.44 (Bag of 5)	2 080 ₽
№40	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)	880 ₽
№41	912137200BG	Groove Pin, 3/16 X 1-1/4, T3 (Bag of 10)	2 190 ₽
№42	913415120BG	Spring Pin, 3/32 X 3/4 (Bag of 10)	460 ₽
№43	913423120BG	Spring Pin, 1/8 X 3/4 (Bag of 10)	430 ₽
№44	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)	920 ₽
№45	963300002BG	X-Washer, 5/32", 9000-10 (Bag of 10)	810 ₽
-	612088003	XLi Front End Motor Brake Kit	29 000 ₽
-	088000115	50 Hertz Motor (Motor Only)	52 280 ₽
-	088004529	Kit Front End Gearbox Seal Repair -03	0 ₽
-	090005550	Table Drive Assembly - Steel Table	105 720 ₽
-	785880115	Front End XLi Comp Rotor 50Hz	19 080 ₽
-	785880116	Front End XLi Comp Rotor 60Hz	21 470 ₽
