QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 90 XLi Ball Lift PBL Track Assembly

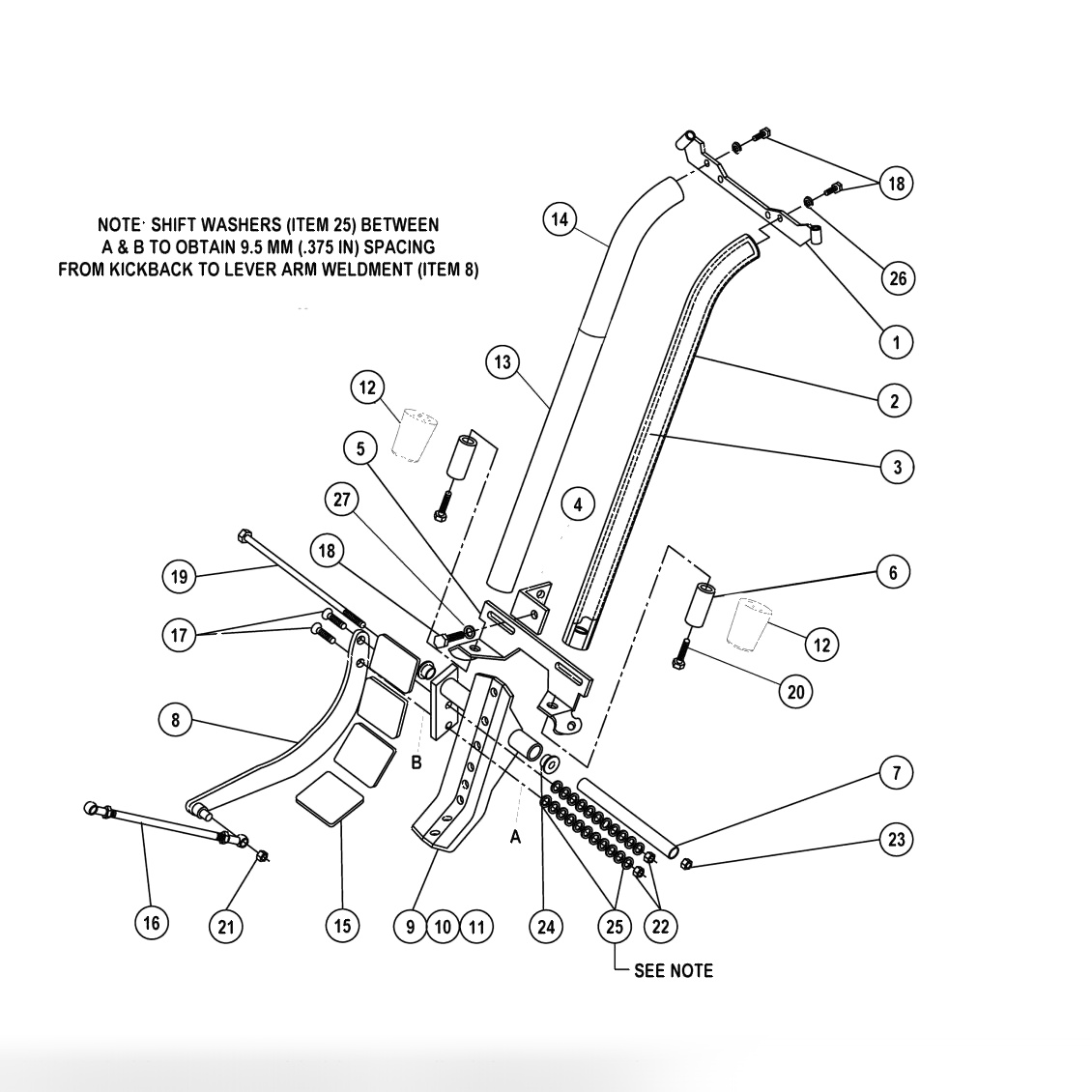

PBL Track Assembly

Позиция	Артикул	Наименование
1	000021813	Support, Wiper
2	000024663	Track Cover, Upper
3	000024666	Track Rail Weldment
4	000024668	Track Support Bracket
5	070008191	Ball Lift Bracket
6	070011018	Ball Guide, Steel
7	070011063	Shaft
8	070011218	Lever Arm Weldment
9	070011411	Lift Arm Weldment
10	070011412	Lift Arm Assembly
11	070011413	Lift Assembly
12	088001230	Thimble
13	088001231	Rail Cover - Lower Clear
14	088001232	Upper Rail Cover, Black Rubber
15	090002024	Cradle Liner (Black-PBL Lift Arm)
16	090005259	Rod Assembly
17	808857280BG	Screw, Flat Head, 5/16-18 X 1.75 Bg/10
18	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
19	809865992BG	Cap Screw, Hex Head, 3/8-16 X 9.00 (Bag of 10)
20	810365401BG	Cap Screw, Socket Head, 3/8-16 X 2.50 (Bag of 10)
21	838866002BG	Elastic Stop Nut, 3/8-24, ESN TN (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
24	900210161BG	Flange Bushing, 0.63 X 1.00, Bronze (Bag of 5)
25	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
26	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
27	941464130BG	Nord-Loc 3/8 Washer Bg/10
27	958584002	External Tooth Lock Washer 3/8 ANSI, Zinc Finish
-	000024606	Support Plate Assembly
-	610049510	Gripper PBL Upgrade Kit
-	000024604-ORG	PBL Belt, Orange
