QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 90 XLi Ball Lift PBL Light Ball Sensor Assembly

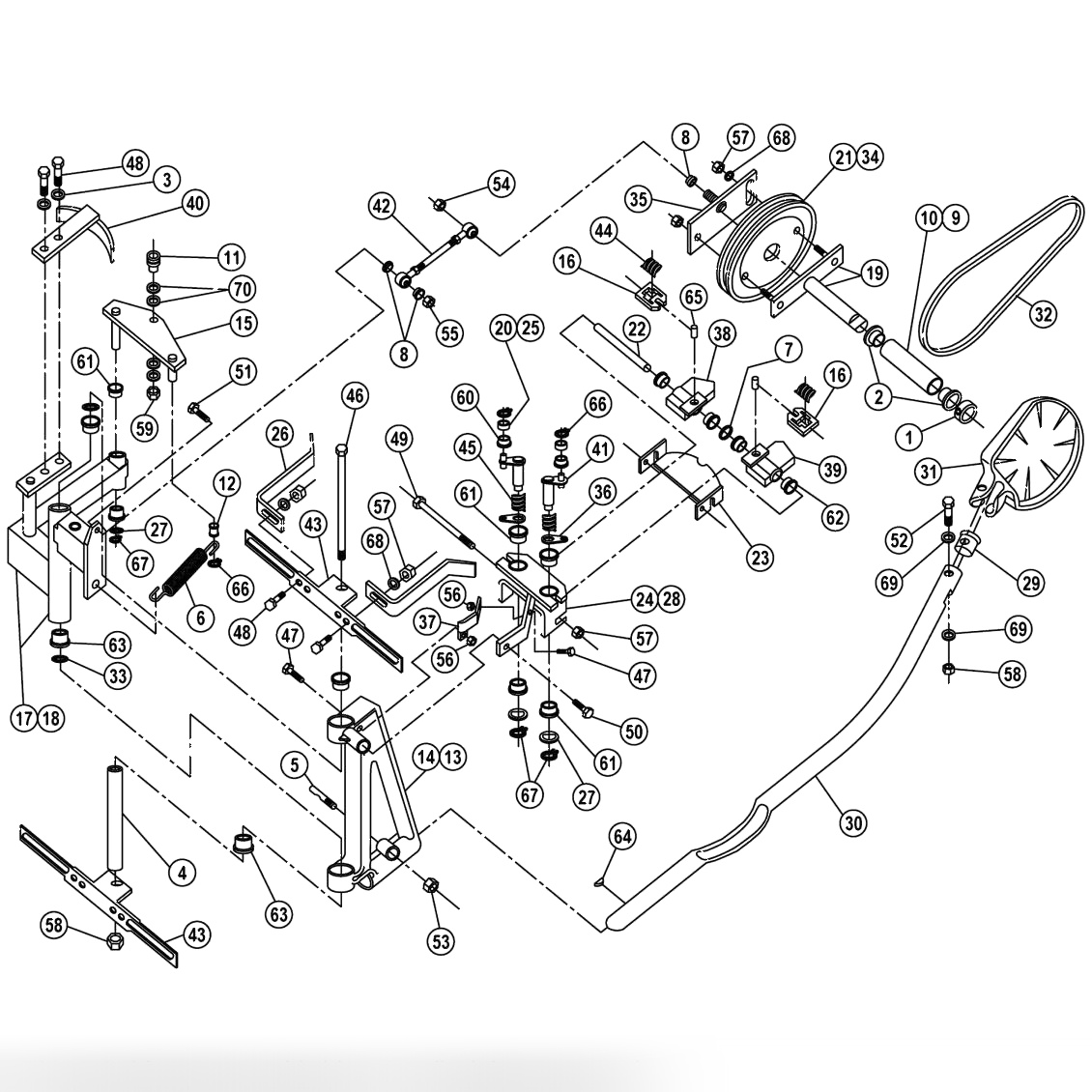

PBL Light Ball Sensor Assembly

Позиция	Артикул	Наименование
1	000021423	Collar, 5/8"
2	000021427	Flange Bushing, 0.63 X 0.88 X 1.25
3	000022869BG	Flat Washer 3/8 X 0.43 X 1.00 X 0.078 USS (Bag of 10)
4	000024615	Shaft Ball Door Rudder
5	000024616	Clamp Stud
6	000026031	Tension Spring, Distributor Belt
7	000027264	Spacer Flat Washer 0.50 X 1.00 X 0.06
8	000029611BG	Uniball Bearing Flat Washer (Bag of 10)
9	000029696	Tube Assembly
10	000029697	Tube Adjustment, Female, Round Body, 0.88 X 1.18 X 4.50
11	070006728	Cam Follower
12	070011040BG	Ratchet Roller, Bag of 10
13	070011066	Rudder Arm Support Assembly
14	070011067	Rudder Arm Support
15	070011068	Link Weldment
16	070011077	Trip Finger
17	070011079	Rudder Drive Weldment
18	070011080	Rudder Drive Assembly
19	070011092	Crank Shaft Weldment
20	070011096	Roller Spacer
21	070011097	Crank Pulley
22	070011098	Sleeve
24	070011100	Cam Sensor Weldment
25	070011105	Roller Assembly
26	070011107	Trip Arm (Reset Cam)
27	070011108	Flat Washer 0.50 X 0.88 X 0.06, Black Oxide Finish
28	070011110	Cam Sensor Assembly
29	070011121	Plug
30	070011122	Rudder Arm
31	070011146	Paddle - PBL
32	070011148	V-Belt - PBL
33	070011151	Spacer
34	070011178	Rudder Drive Crank Assembly
35	070011225	Crank Adjustment Plate Weldment
36	070011273	Tab
37	070011299	Sensor Brace
38	070011406	Rudder Cam Assembly, Right Hand (Even)
39	070011407	Rudder Cam Assembly, Left Hand (Odd)
40	070011418	Trip Cam
41	070011626	Trip Arm Assembly
42	090005258	Rod Assembly
43	090007276	Bracket
44	722971522	Compression Spring
45	722985512	Compression Spring
46	802865996BG	Cap Screw, Hex Head, 3/8-16 X 9.50 (Bag of 10)
47	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
48	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
49	809857880BG	5/16-18 x5 1/2 Scr Hx Bg/10
49	809857880	Screw, Hex, 5/16 - 18 X 5-1/2
50	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
51	809865205BG	Cap Screw, Hex Head, 3/8-16 X 1.25 (Bag of 10)
52	809865405BG	Cap Screw, Hex Head, 3/8-16 X 2.50 (Bag of 10)
53	831573002BG	Hex Finish Nut, 1/2-13 (Bag of 10)
54	838866002BG	Elastic Stop Nut, 3/8-24, ESN TN (Bag of 10)
55	840065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
59	844070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)
60	900205081BG	Flange Bushing, 0.32 X 0.44 X 0.50 (Bag of 5)
61	900208091BG	Flange Bushing, 0.50 X 0.69 X 0.56 (Bag of 5)
62	900208161BG	Flange Bushing, 0.50 X 0.88 (Bag of 5)
63	900212201BG	Flange Bushing, 0.75 X 1.00 X 1.25 (Bag of 5)
64	907000900BG	Hi-Pro Key, 910 (Bag of 10)
65	913448120BG	Spring Pin, 1/4 X 3/4 (Bag of 10)
66	919005200BG	Snap (External) Ring, #5100-31 (Bag of 10)
67	919005500BG	Snap (External) Ring, #5100-50 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
69	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
70	949100002BG	Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
-	070011099	Cam Light Ball Sensor
