QubicaAMF Pinspotter Parts 90 XLi Ball Lift PBL Assembly

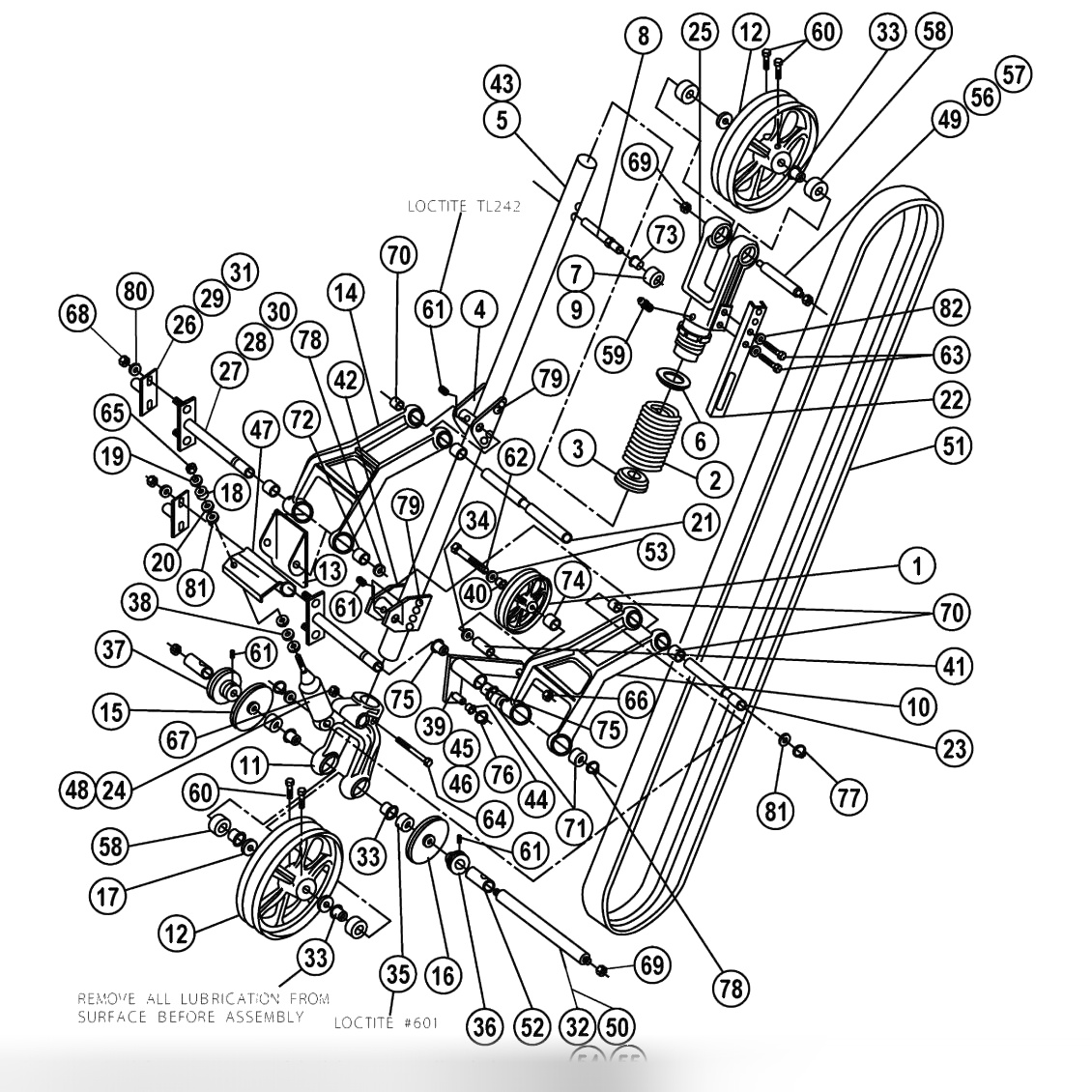

PBL Assembly

Позиция	Артикул	Наименование	Цена
№1	000021408	Pulley Assembly	3 520 ₽
№2	000024603	Spring Ball Lift	5 870 ₽
№3	000024605	Lower Retainer	4 870 ₽
№4	000024606	Support Plate Assembly	4 160 ₽
№5	000024607	Tube Ball Lift	9 370 ₽
№6	000024608	Upper Retainer	650 ₽
№7	000024647	Roller Spacer	720 ₽
№8	000024648	Special Pin (Custom)	1 450 ₽
№9	000024650	Roller Assembly	1 190 ₽
№11	000024659	Yoke, Lower PBL	12 520 ₽
№12	000024661	PBL Belt Pulley	6 010 ₽
№13	000024716	Spring Holder	1 040 ₽
№14	000024720	Link Assembly Upper	8 270 ₽
№15	000024811	Pulley Assembly (5" Diameter)	7 230 ₽
№16	000024812	Pulley Assembly (5" Diameter)	7 230 ₽
№17	000027642	Front Roller Flat Washer 0.76 X 1.25 X 0.05	90 ₽
№18	000027996	Cushion	530 ₽
№19	000027998	Retainer	630 ₽
№20	000028057	Retainer Cushion Guide	920 ₽
№21	000028737	Shaft, Pivot	1 830 ₽
№22	000029613	Rail	2 810 ₽
№23	000029660	Shaft	1 230 ₽
№24	000029661	Shock Absorber	11 640 ₽
№25	070001995	Upper Yoke Assembly	14 630 ₽
№26	070006320	Shaft (Split Type) 9 1/2" to 11"	4 040 ₽
№27	070006325	Shaft (Split Type) 9 1/2" to 11"	4 370 ₽
№28	070006328	Shaft (Split Type) 11" to 12 5/8"	12 710 ₽
№29	070006329	Shaft (Split Type) 11" to 12 5/8"	5 530 ₽
№30	070006330	Shaft (Split Type) 12 5/8 to 14"	41 280 ₽
№31	070006333	Shaft (Split Type) 12 5/8 to 14"	23 400 ₽
№32	070006746	Shaft, Lower, Straight Bore	2 780 ₽
№33	070006748	Spacer, Ball Lift Shaft	530 ₽
№34	070007192BG	Respot Cell Assembly Flat Washer (Bag of 10)	550 ₽
№35	070007291	Bearing, 1.00 X 1.31 X 1.00, Clutch 03-075	3 580 ₽
№36	070008210	Sheave, Paddle Drive	3 860 ₽
№37	070008211	Sheave	5 590 ₽
№38	070008212	Spacer	390 ₽
№39	070008215	Belt Tightener Weldment	9 440 ₽
№40	070008217	Short Spacer	970 ₽
№41	070008218	Spacer, Long	950 ₽
№42	070011002	Lower Support	5 200 ₽
№43	070011004	Tube and Support Assembly	24 230 ₽
№44	070011040BG	Ratchet Roller, Bag of 10	1 770 ₽
№45	070011041	Belt Tightener Weldment Assembly	11 440 ₽
№46	070011042	Belt Tightener Assembly	17 980 ₽
№47	070011289	Shock Absorber Bracket	3 300 ₽
№48	070011323	Shock Absorber Assembly	18 210 ₽
№49	070011795	D-Bore Ball Lift Shafts and Bearing (Upper Shaft)	5 120 ₽
№50	070011796	D-Bore Ball Lift Shafts and Bearing (Lower Shaft)	5 840 ₽
№51	000024604-ORG	PBL Belt, Orange	0 ₽
№52	090003401	Clutch Race - Ball Lift	2 830 ₽
№53	146005277	Flat Washer 0.28 X 0.88 X 0.13, Countersunk	260 ₽
№54	610900708	D-Bore Shaft and Bearing Kit, Lower	11 770 ₽
№55	610900709	Straight Shaft and Spacer Kit - Lower	18 370 ₽
№56	610900711	Straight Shaft and Spacer Kit - Upper	11 820 ₽
№57	610900714	D-Bore Shaft and Bearing Kit, Upper	11 980 ₽
№58	610905704	Straight Bore Bearing and Spacer Kit	5 620 ₽
№59	710501007	Grease Fitting	170 ₽
№60	806265160BG	Set Screw, Square Head Cup Point, 3/8-16 X 1.00 (Bag of 10)	1 220 ₽
№61	807265060	Set Screw, Hex Socket Drive Cup Point, 3/8-16 X 0.38	100 ₽
№62	808849565BG	Cap Screw, Flat Head, 1/4-20 X 3.50 Bg/10	2 360 ₽
№63	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)	690 ₽
№64	809865445BG	Cap Screw, Hex Head, 3/8-16 X 2.75 (Bag of 10)	1 480 ₽
№65	831566002BG	Hex Finish Nut, 3/8-24 (Bag of 10)	580 ₽
№66	839549002BG	Hex Lock Nut, 1/4-20, HT (Bag of 10)	1 110 ₽
№67	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)	1 850 ₽
№68	840057002BG	Hex Lock Nut, 5/16-18 (Bag of 10)	1 690 ₽
№69	856070002BG	Hex Flange Lock Nut, 7/16-20 (Bag of 10)	1 400 ₽
№70	900110121BG	Bearing Sleeve, 0.63 X 0.75 (Bag of 5)	1 760 ₽
№71	900112161BG	Bearing Sleeve, 0.75 X 1.00 (Bag of 5)	3 700 ₽
№72	900112203BG	Bearing Sleeve, 0.75 X 1.00 X 1.25 (Bag of 5)	1 570 ₽
№73	900206081BG	Flange Bushing, 0.38 X 0.69 X 0.50 (Bag of 5)	1 080 ₽
№74	900208161BG	Flange Bushing, 0.50 X 0.88 (Bag of 5)	2 070 ₽
№75	900212161BG	Flange Bushing, 0.75 X 1.00 X 1.00 (Bag of 5)	2 710 ₽
№76	919005200BG	Snap (External) Ring, #5100-31 (Bag of 10)	650 ₽
№77	919005600BG	Snap (External) Ring, #5100-62 5/8" (Bag of 10)	480 ₽
№78	919005800BG	Snap (External) Ring, #5100-75 (Bag of 10)	500 ₽
№79	937000000BG	Drive Rivet, 0.25 X 0.34, Plain Steel, UH (Bag of 10)	4 310 ₽
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)	270 ₽
№81	948983212BG	Flat Washer 1.31 X 0.66 X 0.09 (Bag of 10)	530 ₽
№82	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)	470 ₽
-	070011797	Ball Bearing, D-Bore 8	4 490 ₽
-	610905703	D-Bore Bearing and Spacer Kit (1 Bearing / 1 Spacer).	5 020 ₽
-	070001965	Upper PBL Yoke and Pulley ASM	23 860 ₽
-	070011047	Lower Yoke Assembly	35 070 ₽
-	700107146	Adhesive, Loctite, Blue	5 020 ₽
-	700107170	Loctite Adhesive RC609/10ML	4 860 ₽
