QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8270 Front End Components Table Drive Assembly

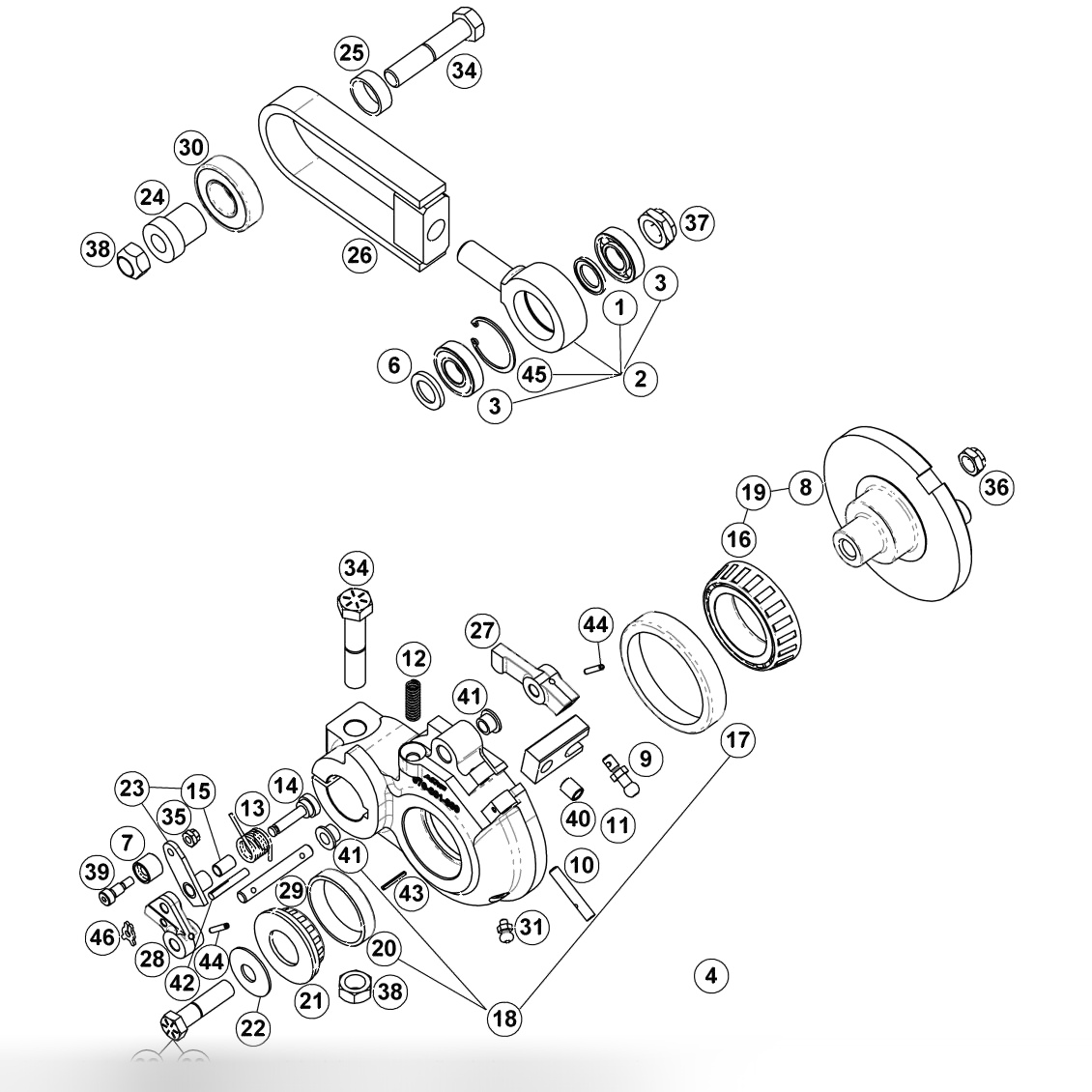

Table Drive Assembly

Позиция	Артикул	Наименование
1	000021878	Spacer
2	000021880	Rod End Assembly
3	000021881	Clevis Rod End Ball Bearing, Single Seal
4	070001840	Table Drive Assembly
6	070001849	Flat Washer 0.63 X 1.00 X 0.13, Black Oxide Finish , SP
7	070001857BG	Roller Bearing, Nylon Finish (Bag of 2)
8	070001877	Eccentric, Table Drive
9	070001893	Cam Ball Assembly
10	070001894	Special Pin (Custom)
11	070001845	Spring
11	070001898	Latch Assembly
12	070001917BG	Compression Spring (Bag of 5)
13	070001931	Spring Table Drive
14	070001932	Pin Actuator Assembly
15	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)
16	070002776	Table Drive Roller Bearing
17	070002777	Bearing Cup
18	070002778	Crank Housing and Cup Assembly
19	070002779	Eccentric and Cone Assembly
20	070002780	Roller Bearing Cup
21	070002824	Cone and Seal Bearing Assembly
22	070006729	Belleville (Disc Spring) Washer 7/16
23	070007250	Link Assembly
24	070007310	Flange Bushing, 0.50 X 0.88 X 1.20
25	070007311	Sleeve, Table Drive Assembly
26	070007755	Yoke Weldment
27	070008321	Latch Arm Assembly (1/8" Spring Pin Hole)
28	070008322	Link Actuator Assembly
29	070008325	Pin Actuator Assembly
30	190001490	Ball Bearing, 0.87 X 1.88 X 0.50
31	710501004	Grease Fitting
32	070001843	Bolt, Table Drive Eccentric
32	809870285BG	Cap Screw, Hex Head, 7/16-20 X 1.75 (Bag of 10)
33	809870325BG	Cap Screw, Hex Head, 7/16-20 X 2.00 (Bag of 10)
34	809873525BG	Cap Screw, Hex Head, 1/2-13 X 3.25 (Bag of 10)
35	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)
36	840070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)
37	840182002BG	Hex Lock Nut (Bag of 10)
38	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
39	880139120BG	Shoulder Bolt, Socket Head, 1/4 X 0.38 (Bag of 10)
40	900104071BG	Bearing Sleeve, 0.25 X 0.44 (Bag of 5)
41	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)
42	912137200BG	Groove Pin, 3/16 X 1-1/4, T3 (Bag of 10)
43	913415120BG	Spring Pin, 3/32 X 3/4 (Bag of 10)
44	913423120BG	Spring Pin, 1/8 X 3/4 (Bag of 10)
45	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)
46	963300002BG	X-Washer, 5/32", 9000-10 (Bag of 10)
-	070007304	Rod End Distributor Assembly
-	070008324	Arm Assembly ACT Assembly
-	610704012	Kit For Old Style Table Drive
-	610704133	Pin Replacement Kit-Table Drive
-	785503104	Viton Oil Seal - Worm Input
