QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8270 Front End Components Front End Drive Assembly

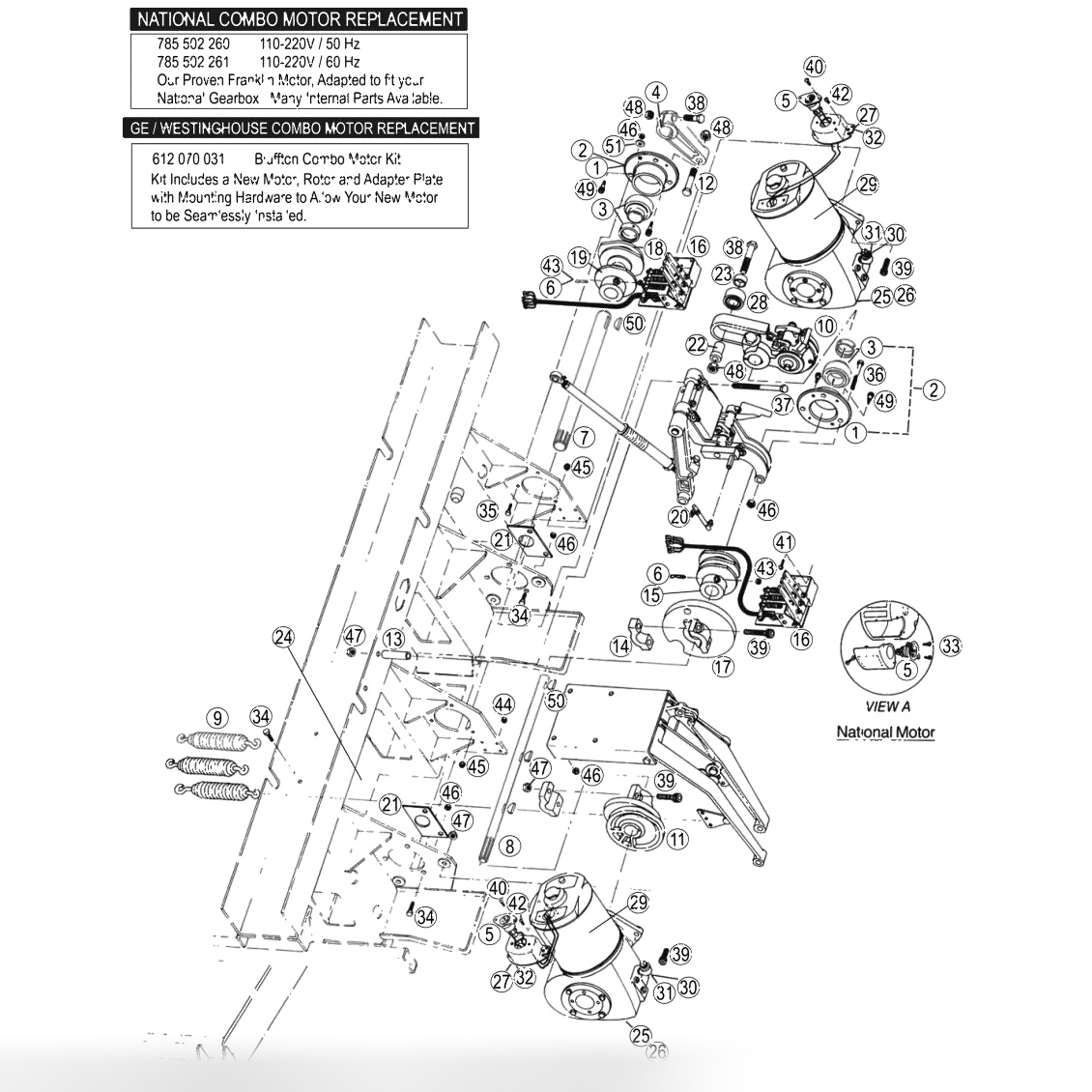

Front End Drive Assembly

Позиция	Артикул	Наименование
1	000021683	Bearing
2	000021744	Bearing, Self-Aligning
3	000021905	Locking Collar Ball Bearing, 1.25 X 0.44
4	000023139	Crank Arm (8270)
6	070001664	CL AMP Stud- Cam
7	070001699	Sweep Shaft
8	070001700	Drive Shaft - Table
9	070001707	Tension Spring, Spot and Respot Arms
10	070001840	Table Drive Assembly
11	070001910	Spot/Respot Cam
12	070003243	Cap Screw, Hex Head, 1/2-13 X 2.00
13	070006310	Spacer
14	070006407	Cap-Cam Hub
15	070006417	Table Cam Weldment
16	000021645	Lever Assembly-Switch
17	070006427	Shuttle Cam
18	070006449	SB and SC Sweep Cam Weldment
19	070006450	SA Sweep Cam Weldment
20	070006493	Ball Joint Assembly
21	070006765	Shaft Plate
22	070007310	Flange Bushing, 0.50 X 0.88 X 1.20
23	070007311	Sleeve, Table Drive Assembly
24	070007761	Spot Respot Spring Hanger Repair Kit
25	612070047	Bluffton Combination Motor Kit
26	070007850	Motor Combination Bluffton Universal
27	090004521	Receptacle Housing
28	190001490	Ball Bearing, 0.87 X 1.88 X 0.50
30	718506006	Elbow, Street
31	785501040	1/4-18 NPT Sq Plug Breather
32	610070304	8270 Front End Motor Connector Conversion Kit
33	785502202	Machine Screw, Pan Head, M3-.5 X 10mm
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
35	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
36	809857405BG	5/16-18 x2 1/2 Scr Hx Bg/10
36	809857405	Screw, hex, 5/16 - 18 x 2-1/2, Bag Of 10
37	809865645BG	Cap Screw, Hex Head, 3/8-16 X 4.00 (Bag of 10)
38	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)
39	810265280BG	Cap Screw, Socket Head, 3/8-16 X 1.75 (Bag of 10)
40	818227062	Machine Screw, Round Head, Phillips Drive, 6-32 X 0.38
41	818239122BG	#10-24 x 3/4 Scr SMRD+ Bg/10
41	818239122	SCR-SMRD+ 10-24X3/4
42	828127062BG	#6-32 x3/8 Scr TDRD+TYD
42	828127062	Scr-Tdrd #6-32X3/8Tyd (Bag 10)
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
44	840039002BG	Hex Lock Nut, 10-24, TN (Bag of 10)
45	843139002BG	Keps Nut, 10-24 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
48	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
49	880239140BG	Shoulder Bolt, Socket Head, 10-24 X 0.50, LG (Bag of 10)
50	907000900BG	Hi-Pro Key, 910 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
-	030002748	Cam Gauge
-	030003943	Motor Crank
-	610309044	Solid State Switch - Combination Motor
-	088001174	End Machine Guard Kit, Left Hand
-	070009847	Pitlite Reflector
-	070011367	Drive Assembly Left Hand Distributor 50Hz
-	610704120	Conversion Kit Double to Single Solenoid
-	610704103	Spring Roller Pin Repair Kit
-	715021711	Oil Mobil 600w
-	785501303	Shim Set
-	785501372	Terminal Board Switches - (Aux)
-	785501386	Terminal Board Switches - (Main)
-	785501397	Spring Washer
-	785501427	Worm-70 Combination Westinghouse
-	785501632	Shim, .001" Thickness
-	785501633	Shim, Bearing Cap, .002" Thickness
-	785501634	Shim, .005" Thickness
-	785501636	Shim, .020" Thickness
-	785502060	Rubber O Ring
-	785502269	National Front End Combination Replacement Motor 50Hz
-	785502261	National Combo Motor
-	785502268	National Front End Combination Replacement Motor 60Hz
-	792505005	Spring Puller
-	610700153	End Machine Kit
