QubicaAMF Оборудование зоны подхода | Front of Center Parts Lane Machines Summit S Frame & Body FRAME ASSEMBLY – SIDE PLATE 2

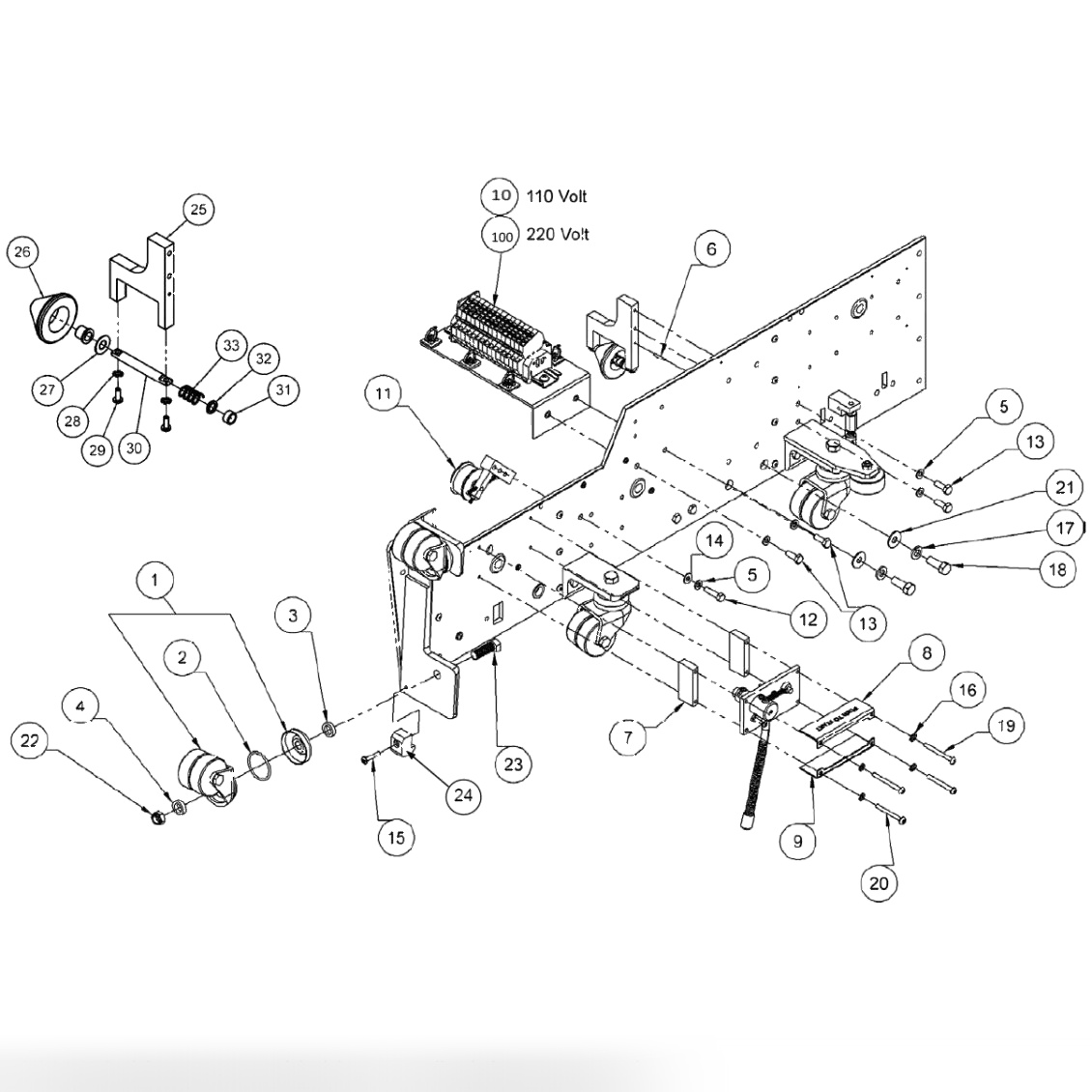

FRAME ASSEMBLY – SIDE PLATE 2

Позиция	Артикул	Наименование
1	04292	Double Caster with Dust Cup
2	04332	O-Ring, 1 3/8" X 3/32"
3	A00371	Drive Shaft Spacer
4	A0794	Caster Spacer
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
6	913423120BG	Spring Pin, 1/8 X 3/4 (Bag of 10)
8	294002443	Starter Box Top Cover
9	294002444	Starter Box Cover
10	294002356	Fuse Block Assembly 110V
11	SA6534	Tension PULLEY Assembly
12	01048	Cap Screw, Hex Head, 1/4-20 X 1.00, Grade 5, Zinc Finish
13	01046	Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish
14	01036	Flat Washer 3/16 X 0.25 X 0.55 X 0.046
15	01024	Machine Screw, Pan Head, 10-32 X 1.00
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
19	01155	10-32 x 2 Scr RHd M/S
20	01392	10-32 x 1-3/4 Scr PHd M/S
21	947356617	Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish
22	01159	Lock Nut, 7/16-20
23	809870205	Cap Screw, Hex Head, 7/16-20 X 1.25
24	A0586	Pivot Caster Block
25	294002017	Guide Bracket
26	294002011	Guide Roller Assembly
27	964572000	Thrust Washer
-	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
29	01021	Machine Screw, Pan Head, 10-32 X 0.50
30	294002016	Guide Roller Shaft
31	294002087	Guide Shaft Spacer
32	945546900	Guide Roller Flat Washer
33	294002025	Guide Spring
100	294002238	Fuse Block Assembly 220V
