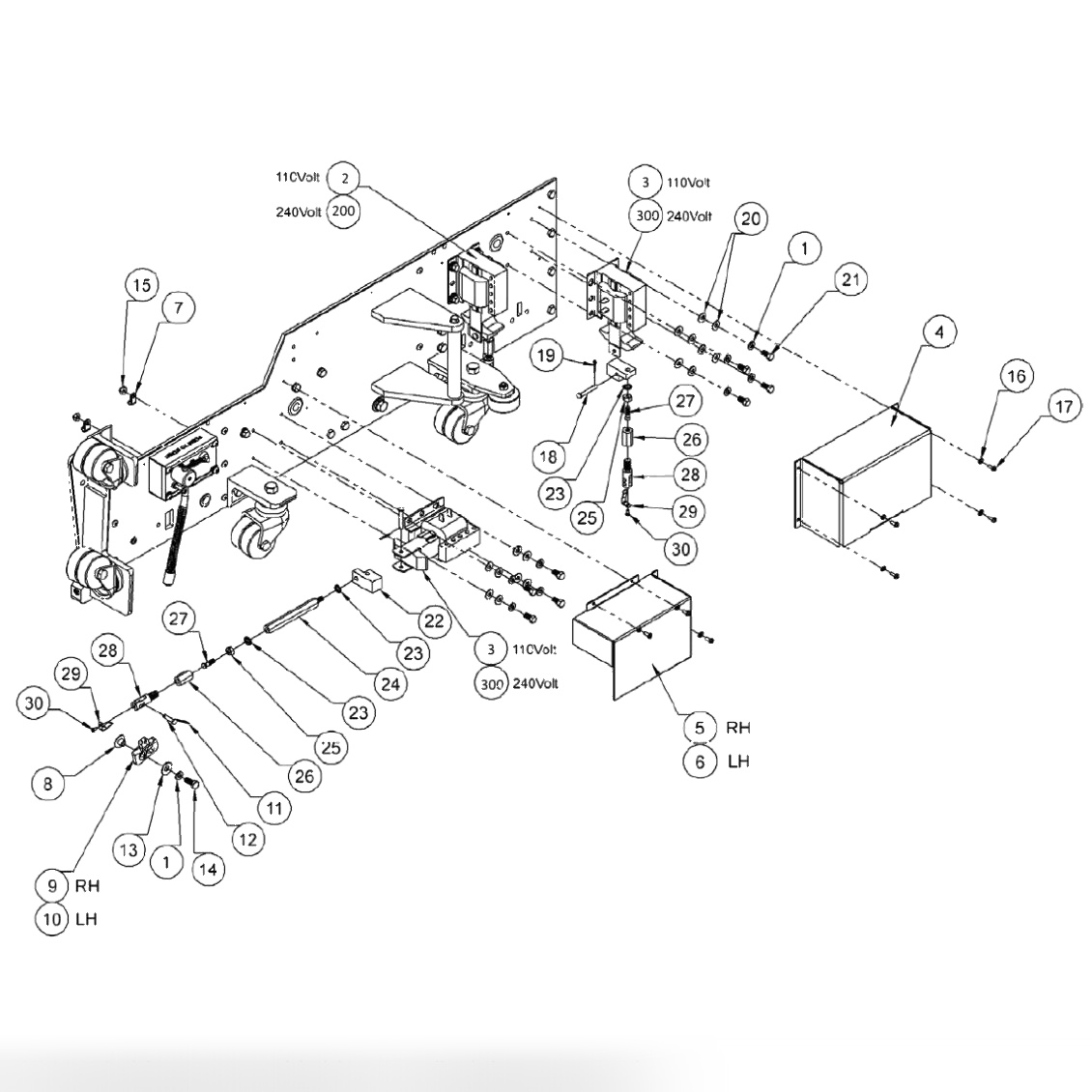

FRAME ASSEMBLY – SIDE PLATE

Позиция	Артикул	Наименование
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
2	294002032	110V SolenoidS - Lane Machines (Right Hand)
3	294002033	110V SolenoidS - Lane Machines (Left Hand)
4	294002433	Vacuum Solenoid Cover
5	294002432	Oil Solenoid Cover, Right Side
6	294002434	Oil Solenoid Cover, Left Hand
7	02008	Plastic Wire Clamp
8	A4041	Pressure Linkage Pivot
9	A4044	Pressure Linkage - Right
10	A4045	Pressure Linkage - Left
11	01040	Hairpin Cotter (Bridge) Pin, 1/16 X 9/16
12	01215	Clevis Pin, 3/16 X 3/4
13	01056	Flat Washer 1/4 X 0.30 X 0.75 X 0.05
14	01044	Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish
15	838740002	Elastic Stop Nut, 10-32, ESNA
-	843127002BG	Keps Nut, 6-32 (Bag of 10)
17	01001	Machine Screw, Pan Head, 6-32 X 0.38
18	01495	Clevis Pin, 3/16 X 1-1/4
19	01080	Cotter Pin, 1/16 X 1/2
20	01036	Flat Washer 3/16 X 0.25 X 0.55 X 0.046
21	01115	Cap Screw, Hex Head, 1/4-20 X 0.50, Grade 5, Zinc Finish
22	A8328	Solenoid Linkage BLock
23	01053	External Tooth Lock Washer 1/4 ANSI, Zinc Finish
24	A0344	Buffer Linkage Extension
25	01214	Hex Machine Screw Nut, 1/4-28
26	A4036	Pressure Adjusting Nut
27	A4037	Pressure Aadjusting Swivel
28	A4038	Pressure Linkage Rod
29	A4055	Tension Spring
30	01135	Machine Screw, Pan Head, 4-40 X 0.25
200	294002275	Solenoid, 240V, 3000 Series, Right Hand Terminals, 50 Hz
300	294002274	Solenoid, 240V, 3000 Series, Left Hand Terminals, 50 Hz
