QubicaAMF Оборудование зоны подхода | Front of Center Parts Lane Machines Summit S Frame & Body FRAME ASSEMBLY

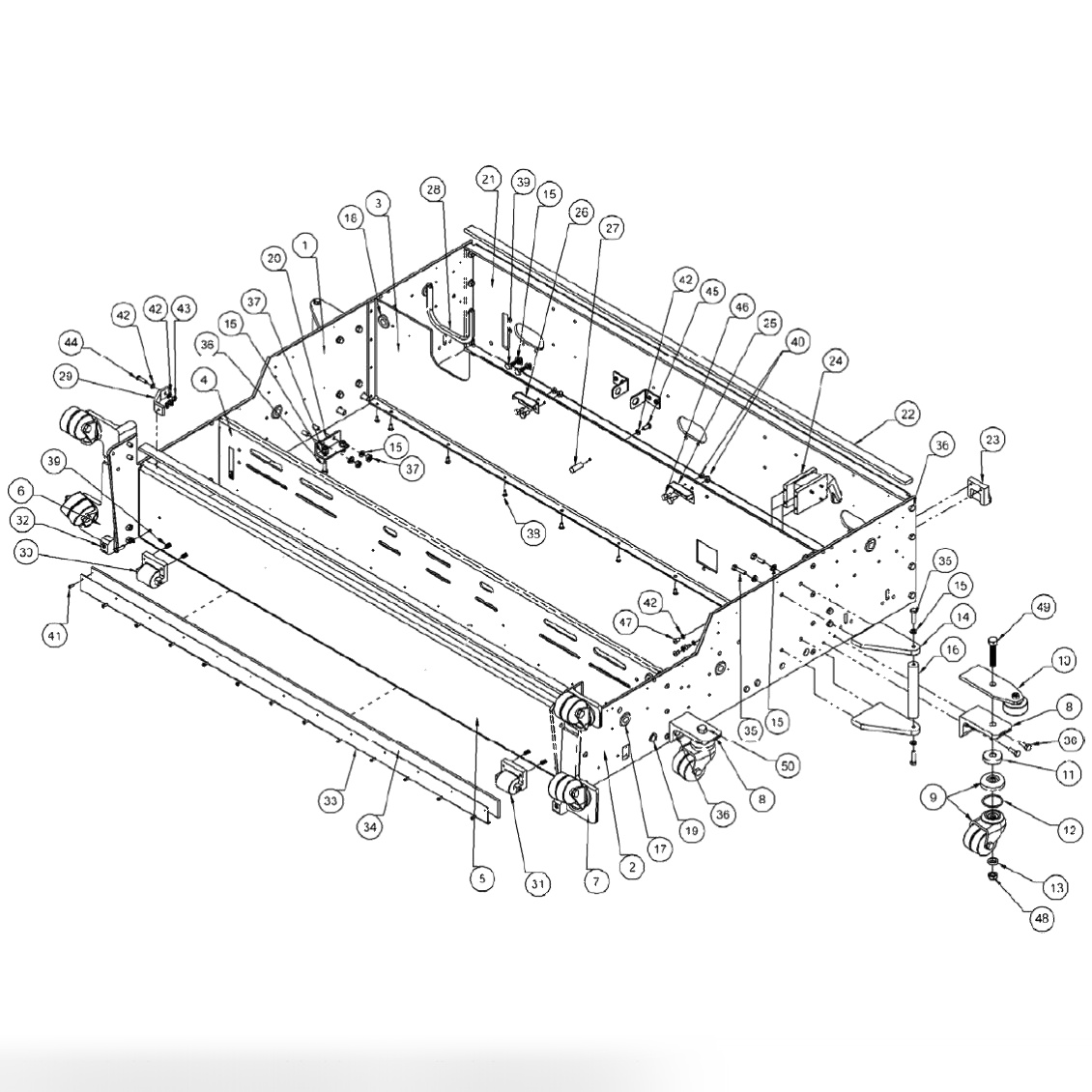

FRAME ASSEMBLY

Позиция	Артикул	Наименование
3	294002430	Front Electrical Firewall
4	294002431	Rear Electrical Firewall
5	294002429	Rear Plate
6	294002447	Double Caster Bracket, Left
7	294002446	Double Caster Bracket, Right
8	294002445	Caster Bracket
9	04292	Double Caster with Dust Cup
10	294002419	Centering Guide Plate Asm
11	A0919	Caster Spacer - Thick
12	04332	O-Ring, 1 3/8" X 3/32"
13	A0794	Caster Spacer
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
16	A0148	End Handle
17	711504047	1/4 Thk 1/2 ID Grommet
18	711504046	1/8 Thk 1/2 ID Grommet
19	A5547	Bearing Stud Bushing
20	A0588	Frame Bracket
22	04074	Foam Tape, 1/4 X 3/4 Self Adhesive
23	SA3012	Duster End Plate Roller Assembly
24	294002136	Trip Arm Assembly
25	A0342	Waste Tank Lock - Right
26	A0343	Waste Tank Lock - Left
27	A0341	Tank Support
28	04069	Edge Trim
29	294002085	Oil Compartment Bracket
31	294115737	Idler Roller Assembly
32	A0586	Pivot Caster Block
33	B0505	Rear Elect Firewall Felt Retainer
34	A0031	Oil Drip Felt
35	01048	Cap Screw, Hex Head, 1/4-20 X 1.00, Grade 5, Zinc Finish
36	01046	Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
38	938537060BG	Blind (Pop) Rivet, Domed, 0.19 (Bag of 10)
39	01044	Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish
40	838740002	Elastic Stop Nut, 10-32, ESNA
41	01130	Blind (Pop) Rivet, 0.13 X 0.50, Aluminum, LG
-	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
44	01023	Machine Screw, Pan Head, 10-32 X 0.75
45	01021	Machine Screw, Pan Head, 10-32 X 0.50
46	A0659	Shoulder Bolt
47	01197	10-32 x 3/8 Scr Hx Soc BtHd
48	01159	Lock Nut, 7/16-20
49	809068327	Cap Screw, Hex Head, 7/16-20 X 2.00, Grade 5, Zinc Finish
