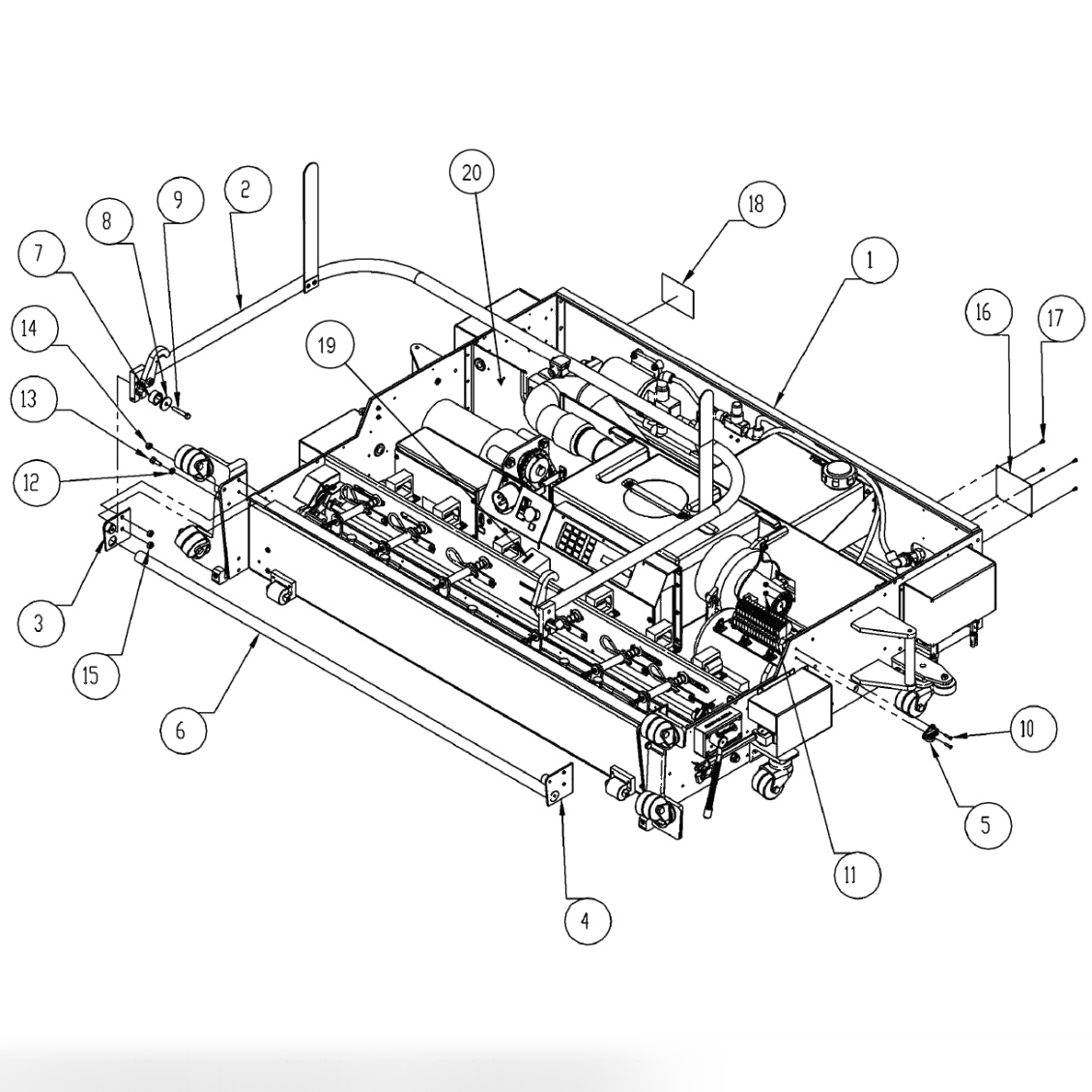

FINAL ASSEMBLY
| Позиция | Артикул | Наименование |
|---|---|---|
| 2 |
294002083
|
Handle Weldment |
| 3 |
294002028
|
Handle Pivot, Left |
| 4 |
294002029
|
Handle Pivot, Right |
| 5 |
A2037
|
Power Cable Hook |
| 6 |
B5012
|
Rear Plated Handle |
| 7 |
A0453
|
Handle Pivot Bushing |
| 8 |
A0444
|
Handle Pivot Washer |
| 9 |
01253
|
Cap Screw, Hex Head, 1/4-20 X 1.50, Grade 5 |
| 10 |
812027100
|
6-32 x 5/8 Screw PH Flat HD |
| 11 |
01416
|
Hex Lock Nut, 6-32 |
| - |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| 13 |
01046
|
Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish |
| 14 |
838549002
|
Hex Finish Nut, 1/4-20 |
| - |
835549002BG
|
Hex Finish Jam Nut, 1/4-20 (Bag of 10) |
| 16 |
A0580
|
Serial# Plate |
| 17 |
938523040
|
Blind (Pop) Rivet, 0.13 X 0.38, Zinc Finish |
| 18 |
A5574
|
Decal USA Flag |
| 19 |
294002224
|
Safety Interlock Switch (220V Only) |
| 20 |
294002507
|
Relay, 12VDC, 30 AMP |
