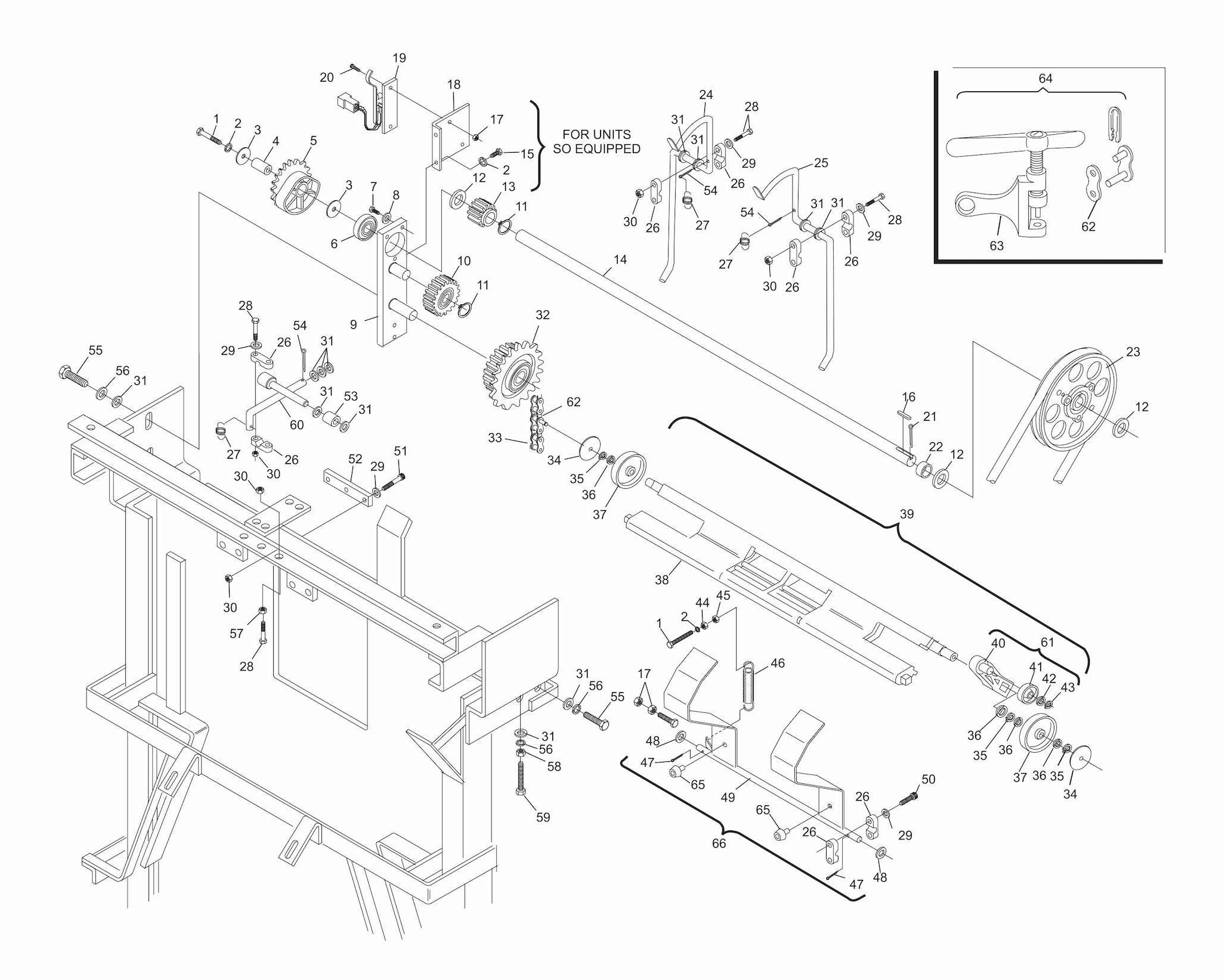

Elevator Drive-Lift Assembly
Позиции с кодом N.A.:
- 41 — N.A. — Nylon Track Wheel (small)
- 42 — N.A. — Flat Washer
- 43 — N.A. — Retaining Ring
- 44 — N.A. — Locknut
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
11-051007-001
|
Hex Hd. Cap Screw |
| 2 |
11-051769-001
|
Lockwasher |
| 3 |
11-052010-001
|
Flat Washer |
| 4 |
47-011240-004
|
Spacer |
| 5 |
47-010698-003
|
Toothed Wheel w/Cam |
| 6 |
11-430007-000
|
Bearing |
| 7 |
11-051001-001
|
Hex Hd. Cap Screw |
| 8 |
11-052022-001
|
Flat Washer |
| 9 |
47-011125-003
|
Bearing Plate Complete |
| 10 |
47-011050-004
|
Carrier Wheel w/Bearing Complete |
| 11 |
11-051852-001
|
Retaining Ring |
| 12 |
11-052053-001
|
Flat Washer |
| 12 |
47-861011-001
|
Flat Washer |
| 13 |
47-011045-004
|
Drive Gear |
| 14 |
47-011127-003
|
Drive Spindle |
| 15 |
11-051008-001
|
Hex Hd. Cap Screw |
| 16 |
11-053501-000
|
Key |
| 17 |
11-051741-001
|
Locknut |
| 18 |
47-011239-004
|
Switch Mounting Plate |
| 19 |
99-050229-004
|
Switch (Red Box only) |
| 20 |
11-052201-001
|
Sltd. Machine Screw |
| 21 |
11-054301-001
|
Hitch Pin |
| 21 |
47-861032-001
|
Hitch Pin |
| 22 |
47-011524-004
|
Spacer |
| 23 |
47-012411-003
|
Grooved Pulley |
| 24 |
47-011145-002
|
R.H. Pin Turn Lever |
| 25 |
47-011146-002
|
L.H. Pin Turn Lever |
| 26 |
46-030120-004
|
PVC Bearing |
| 27 |
47-011147-004
|
Tension Spring |
| 28 |
11-051002-001
|
Hex Hd. Cap Screw |
| 29 |
11-052005-001
|
Flat Washer |
| 30 |
11-051742-001
|
Locknut |
| 31 |
11-052003-001
|
Flat Washer |
| 32 |
47-011044-003
|
Chain Gear w/Toothed Wheel and Bearing Complete |
| 33 |
47-013788-004
|
5/8" Chain w/Shovel Pins Complete |
| 34 |
47-011241-004
|
Spacer Washer |
| 35 |
11-051851-001
|
Retaining Ring |
| 36 |
11-052001-001
|
Flat Washer |
| 36 |
47-861009-001
|
Flat Washer |
| 37 |
47-011047-004
|
Nylon Track Wheel (large) |
| 38 |
47-011049-001
|
Pin Shovel Only |
| 39 |
47-013532-000
|
Pin Shovel Complete |
| 39 |
47-013532-009
|
Pin Shovel Assembly |
| 40 |
47-011048-004
|
Pivoting Lever |
| 45 |
11-051702-001
|
Hex Nut |
| 46 |
46-050255-004
|
Spring |
| 47 |
11-051795-001
|
Cotter Pin |
| 48 |
11-052006-001
|
Flat Washer |
| 49 |
47-011133-003
|
Ejecting Flap |
| 50 |
11-051542-001
|
Socket Hd. Cap Screw |
| 51 |
11-051522-001
|
Socket Hd. Cap Screw |
| 52 |
47-010061-004
|
Rubber Plate |
| 53 |
47-010059-004
|
Nylon Bumper |
| 54 |
11-051793-001
|
Cotter Pin |
| 55 |
11-051015-001
|
Hex Hd. Cap Screw |
| 56 |
11-051770-001
|
Lockwasher |
| 57 |
11-051701-001
|
Hex Nut |
| 58 |
11-051704-001
|
Hex Nut |
| 59 |
11-051011-001
|
Hex Hd. Cap Screw |
| 60 |
47-010053-003
|
Cross Lever |
| 61 |
47-013533-009
|
Pivoting Lever Assembly |
| 62 |
47-013871-004
|
Master Link w/Long Pin |
| 62 |
11-600500-000
|
Master Link (3 pieces) |
| 63 |
47-013872-004
|
Chain Break Tool |
| 64 |
47-013873-004
|
Elevator Chain Repair Kit (includes 10 pins) |
| 65 |
11-053577-000
|
Rubber Bumper |
| 66 |
47-273835-009
|
Ejector Flap Rebuild Kit |
