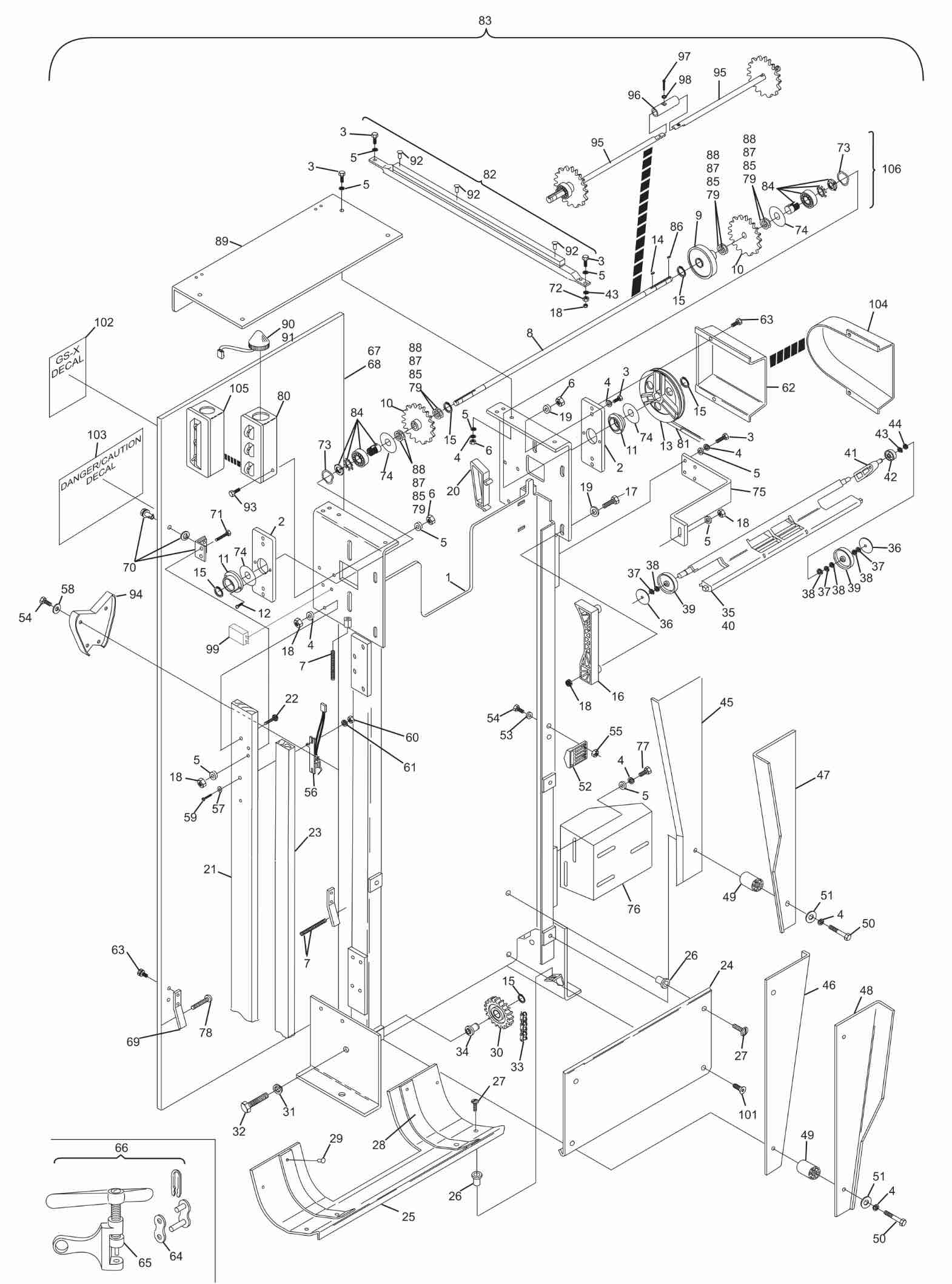

Elevator Assembly - Square Frame Hole Short Pit Machines Series 43 and Above
Позиции с кодом N.A.:
- 8 — N.A. — Drive Shaft
- 83 — N.A. — Elevator Assembly Complete
- 96 — N.A. — Split Shaft Coupler
| Поз. | Артикул | Фото | Наименование | Наличие |
|---|---|---|---|---|
| 1 |
47-013971-001
|
|
Elevator Frame Complete |
Предзаказ |
| 2 |
47-014016-003
|
|
Bearing Plate |
Предзаказ |
| 3 |
11-051010-001
|
|
Hex Hd. Cap Screw |
Предзаказ |
| 4 |
11-051770-001
|
|
Lockwasher |
Предзаказ |
| 5 |
11-052003-001
|
|
Flat Washer |
Предзаказ |
| 6 |
11-051704-001
|
|
Hex Nut |
Предзаказ |
| 7 |
11-054425-000
|
|
Slotted Set Screw |
Предзаказ |
| 9 |
47-014018-003
|
|
Shovel Guide Wheel |
Предзаказ |
| 10 |
47-013931-003
|
|
Upper Chain Sprocket |
Предзаказ |
| 11 |
47-014329-003
|
|
Flange |
Предзаказ |
| 12 |
11-054450-000
|
|
Self-Tapping Screw |
Предзаказ |
| 13 |
47-013956-003
|
|
V-Belt Pulley for 2560 or 2650 mm V-Belt |
Предзаказ |
| 14 |
11-053491-000
|
|
Key |
Предзаказ |
| 15 |
11-051852-001
|
|
Retaining Ring |
Предзаказ |
| 16 |
47-014017-003
|
|
Shovel Guide |
Предзаказ |
| 17 |
11-051053-001
|
|
Hex Hd. Machine Screw |
Предзаказ |
| 18 |
11-051744-001
|
|
Locknut |
Предзаказ |
| 19 |
11-052006-001
|
|
Flat Washer |
Предзаказ |
| 20 |
47-013951-003
|
|
Wedge Guide |
Предзаказ |
| 21 |
47-013954-003
|
|
Rear Wooden Chain Guide |
Предзаказ |
| 22 |
11-052615-001
|
|
Carriage Bolt |
Предзаказ |
| 23 |
47-013953-003
|
|
Front Wooden Chain Guide |
Предзаказ |
| 24 |
47-013913-002
|
|
Damper Guide |
Предзаказ |
| 25 |
47-013946-002
|
|
Lower Pan Guide |
Предзаказ |
| 26 |
11-135400-000
|
|
Well Nut |
Предзаказ |
| 27 |
11-051881-001
|
|
Slotted Machine Screw |
Предзаказ |
| 28 |
47-013912-004
|
|
Slide Band |
Предзаказ |
| 29 |
11-053678-000
|
|
Rivet |
Предзаказ |
| 30 |
47-011053-004
|
|
Sprocket |
Новый |
| 31 |
11-051772-001
|
|
Lockwasher |
Предзаказ |
| 32 |
11-051062-001
|
|
Hex Hd. Machine Screw |
Предзаказ |
| 33 |
47-014008-003
|
|
5/8” Chain w/Shovel Pins Complete |
Предзаказ |
| 34 |
47-011130-004
|
|
Bearing Bolt |
Предзаказ |
| 35 |
47-013532-009
|
|
Pin Shovel Assembly |
Предзаказ |
| 36 |
47-011241-004
|
|
Spacer Washer |
Предзаказ |
| 37 |
11-051851-001
|
|
Retaining Ring |
Предзаказ |
| 38 |
11-052001-001
|
|
Flat Washer |
Предзаказ |
| 38 |
47-861009-001
|
|
Flat Washer |
Предзаказ |
| 39 |
47-011047-004
|
|
Nylon Track Wheel (large) |
Предзаказ |
| 40 |
47-011049-001
|
|
Pin Shovel Only |
Предзаказ |
| 41 |
47-011048-004
|
|
Pivoting Lever |
Предзаказ |
| 42 |
47-011046-004
|
|
Small Nylon Track Wheel |
Предзаказ |
| 43 |
11-052018-001
|
|
Flat Washer |
Предзаказ |
| 44 |
11-051855-001
|
|
Retaining Ring |
Предзаказ |
| 45 |
47-013993-001
|
|
R.H. Rear Pin Deflector |
Предзаказ |
| 46 |
47-013994-001
|
|
L.H. Rear Pin Deflector |
Предзаказ |
| 47 |
47-013991-001
|
|
R.H. Front Pin Deflector |
Предзаказ |
| 48 |
47-013992-001
|
|
L.H. Front Pin Deflector |
Предзаказ |
| 49 |
47-014009-004
|
|
Spacer |
Предзаказ |
| 50 |
11-051075-001
|
|
Hex Hd. Machine Screw |
Предзаказ |
| 51 |
11-052031-001
|
|
Flat Washer |
Предзаказ |
| 52 |
47-014060-003
|
|
Ejector |
Предзаказ |
| 53 |
11-052008-001
|
|
Flat Washer |
Предзаказ |
| 54 |
11-051018-001
|
|
Hex Head Cap Screw |
Предзаказ |
| 55 |
11-051743-001
|
|
Locknut |
Предзаказ |
| 56 |
47-243027-004
|
|
Switch Complete (silver, consolidated and nexgen electronics box) |
Предзаказ |
| 57 |
99-050234-004
|
|
Switch Plate |
Предзаказ |
| 58 |
11-052037-001
|
|
Flat Washer |
Предзаказ |
| 59 |
11-052213-001
|
|
Slotted Machine Screw |
Предзаказ |
| 60 |
11-051741-001
|
|
Locknut |
Предзаказ |
| 61 |
11-052025-001
|
|
Flat Washer |
Предзаказ |
| 62 |
47-013949-001
|
|
Metal Pulley Guard - GS-92 |
Предзаказ |
| 63 |
11-054451-000
|
|
Self Tapping Screw |
Предзаказ |
| 64 |
47-013871-004
|
|
Master Link w/Long Pin |
Предзаказ |
| 64 |
11-600500-000
|
|
Master Link (3 pieces) |
Предзаказ |
| 65 |
47-013872-004
|
|
Chain Break Tool |
Предзаказ |
| 66 |
47-013873-004
|
|
Elevator Chain Repair Kit (includes 10 pins) |
Предзаказ |
| 68 |
47-013990-002
|
|
Elevator Rear Guard Assembly (GS-92 or GS-96) |
Предзаказ |
| 69 |
47-013652-004
|
|
Lower Pin Plate |
Предзаказ |
| 70 |
47-013952-004
|
|
Quick Lock Assembly (includes Fastener,Retainer and Bracket) |
Предзаказ |
| 71 |
11-051026-001
|
|
Hex Hd. Machine Screw |
Предзаказ |
| 72 |
11-051703-001
|
|
Hex Nut |
Предзаказ |
| 73 |
47-014331-004
|
|
Spring Shim Washer |
Предзаказ |
| 74 |
47-014327-004
|
|
Seal (Washer) |
Предзаказ |
| 75 |
47-014354-003
|
|
Elevator Z-Bracket w/o Rubber Mount |
Предзаказ |
| 76 |
47-024036-002
|
|
Mounting Bracket |
Предзаказ |
| 77 |
11-051038-001
|
|
Hex Hd. Cap Screw |
Предзаказ |
| 78 |
11-051883-001
|
|
Slotted Truss Hd. Machine Screw |
Предзаказ |
| 79 |
11-052053-001
|
|
Flat Washer |
Предзаказ |
| 79 |
47-861011-007
|
|
Flat Washer |
Предзаказ |
| 80 |
47-245422-003
|
|
Mechanic’s Remote Box w/ Cable (Nexgen Electronics) |
Предзаказ |
| 81 |
11-053905-000
|
|
V-Belt |
Предзаказ |
| 82 |
47-084015-003
|
|
Cable Channel Support Assembly |
Предзаказ |
| 84 |
11-050150-000
|
|
Cone Bearing Assembly |
Предзаказ |
| 85 |
11-054105-001
|
|
Shim Washer |
Предзаказ |
| 86 |
11-053501-000
|
|
Key |
Предзаказ |
| 87 |
11-052057-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 88 |
11-054106-001
|
|
Flat Washer |
Предзаказ |
| 88 |
47-861031-001
|
|
Flat Washer |
Предзаказ |
| 89 |
47-014770-002
|
|
Guard |
Предзаказ |
| 90 |
47-014687-004
|
|
Trouble Light Assembly w/o Bracket |
Предзаказ |
| 91 |
47-223170-000
|
|
Bulb Only |
Предзаказ |
| 92 |
11-053660-000
|
|
Rivet |
Предзаказ |
| 92 |
47-861025-000
|
|
Blind Rivet |
Предзаказ |
| 93 |
11-054452-000
|
|
Hex Hd. Machine Screw |
Предзаказ |
| 94 |
47-014761-003
|
|
Centering Guide (upper) |
Предзаказ |
| 95 |
47-014756-003
|
|
Split Shaft Assembly |
Предзаказ |
| 95 |
47-015068-003
|
|
Shaft Assembly Complete (GS-96 and above) |
Предзаказ |
| 97 |
11-051526-001
|
|
Socket Hd. Cap Screw |
Предзаказ |
| 98 |
11-051769-001
|
|
Lockwasher |
Предзаказ |
| 99 |
47-225160-004
|
|
Frame Counter |
Предзаказ |
| 99 |
47-225160-009
|
|
Frame Counter w/Cable |
Предзаказ |
| 100 |
47-862803-000
|
|
Chain Lube (spray can) |
Предзаказ |
| 100 |
G34-205116-000
|
|
Pinsetter Chain Lube (12 oz. can) |
Предзаказ |
| 101 |
11-052928-001
|
|
Flat Hd. Socket Screw |
Предзаказ |
| 102 |
47-085081-004
|
|
GS-X Label |
Предзаказ |
| 103 |
47-085579-003
|
|
Danger/Warning Label |
Предзаказ |
| 104 |
47-014974-003
|
|
Pulley Guard GS-96 and Above Plastic |
Предзаказ |
| 105 |
47-243071-004
|
|
Mechanic’s Remote Box w/Cable (Consolidated) |
Предзаказ |
| 105 |
47-243071-000
|
|
Rear Control Box |
Предзаказ |
| 106 |
47-014766-009
|
|
Elevator Shaft Kit (square frame hole, two pieces) |
Предзаказ |
| 107 |
47-0135533-009
|
|
Pivoting Lever Assembly |
Предзаказ |
