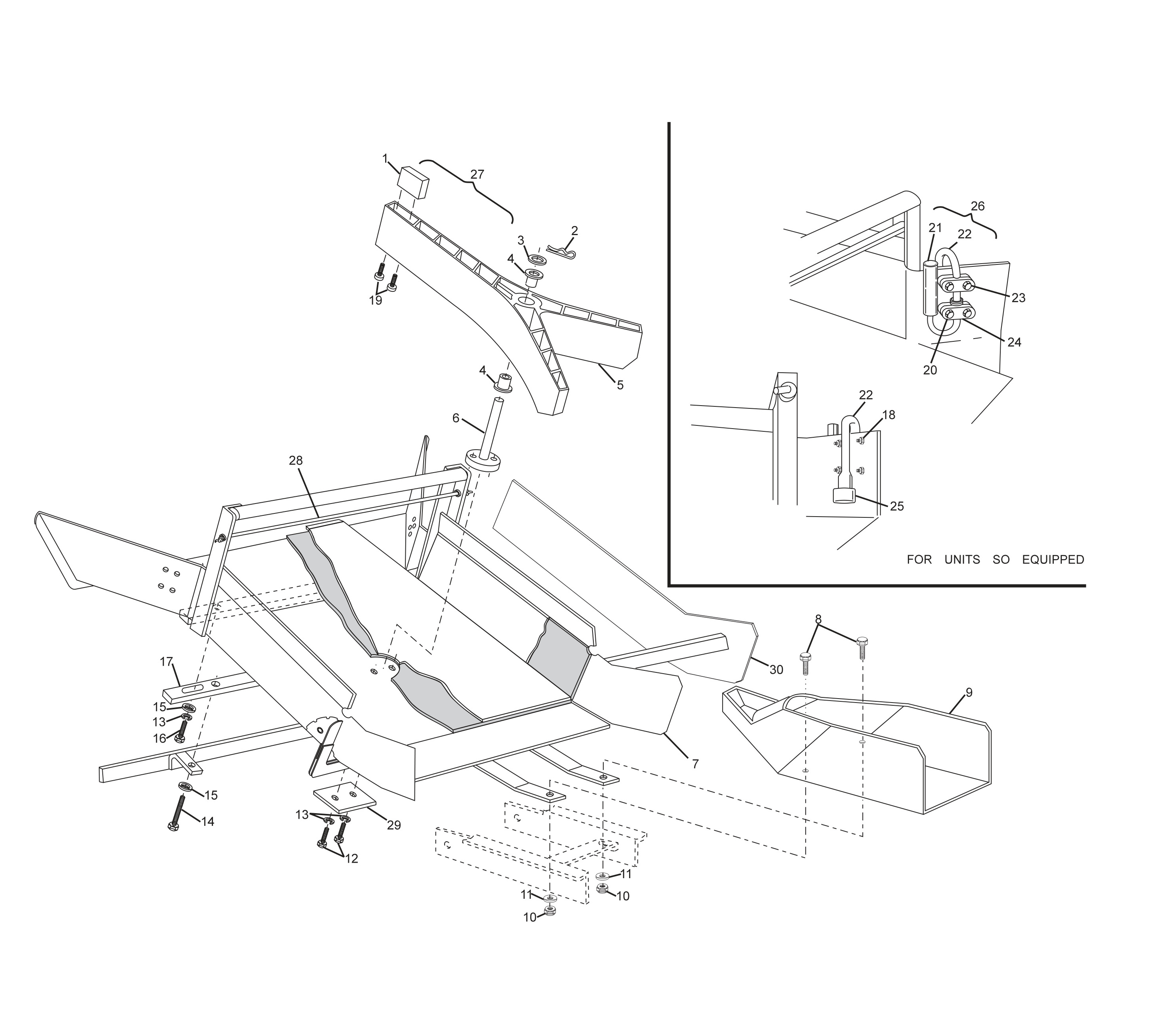

Dual Feed Pin Chute Assembly
Позиции с кодом N.A.:
- 21 — N.A. — Plastic Tube
- 27 — N.A. — "Y" Switch Assembly Complete
- 30 — N.A. — R.H. Pin Chute Repair Plate (ten pin side)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-012272-004
|
Counter Weight |
| 2 |
11-054301-001
|
Hitch Pin |
| 2 |
47-861032-001
|
Hitch Pin |
| 3 |
11-052024-001
|
Flat Washer |
| 3 |
47-861010-001
|
Flat Washer |
| 4 |
47-012273-004
|
Bushing |
| 5 |
47-012215-001
|
"Y" Switch |
| 6 |
47-012596-000
|
Flipper Shaft |
| 7 |
47-012628-000
|
Dual Feed Pin Chute w/o "Y" Switch & Deflector Shoe (nose block) |
| 8 |
11-051015-001
|
Hex Hd. Cap Screw |
| 9 |
47-012263-001
|
Deflector Shoe |
| 10 |
11-051744-001
|
Locknut |
| 11 |
11-052003-001
|
Flat Washer |
| 12 |
11-051019-001
|
Hex Hd. Cap Screw |
| 13 |
11-051771-001
|
Lockwasher |
| 14 |
11-051057-001
|
Hex Hd. Cap Screw |
| 15 |
11-052018-001
|
Flat Washer |
| 16 |
11-051005-001
|
Hex Hd. Cap Screw |
| 17 |
47-012260-003
|
Cross Brace |
| 18 |
11-051742-001
|
Locknut |
| 19 |
11-051514-001
|
Socket Hd. Cap Screw |
| 20 |
11-051004-001
|
Hex Hd. Cap Screw |
| 20 |
47-861001-001
|
Hex Hd. Cap Screw |
| 22 |
47-013639-003
|
L.H. Stopper Arm |
| 22 |
47-013640-003
|
R.H. Stopper Arm (shown) |
| 23 |
11-051002-001
|
Hex Hd. Cap Screw |
| 24 |
46-030120-004
|
PVC Bearing |
| 25 |
47-013742-004
|
Plastic Ring |
| 26 |
47-013599-004
|
L.H. Flipper Stopper Assembly Complete |
| 26 |
47-013600-004
|
R.H. Flipper Stopper Assembly Complete |
| 28 |
11-053583-000
|
Rubber Cord |
| 29 |
47-012255-004
|
Dual Feed Pin Chute Plate |
| 30 |
47-012621-000
|
L.H. Pin Chute Repair Plate (seven pin side) |
