QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Front End Sweep Sweep Arm Assembly

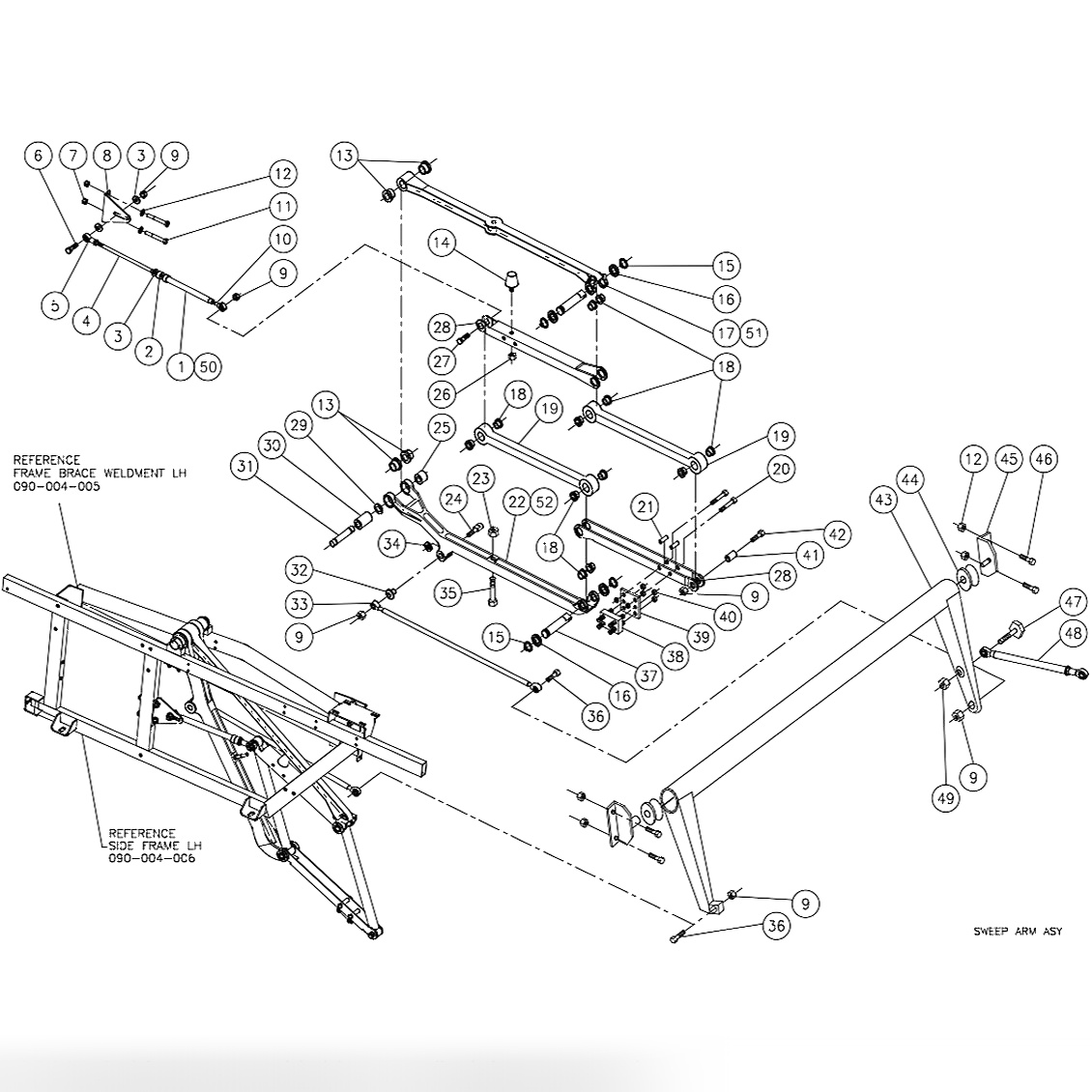

Sweep Arm Assembly

Позиция	Артикул	Наименование
1	070007278	Tube Weldment
2	070007283	Bumper - Link Assembly
3	949100002BG	Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
4	070007276	Rod Link Assembly
5	090005257	7/16 Rod End RH
6	809869245BG	Cap Screw, Hex Head, 7/16-14 X 1.50 (Bag of 10)
7	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
8	090006128	Sweep Link Bracket
9	838369002	Hex Lock Nut, 7/16-14, Center Punch
10	090006138	Rod End, 7/16 - 20 X .5
11	809865445BG	Cap Screw, Hex Head, 3/8-16 X 2.75 (Bag of 10)
12	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
13	000023104	Flange Bushing, 1.25 X 1.50 X 0.95
14	090006137	Bumper
15	919005600BG	Snap (External) Ring, #5100-62 5/8" (Bag of 10)
16	070006121BG	Distributor Clutch Assembly Flat Washer (Bag of 10)
17	090006139	Stabilizer Link Assembly
18	000023114BG	Flange Bushing, 0.63 X 0.81 X 0.06 (Bag of 10)
19	090006133	Middle Link, Steel
20	809857365	Cap Screw, Hex Head, 5/16-18 X 2.25
21	090006125	Lower Steel Sweep Spacer, Female
22	070003158	Drive Link - Sweep
23	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
24	090006134	Drive Link Pin
25	070003233	Main Pivot Spacer, Short
26	839057002BG	Hex Lock Nut, 5/16-18, Zinc Finish (Bag of 10)
27	809869405BG	Cap Screw, Hex Head, 7/16-14 X 2.50, Right Hand (Bag of 10)
28	090006132	Steel Sweep Link, Upper and Lower
29	070011819	Shim, Table and Sweep TRQ TBS Flat Washer 1.29 X 1.88 X 0.03
30	070003232	Main Pivot Spacer, Long
31	070003106	Main Pivot Shaft
32	090006135	Drive Link Bushing/Spacer
33	090005254	Drive Link Connecting Rod
34	070003117	Drive Link Spacer
35	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
36	809869365BG	Cap Screw, Hex Head, 7/16-14 X 2.25 (Bag of 10)
37	090006126	Pin, Steel Sweep Linkage
38	090006136	Shock Mount
39	090006131	Sweep Shock Mount Plate
40	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
41	090006127	Steel Sweep Link Sleeve
42	809869325BG	Cap Screw, Hex Head, 7/16-14 X 2.00 (Bag of 10)
43	088002232	Sweep Rocker Arm Assembly
44	090005015	Torque Tube Bearing
45	090004007	Torque Tube Hanger Assembly
46	809865205BG	Cap Screw, Hex Head, 3/8-16 X 1.25 (Bag of 10)
47	070003245	Cap Screw, Hex Head, 1/2-13 X 2.84
48	088001353	Tie Rod Assembly
49	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
50	090006145	Sweep Link Slide Assembly
52	090006140	Drive Link Assembly
