QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Front End Components Table Drive Assembly

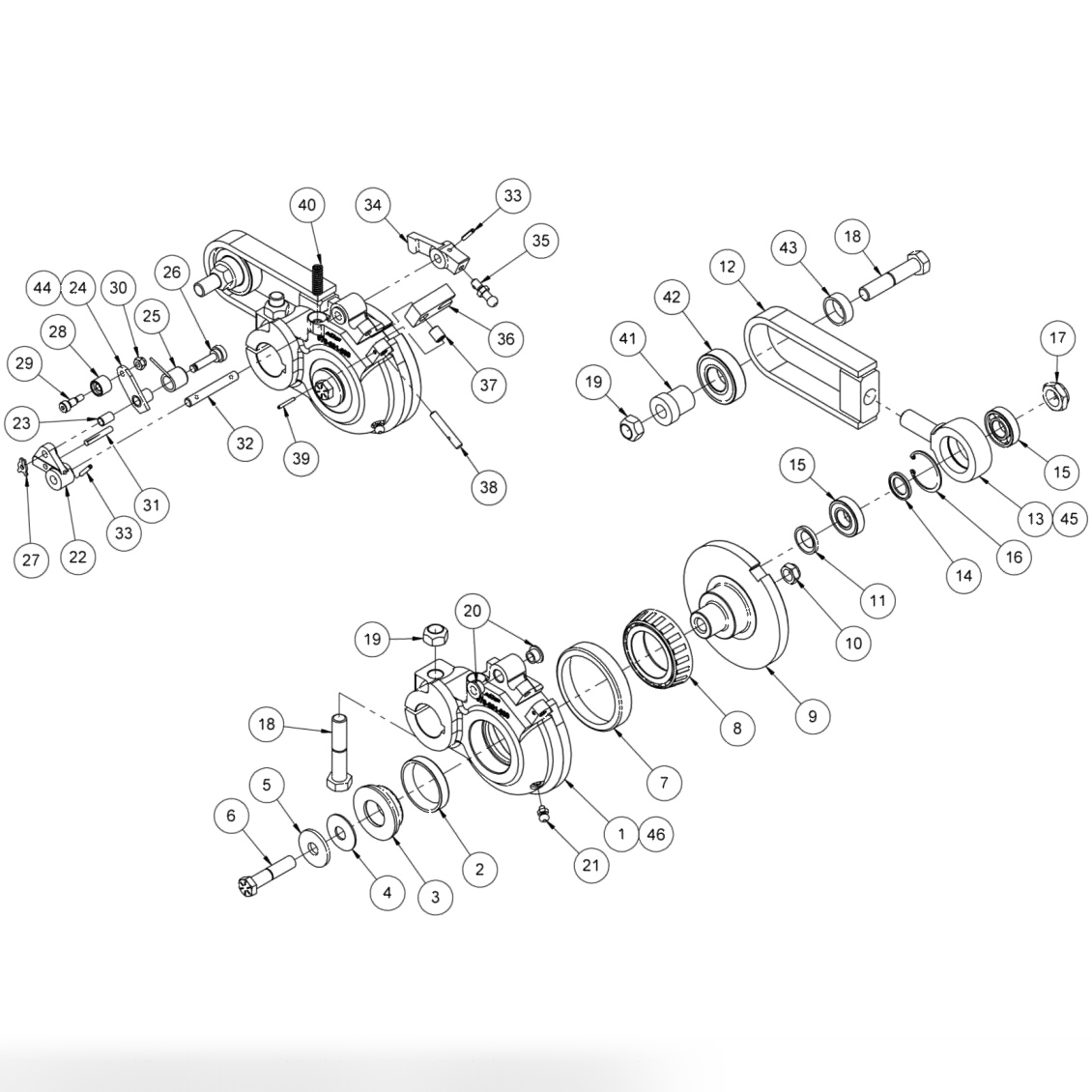

Table Drive Assembly

Позиция	Артикул	Наименование
2	070002780	Roller Bearing Cup
3	070002824	Cone and Seal Bearing Assembly
4	070006729	Belleville (Disc Spring) Washer 7/16
5	949071227	Flat Washer 0.47 X 1.38 X 0.12, Zinc Finish
6	809870325BG	Cap Screw, Hex Head, 7/16-20 X 2.00 (Bag of 10)
7	070002777	Bearing Cup
8	070002776	Table Drive Roller Bearing
9	090005549	Table Drive Eccentric
10	840070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)
11	070001849	Flat Washer 0.63 X 1.00 X 0.13, Black Oxide Finish , SP
12	070007755	Yoke Weldment
14	000021878	Spacer
15	000021881	Clevis Rod End Ball Bearing, Single Seal
16	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)
17	840182002BG	Hex Lock Nut (Bag of 10)
18	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)
19	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
20	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)
21	710501004	Grease Fitting
22	070008322	Link Actuator Assembly
23	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)
25	070001931	Spring Table Drive
26	070001932	Pin Actuator Assembly
27	963300002BG	X-Washer, 5/32", 9000-10 (Bag of 10)
28	070001857BG	Roller Bearing, Nylon Finish (Bag of 2)
29	880139120BG	Shoulder Bolt, Socket Head, 1/4 X 0.38 (Bag of 10)
30	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)
31	912137200BG	Groove Pin, 3/16 X 1-1/4, T3 (Bag of 10)
32	070008325	Pin Actuator Assembly
33	913423120BG	Spring Pin, 1/8 X 3/4 (Bag of 10)
34	070008321	Latch Arm Assembly (1/8" Spring Pin Hole)
35	070001893	Cam Ball Assembly
36	070001898	Latch Assembly
37	900104071BG	Bearing Sleeve, 0.25 X 0.44 (Bag of 5)
38	070001894	Special Pin (Custom)
39	913415120BG	Spring Pin, 3/32 X 3/4 (Bag of 10)
40	070001917BG	Compression Spring (Bag of 5)
41	070007310	Flange Bushing, 0.50 X 0.88 X 1.20
42	190001490	Ball Bearing, 0.87 X 1.88 X 0.50
43	070007311	Sleeve, Table Drive Assembly
44	070007250	Link Assembly
45	000021880	Rod End Assembly
46	070002778	Crank Housing and Cup Assembly
-	088001545	EDGE Drive Pulley
-	785005005	Lube Gun Alemite 4039
