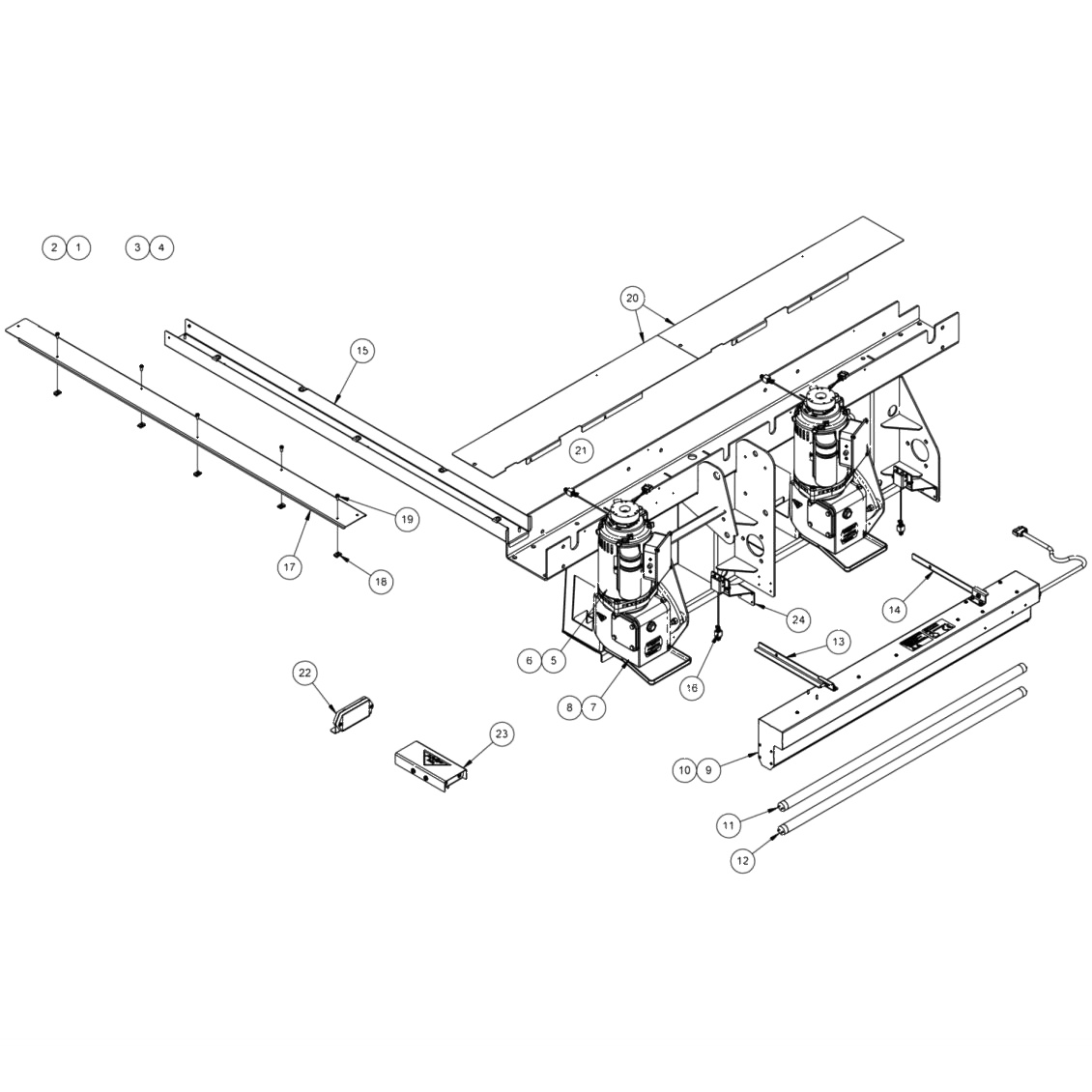

Front End Electrical Installation Assembly

Позиция	Артикул	Наименование
1	088500238	Even Machine Power Cable
2	088500239-01	Odd Machine Power Cable
3	088000242	Even Machine Logic Cable
4	088000243	Odd Machine Logic Cable
5	088000145	Front End Motor Assembly, 50Hz
6	088000146	Front End Motor Assembly, 60Hz
7	088004609BX	FE Gearbox, 50Hz, Boxed
8	088004604BX	Front End Gearbox, 60Hz, Boxed
9	088000401	Dual Pit Light Assembly, CE
10	088000400	Dual Pit Light Assembly, Domestic
11	751001471	Bulb, Daylight, 36", F25t8
12	751001460	Bulb, Blacklight, 36", F30t8
13	070001907	Pit Light Mounting Bracket, Right Hand (10 Pin)
14	070001908	Pit Light Mounting Bracket, Left Hand (7 Pin Side)
15	088200477	Cable Duct Assembly, Wide
16	088000022	Encoder/Home Sensor Assembly
17	088500226	Cable Duct Cover, Wide
18	724511074	Speed Nut, 10-32, Tinnerman
19	818240082	Machine Screw, Pan Head, Phillips Drive, 10-32 X 0.50
20	088500225	Crossbeam Cover
21	090005876	Motor Cable, Small Plug
22	610088092	Reflector Kit
23	088000500	Ball Detector Assembly
24	088000107	Home Assembly
-	088000016	Ball Lift Signal Cable
-	088000034	Handheld Run Cable
-	088000102CE	Technicians Handheld Unit
-	088001289	XLi Reflector Bracket
-	088000122	Ball Detect Reflector Bracket
-	088000209	Term Crimp Female, Bg/10
-	088001286-01	Front End Motor Brake 90XLi Reach
-	088200533	Foul Interface Assembly NON-XLi
-	088000102-01	Technician's Hand-Held Unit (THU)
-	088000116-01	XLi Front End Motor 60Hz
-	088001286-02	FE MOTOR BRAKE, EDGE FF
-	715021717	Gearbox Oil SHC634
