QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Electrical Dual Pit Light Assembly

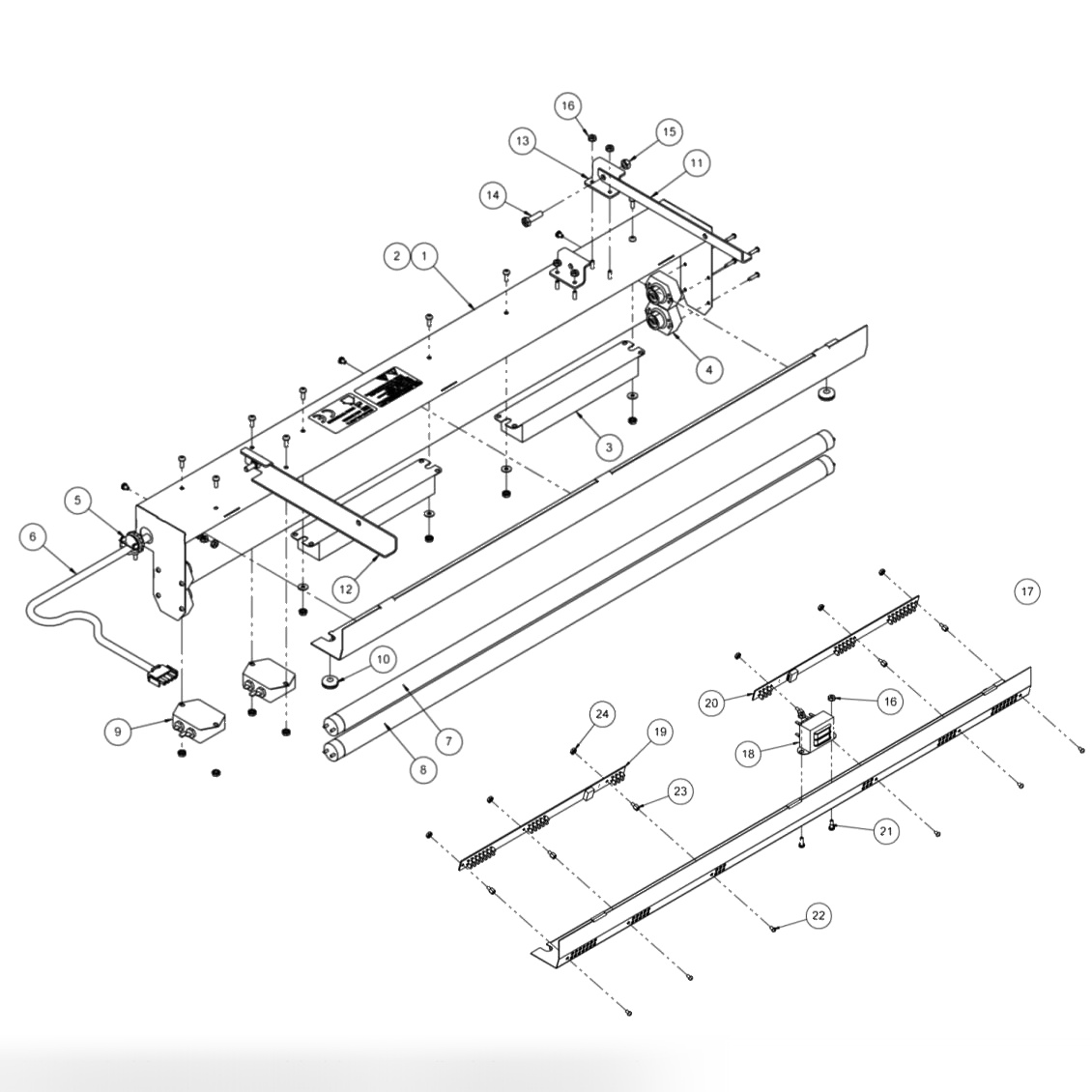

Dual Pit Light Assembly

Позиция	Артикул	Наименование
1	088000400	Dual Pit Light Assembly, Domestic
2	088000401	Dual Pit Light Assembly, CE
3	740501018	Ballast, Universal 115-277v
4	751002159	Fluorescent Bulb Socket
5	744107053	Cable Clamp
7	751001471	Bulb, Daylight, 36", F25t8
8	751001460	Bulb, Blacklight, 36", F30t8
10	711520017	Push-In Grommet, 0.88 X 0.19, Rubber, Strn Relief
11	070001907	Pit Light Mounting Bracket, Right Hand (10 Pin)
12	070001908	Pit Light Mounting Bracket, Left Hand (7 Pin Side)
13	090008043	Dual Pitlight Mounting Bracket
14	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)
15	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
16	843133002BG	Keps Nut, 8-32 (Bag of 10)
17	088000402	Infrared LED Assembly
21	818233082BG	Machine Screw, Rnd Head, 8-32 X 0.50 Sems Bg/10
22	7016410632025BG	Machine Screw, Round Head, 6-32 X 0.25 (Bag of 10)
24	843127002BG	Keps Nut, 6-32 (Bag of 10)
-	275002013	Universal Pit Light Interface Assembly
-	275002016	Universal Interface Control Cable
-	612270004	CP Deck Light PSP Interface
