QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Electrical Chassis & Mounting Bracket Assembly

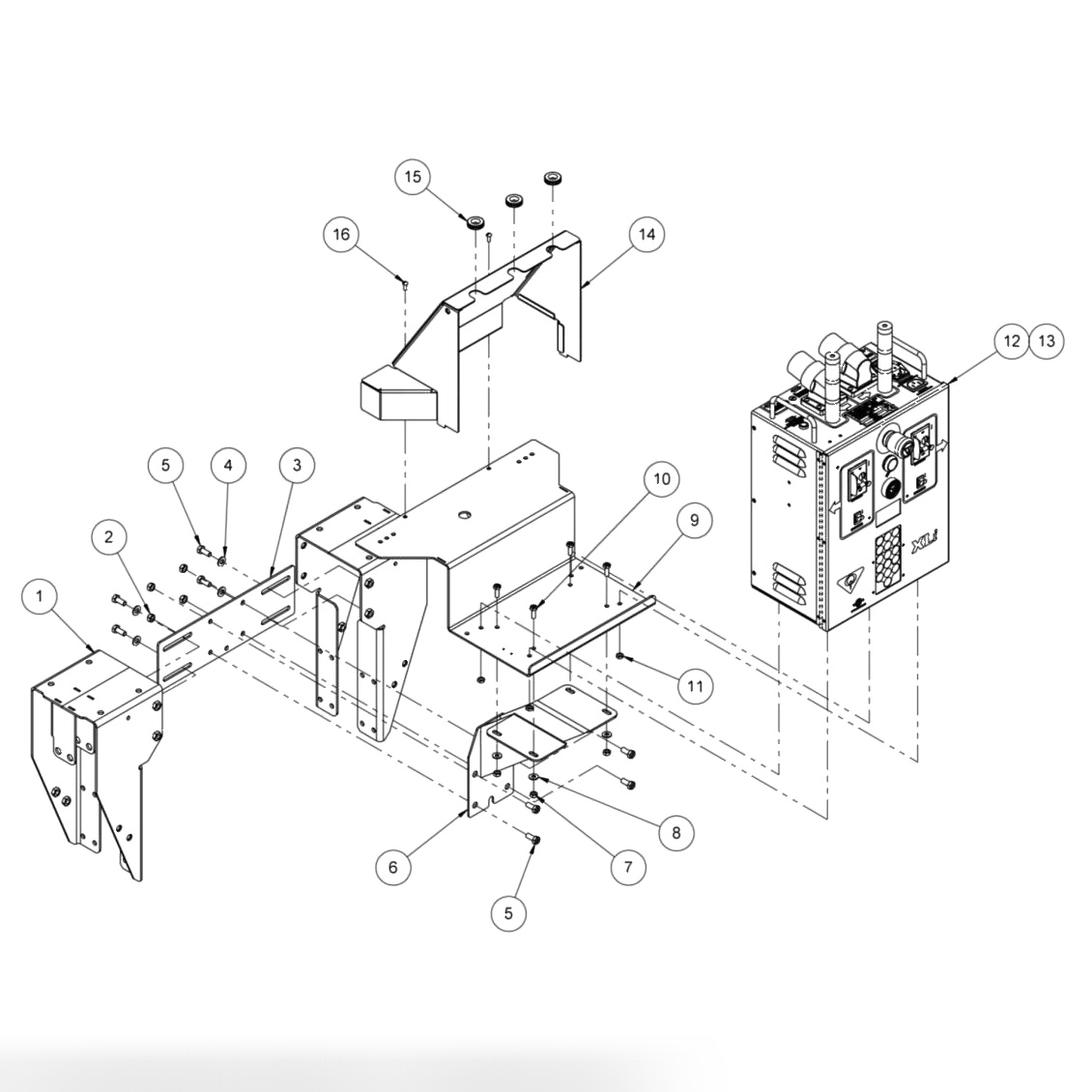

Chassis & Mounting Bracket Assembly

Позиция	Артикул	Наименование
1	088001800	Back End Motor Mount Weldment
2	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
3	088001804	Back End EDGE Tie Plate
4	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
5	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
7	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
8	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
9	088200486	Controller Mounting Weldment
10	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
11	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
12	088000001-03	XLi Chassis with Brake Fuse
13	088400001-01	XLi Chassis for SmartGuard
14	088200568	Chassis cover assembly, wide
15	711520012	Grommet, 0.63 X 0.88 X 0.06
16	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
-	051000025	Power Inlet, 3 POLE, 220V
-	088000001-02-R	Rebuilt XLi Chassis, Without Camera Power
-	088000001-02CE-R	Rebuilt Xli Chassis CE
-	088000013	PCA CPU Board Assembly
-	088000019	Switch membrane, keypad
-	088000152	Logic power fuse, 3A, 250v
-	088000197	LED Mask Signal Cable
-	770046247	Power In 6A C-13
-	088200532	Cable XLi Foul Input
-	088200533	Foul Interface Assembly NON-XLi
-	090005706	Logic Power Cable
-	090005794	Terminator Cable
-	088501792	Weldment, Nut Plate, Guard, LBS
-	743511038	XLi Chassis Circuit Breaker
-	755504079	Relay 24VDC Din Rail
-	759518131	Reset Switch
-	770046211	Power Supply 45W
