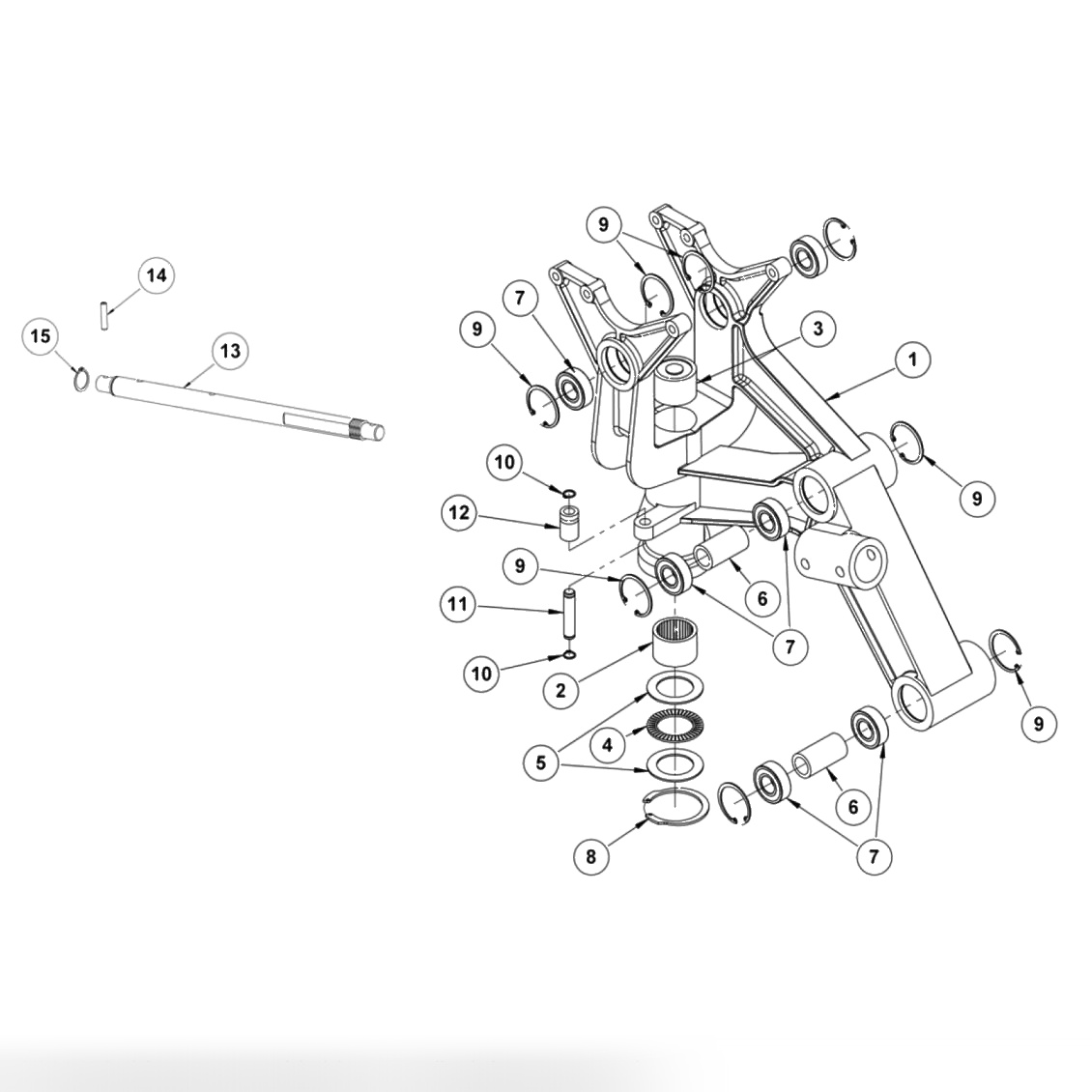

Main Casting & Shaft Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
070006136
|
Casting and Bearing Assembly |
| 2 |
070006076
|
Roller Bearing, Open End, 1.00 |
| 3 |
070006075
|
Roller Bearing, Closed End, 1.00 |
| 4 |
070006074
|
Roller Bearing, Thrust, 1.25 X 1.91 |
| 5 |
070006073
|
Thrust Washer |
| 6 |
070006064
|
Spacer Bearing Distributor Assembly |
| 7 |
000024679
|
Ball Bearing, Double Seal, 0.625 X 1.375 |
| 8 |
919004200BG
|
Snap (External) Ring, #5008-212 Bg/10 |
| 9 |
919000600BG
|
Snap (Internal) Ring, #5000-137 (Bag of 10) |
| 10 |
919005300BG
|
Snap (External) Ring, #5100-37 (Bag of 10) |
| 11 |
070006082
|
Spring Post Pin |
| 12 |
000026081
|
Spring Post Sleeve |
| 13 |
070006077
|
Drive Shaft - Distributor |
| 14 |
913437140BG
|
Spring Pin, 3/16 X 7/8 (Bag of 10) |
| 15 |
919005600BG
|
Snap (External) Ring, #5100-62 5/8" (Bag of 10) |
| - |
088000156
|
Distributor Drive Pin ASM |
