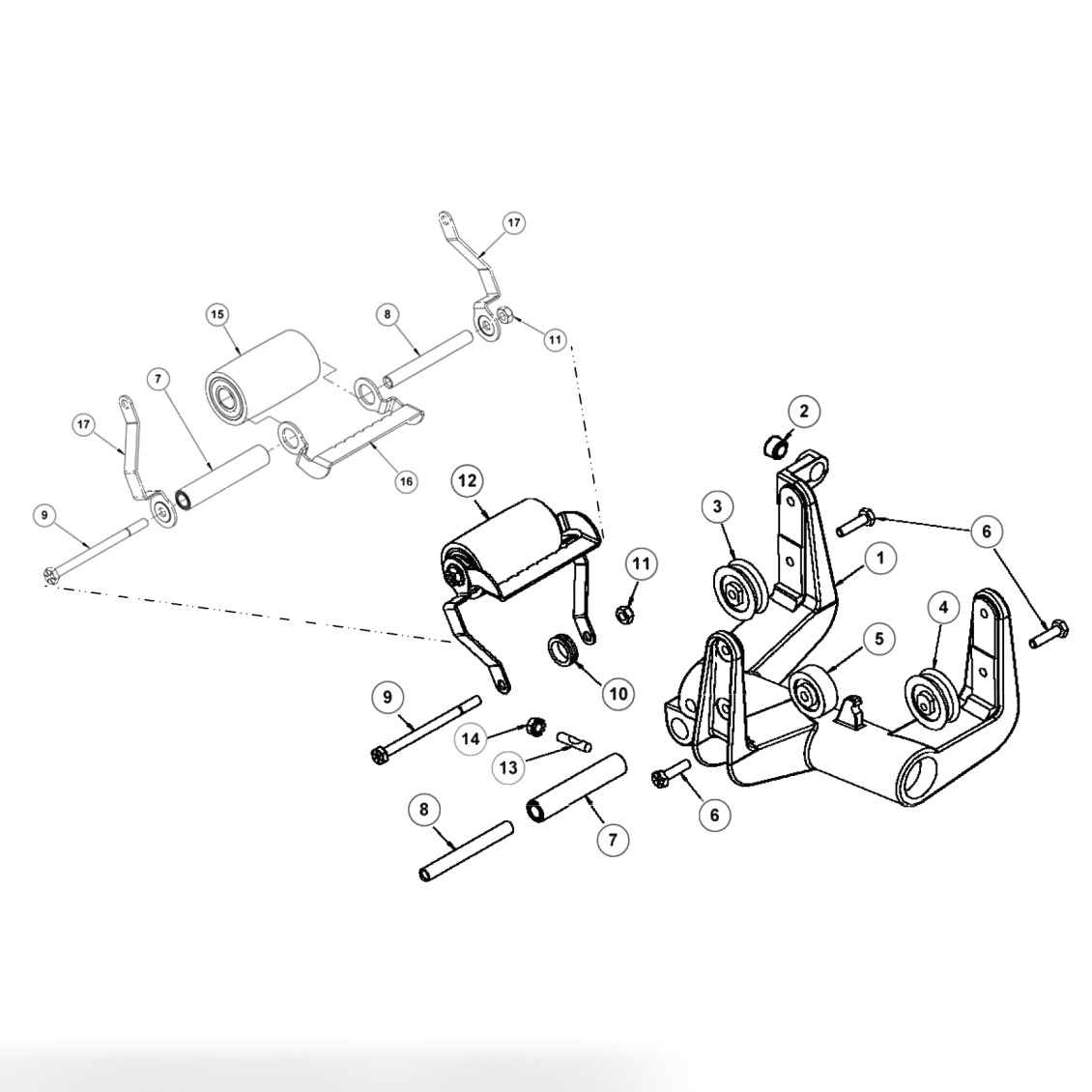

Front Support Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
070006688
|
Carriage Support Casting Assembly |
| 2 |
701710098
|
Spyralign Bearing |
| 3 |
070006117
|
Concentric, Distributor Bearing, Deep Groove |
| 4 |
070006118
|
Eccentric, Distributor Bearing, Deep Groove |
| 5 |
701849124
|
Ball Bearing, Threaded Bore |
| 6 |
809849165BG
|
Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10) |
| 7 |
070006105
|
Tube Assembly |
| 8 |
070006108
|
Spacer |
| 9 |
809849605BG
|
Cap Screw, Hex Head, 1/4-20 X 3.75 (Bag of 10) |
| 10 |
070006111
|
Spring Post Sleeve |
| 11 |
844049002BG
|
Hex Lock Nut, 1/4-20 (Bag of 10) |
| 12 |
070006109
|
Link - Roller Assembly - Distributor |
| 13 |
070006116
|
Stud Clamp - Carriage |
| 14 |
843149002BG
|
Keps Nut, 1/4-20 (Bag of 10) |
| 15 |
070006011
|
Pulley Assembly |
| 16 |
070006106
|
Tracking Bracket - Distributor |
