QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Distributor Clutch & Drive Arm Assemblies

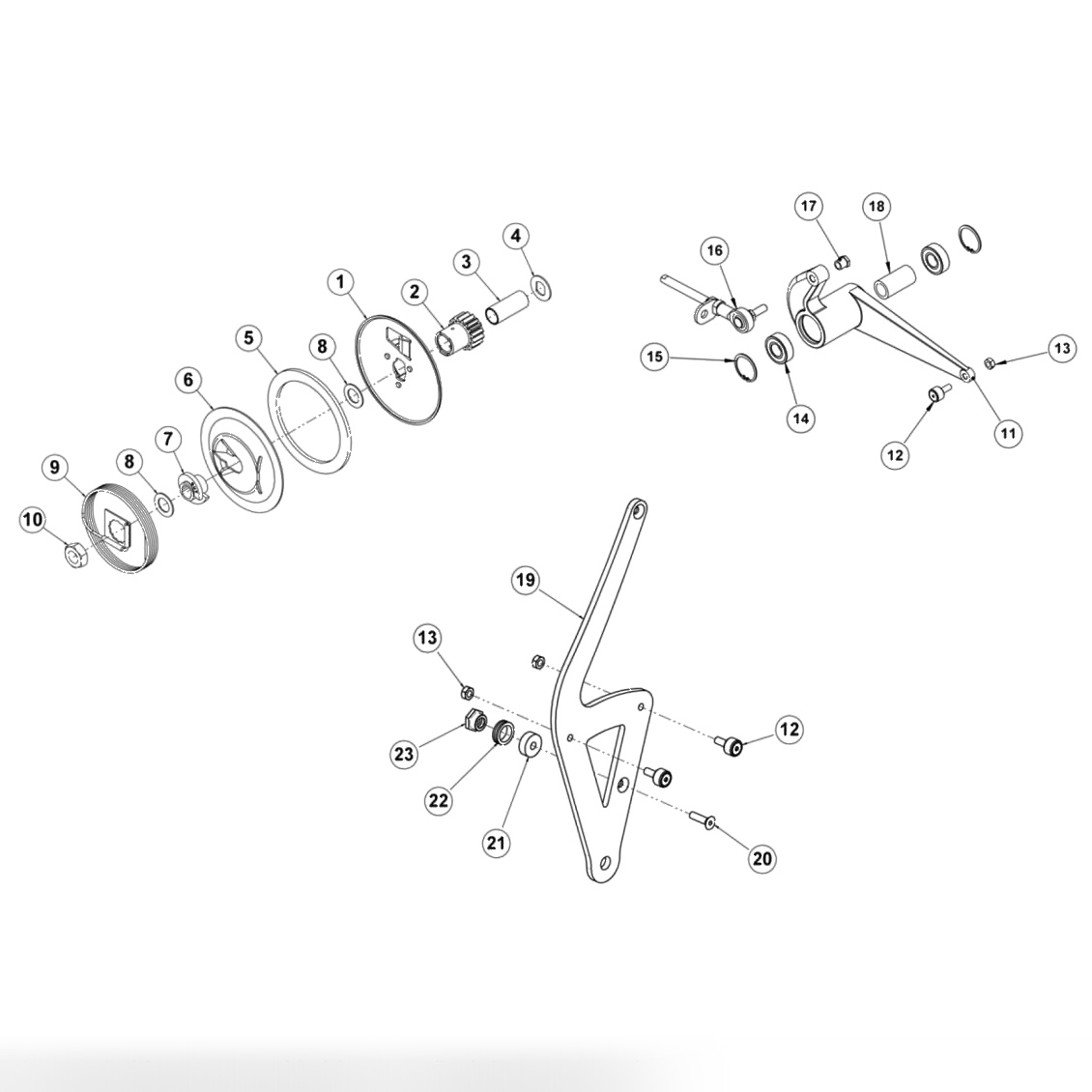

Clutch & Drive Arm Assemblies

Позиция	Артикул	Наименование
1	070006692	Clutch Plate Assembly
2	070006686	Pinion Gear Assembly
3	070006676	Sleeve and Bushing - Pinion (Sleeve)
4	088005119	Distributor II Thrust Washer
5	070006126	Friction Disc
6	070006130	Clutch Plate
7	070006125	Worm - Distributor Clutch
8	070006121BG	Distributor Clutch Assembly Flat Washer (Bag of 10)
9	070006128	Spring Assembly - Distributor Drive
10	835582002	Hex Finish Jam Nut, 5/8-18
11	070006052	Drive Arm
12	070006071	Cam Follower
13	844050002BG	Hex Lock Nut, 1/4-28 (Bag of 10)
14	000024679	Ball Bearing, Double Seal, 0.625 X 1.375
15	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)
16	090005262	Rod Link Assembly
16	090005267	Rod End 3/8 Female RH
17	070006069	Hex Flange Nut
18	070006064	Spacer Bearing Distributor Assembly
19	088005115	Distributor Cam Tele-Arm
20	808849160BG	Cap Screw, Flat Head, 1/4-20 X 1.00 Bg/10
21	088005118	Spacer, Cam II Spring Post
22	070006111	Spring Post Sleeve
23	000022173	Hex Flange Nut, Roller Drive Assembly
-	070009890	Simplified Clutch Assembly
-	070009893	Bearing Clutch Pinion
