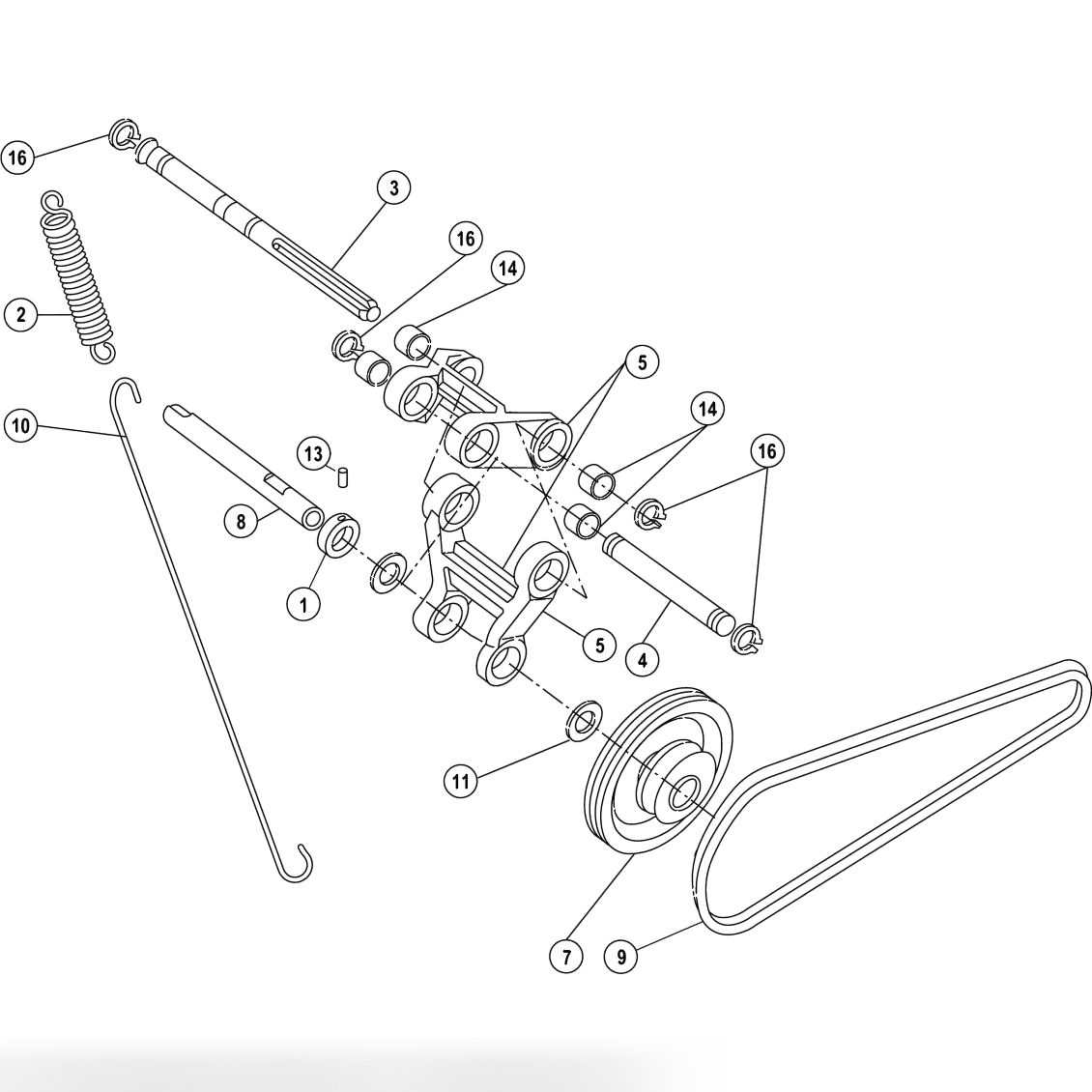

PBL Belt Tensioner Assembly (OLD STYLE)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
000021423
|
Collar, 5/8" |
| 2 |
000026031
|
Tension Spring, Distributor Belt |
| 3 |
000029605
|
Pivot Shaft |
| 4 |
000029606
|
Short PBL Pivot Shaft |
| 5 |
000029659
|
Arm, Hanger Assembly |
| 6 |
070011109
|
Spring Clip (Not Shown) |
| 7 |
070011131
|
Pulley-Weldment |
| 8 |
070011133
|
Shaft |
| 9 |
070011148
|
V-Belt - PBL |
| 11 |
701320045BG
|
Roller Bearing, Thrust, 0.62 X 1.00 (Bag of 10) |
| 12 |
807257060BG
|
Set Screw Cup Point, 5/16-18 X 0.38 (Bag of 10) |
| 13 |
807357040BG
|
Set Screw, Socket Head, 5/16-18 X 0.25 Bg/10 |
| 14 |
900110081BG
|
Bearing Sleeve, 0.63 X 0.88 X 0.50 (Bag of 5) |
| 15 |
900210101BG
|
Flange Bushing, 0.63 X 0.63 (Bag of 5) |
| 16 |
919005600BG
|
Snap (External) Ring, #5100-62 5/8" (Bag of 10) |
