QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Back End Cushion Assembly - Odd

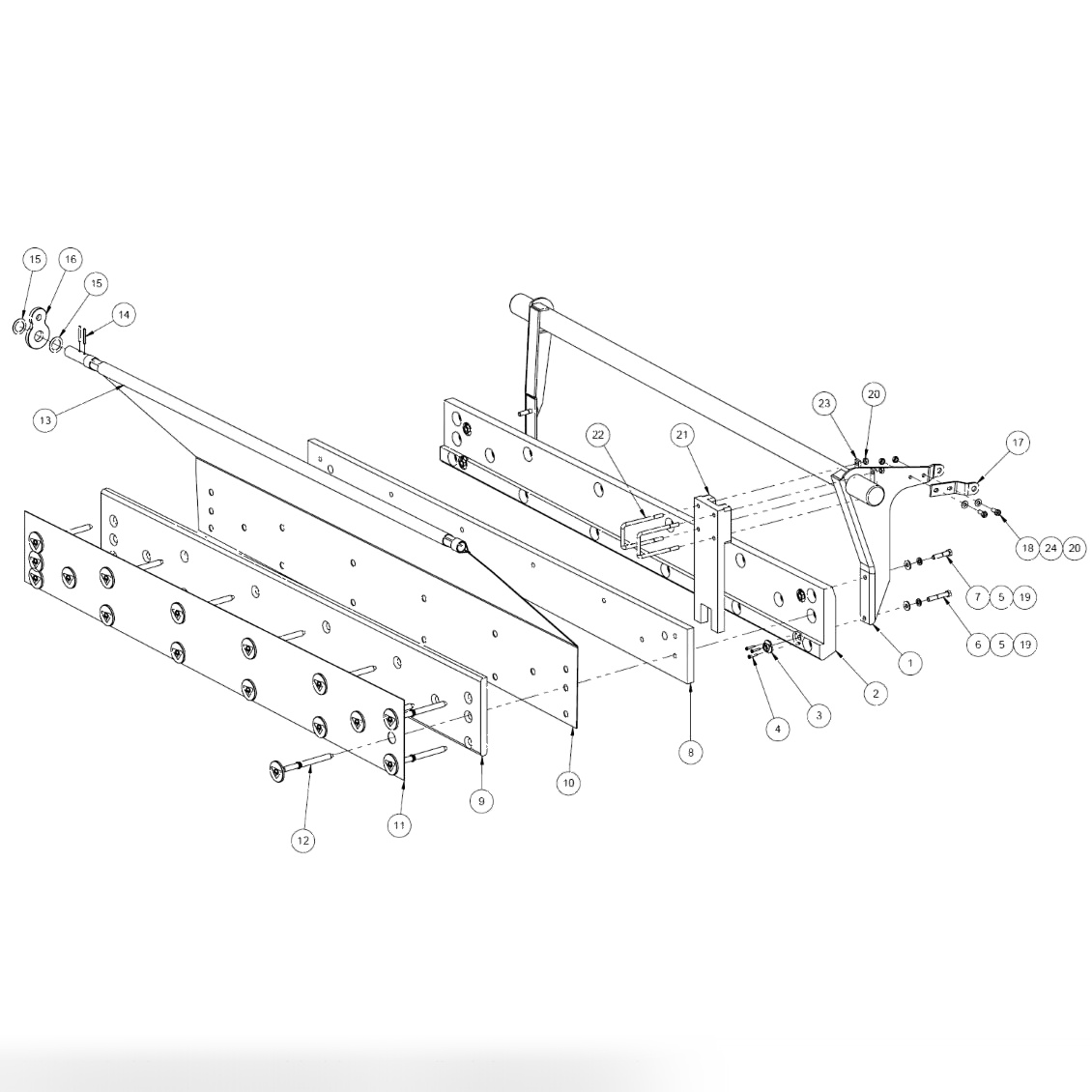

Cushion Assembly - Odd

Позиция	Артикул	Наименование
1	070002050	Cusion tube Hanger Weldment, Odd Machine
2	000024796	Plank, Right Hand
3	000024750	Cushion Mount Weldment
4	7023410800100	Particle Board Screw, Pan Head, Phillips Drive, #8 X 1.00
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
6	801865367BG	BG/5 Serrated Flange Bolt 2.25
6	809865365BG	Cap Screw, Hex Head, 3/8-16 X 2.25 (Bag of 10)
7	801865287BG	BG/5 Serrated Flange Bolt 1.75
7	809865285	Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
8	000022770	Pad Cushion Sponge, Rubber
9	000024807	Cushion Rubber, Right Hand
10	000026445	Pin Curtain, Right Hand and Left Hand
10	000026450	Pin Curtain, Reversable
11	090005230	Cushion Facing
11	090005279	CUSHION COVER, 6 HOLE
12	000028529	Cushion Rivets - Urethane "Plus" (Blue Urethane)
12	V000028519-U	Super Rivet
13	070011288	Curtain rod
14	913437240BG	Spring Pin, 3/16 X 1-1/2 (Bag of 10)
15	945091242	1 x 1 1/2 Washer
16	070005610	Curtain Link
17	000024534	Ear Hanger Cushion Assembly
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
19	947356617	Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
21	070001432	Curtain Protection Pad (Pad)
22	070001422	U Bolt, 5/16-18 X 4.25, Black Oxide Finish
23	070001421	Curtain Protection Pad (Strap)
24	948722111BG	Flat Washer 0.34 X 0.69, Black Oxide Finish (Bag of 10)
-	088000199	Cushion Asm, Odd
-	V000024795-6	Universal Cushion Plank
