QubicaAMF Запчасти пинсеттеров | Pinspotter Parts XLi EDGE Back End Cushion Assembly - Even

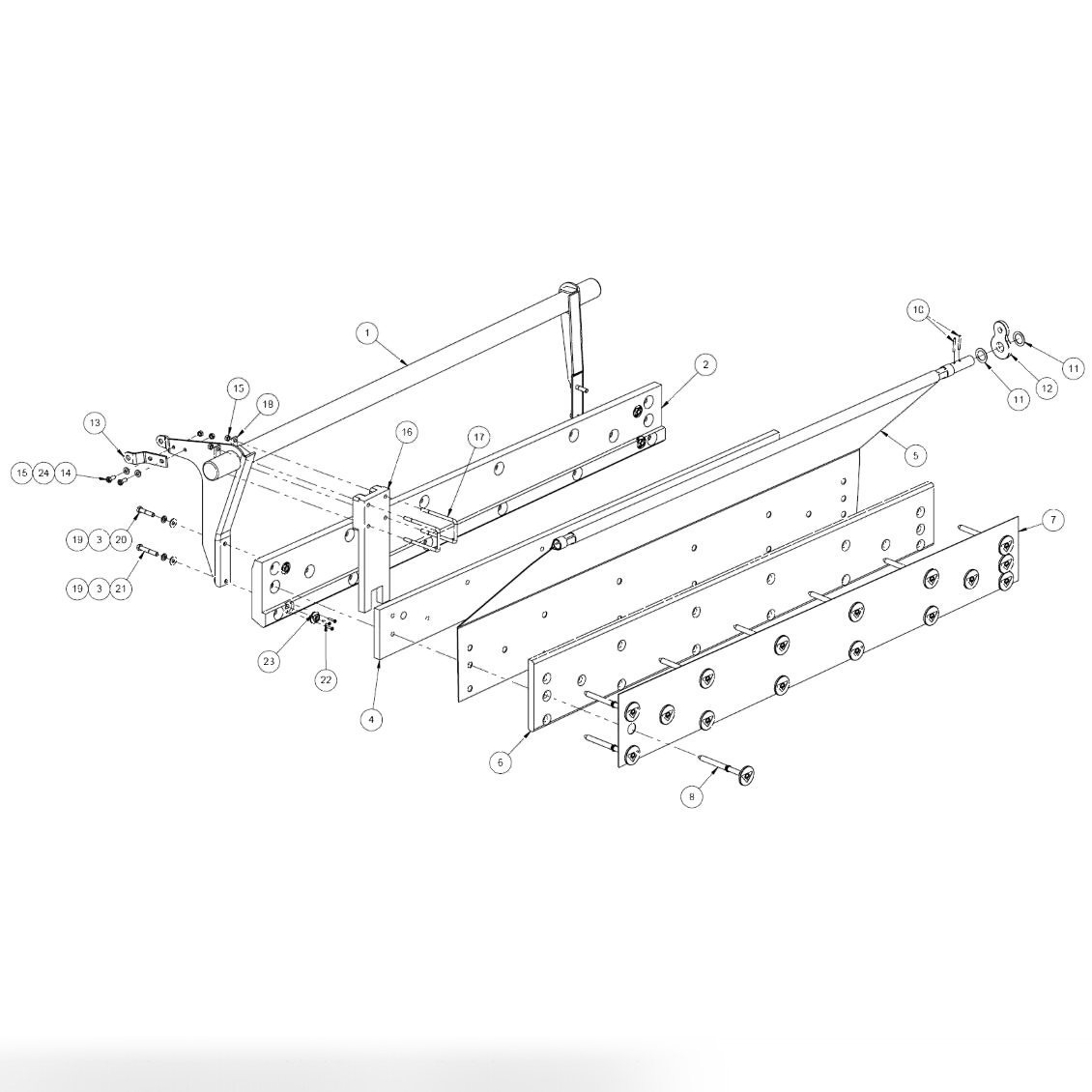

Cushion Assembly - Even

Позиция	Артикул	Наименование
1	070002252	Cusion Tube Hanger Weldment, Even Machine
2	000024795	Plank, Left Hand
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
4	000022770	Pad Cushion Sponge, Rubber
5	000026445	Pin Curtain, Right Hand and Left Hand
5	000026450	Pin Curtain, Reversable
6	000024808	Cushion Rubber, Left Hand
7	090005230	Cushion Facing
7	090005279	CUSHION COVER, 6 HOLE
8	000028529	Cushion Rivets - Urethane "Plus" (Blue Urethane)
8	V000028519-U	Super Rivet
9	070011288	Curtain rod
10	913437240BG	Spring Pin, 3/16 X 1-1/2 (Bag of 10)
11	945091242	1 x 1 1/2 Washer
12	070005610	Curtain Link
13	000024534	Ear Hanger Cushion Assembly
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
16	070001432	Curtain Protection Pad (Pad)
17	070001422	U Bolt, 5/16-18 X 4.25, Black Oxide Finish
18	070001421	Curtain Protection Pad (Strap)
19	947356617	Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish
20	801865287BG	BG/5 Serrated Flange Bolt 1.75
20	809865285	Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
21	801865367BG	BG/5 Serrated Flange Bolt 2.25
21	809865365BG	Cap Screw, Hex Head, 3/8-16 X 2.25 (Bag of 10)
22	7023410800100	Particle Board Screw, Pan Head, Phillips Drive, #8 X 1.00
23	000024750	Cushion Mount Weldment
24	948722111BG	Flat Washer 0.34 X 0.69, Black Oxide Finish (Bag of 10)
-	088000198	Cushion Assembly, Even
-	V000024795-6	Universal Cushion Plank
