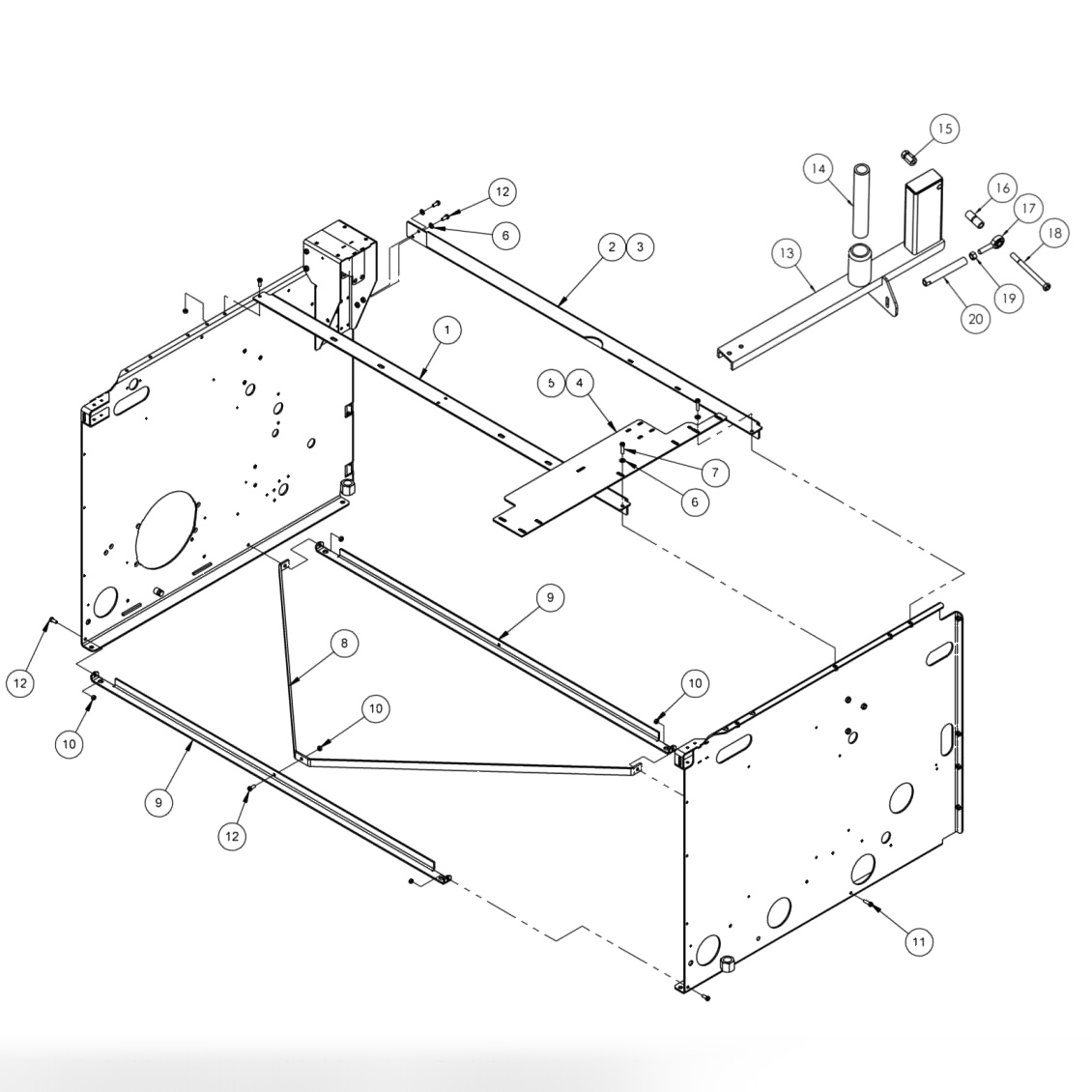

Back End Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
070007359
|
Support Bracket |
| 2 |
088001520
|
Distributor Support, Even Machine |
| 3 |
088001521
|
DISTRIBUTOR SUPPORT, ODD MACHINE |
| 4 |
088200059
|
Tread Plate, Even Machine |
| 5 |
088200060
|
Tread Plate, Odd Machine |
| 6 |
948761112BG
|
Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10) |
| 7 |
809857205BG
|
Cap Screw, Hex Head, 5/16-18 X 1.25 (Bag of 10) |
| 8 |
070001185
|
Brace |
| 9 |
070001184
|
Strap Weldment |
| 10 |
844057002BG
|
Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10) |
| 11 |
809857165BG
|
Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10) |
| 12 |
809857125BG
|
Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10) |
| 13 |
088001522
|
EDGE Distributor Support Weldment |
| 14 |
070006045
|
Distributor Support Post |
| 15 |
070006044
|
Hex Finish Nut, 3/8-16 |
| 16 |
070006043
|
Spacer |
| 17 |
090005256
|
Rod End |
| 18 |
809865725BG
|
Cap Screw, Hex Head, 3/8-16 X 4.75 (Bag of 10) |
| 19 |
831566002BG
|
Hex Finish Nut, 3/8-24 (Bag of 10) |
| 20 |
070006047
|
Safety Link Tube |
| - |
070006030
|
Spring - Safety Link - Distributor |
