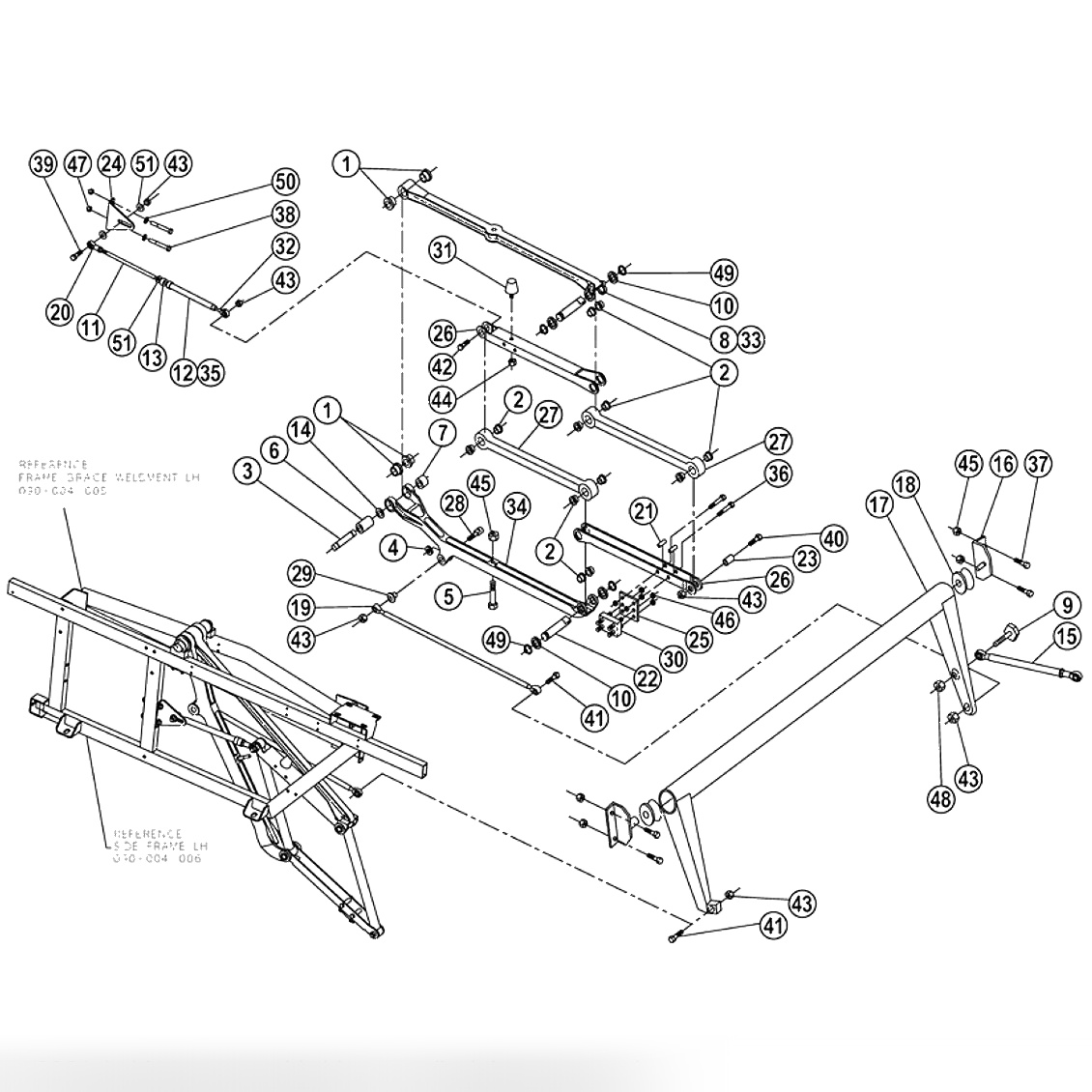

Sweep Arm Assembly

Позиция	Артикул	Наименование
1	000023104	Flange Bushing, 1.25 X 1.50 X 0.95
2	000023114BG	Flange Bushing, 0.63 X 0.81 X 0.06 (Bag of 10)
3	070003106	Main Pivot Shaft
4	070003117	Drive Link Spacer
5	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
6	070003232	Main Pivot Spacer, Long
7	070003233	Main Pivot Spacer, Short
8	070003238	Sweep Stabilizer Link Assembly
9	070003243	Cap Screw, Hex Head, 1/2-13 X 2.00
10	070006121BG	Distributor Clutch Assembly Flat Washer (Bag of 10)
11	070007276	Rod Link Assembly
12	070007278	Tube Weldment
13	070007283	Bumper - Link Assembly
14	070011819	Shim, Table and Sweep TRQ TBS Flat Washer 1.29 X 1.88 X 0.03
15	088001353	Tie Rod Assembly
16	090004007	Torque Tube Hanger Assembly
17	088002232	Sweep Rocker Arm Assembly
18	090005015	Torque Tube Bearing
19	090005254	Drive Link Connecting Rod
20	090005257	7/16 Rod End RH
21	090006125	Lower Steel Sweep Spacer, Female
22	090006126	Pin, Steel Sweep Linkage
23	090006127	Steel Sweep Link Sleeve
24	090006128	Sweep Link Bracket
25	090006131	Sweep Shock Mount Plate
26	090006132	Steel Sweep Link, Upper and Lower
27	090006133	Middle Link, Steel
28	090006134	Drive Link Pin
29	090006135	Drive Link Bushing/Spacer
30	090006136	Shock Mount
31	090006137	Bumper
32	090006138	Rod End, 7/16 - 20 X .5
33	090006139	Stabilizer Link Assembly
34	090006140	Drive Link Assembly
35	090006145	Sweep Link Slide Assembly
36	809857365	Cap Screw, Hex Head, 5/16-18 X 2.25
37	809865285	Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
38	809865445BG	Cap Screw, Hex Head, 3/8-16 X 2.75 (Bag of 10)
39	809869245BG	Cap Screw, Hex Head, 7/16-14 X 1.50 (Bag of 10)
40	809869325BG	Cap Screw, Hex Head, 7/16-14 X 2.00 (Bag of 10)
41	809869365BG	Cap Screw, Hex Head, 7/16-14 X 2.25 (Bag of 10)
42	809869405BG	Cap Screw, Hex Head, 7/16-14 X 2.50, Right Hand (Bag of 10)
43	838369002	Hex Lock Nut, 7/16-14, Center Punch
44	839057002BG	Hex Lock Nut, 5/16-18, Zinc Finish (Bag of 10)
45	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
47	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
48	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
49	919005600BG	Snap (External) Ring, #5100-62 5/8" (Bag of 10)
50	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
51	949100002BG	Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
