QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 90 XLi Electrical XLi Chassis & Mounting Bracket Assembly

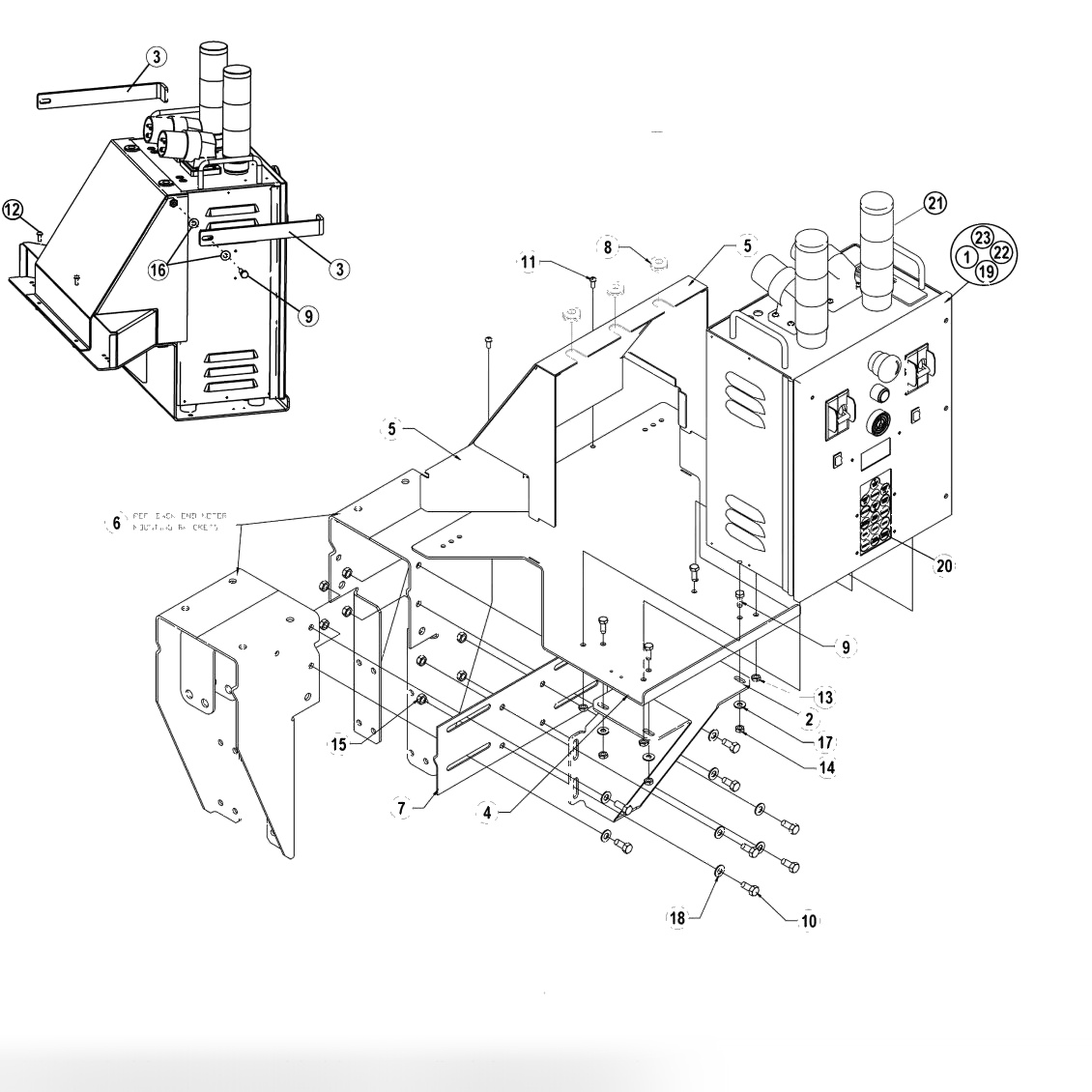

XLi Chassis & Mounting Bracket Assembly

Позиция	Артикул	Наименование
1	088000001-03	XLi Chassis with Brake Fuse
1	088000001-02	90XLi Chassis w/o t2
2	088000068	Chassis support bracket
3	088200180	Chassis rear cover strap
4	088200486	Controller Mounting Weldment
5	088200568	Chassis cover assembly, wide
6	090003509	Back End Motor Mount Weldment
7	090004513	Tie plate
8	711520012	Grommet, 0.63 X 0.88 X 0.06
9	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
10	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
11	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
12	818240082	Machine Screw, Pan Head, Phillips Drive, 10-32 X 0.50
13	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
15	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
16	948753101	Flat Washer 1/4 X 0.27 X 0.61 X 0.05 SAE, Black Oxide Finish
17	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
18	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
20	088000019	Switch membrane, keypad
21	088000225	Led stacklight assembly
22	088000001-R	Rebuilt XLi chassis
23	088000001-02-R	Rebuilt XLi Chassis, Without Camera Power
-	051000025	Power Inlet, 3 POLE, 220V
-	051000043	Shock Mount
-	088000001-02CE-R	Rebuilt Xli Chassis CE
-	088000013	PCA CPU Board Assembly
-	088000104	Home Run Cable for XLi MCU
-	088000119	Ruber Isolator
-	088000151	Stacklight bulb, push-in pin lock base
-	088000152	Logic power fuse, 3A, 250v
-	748901111	Fuse, 5 x 20mm, Slo-Blo, 1 amp
-	760019186	Mate-N-Lok Female Pin 14-20AWG
-	088000208	Mini-Molex Male Pin
-	088000213	Stacklight bulb, screw base
-	088000261	Stack Light Clear Lens
-	088000283	Foul Detect Wire Harness
-	088000510	Homerun Cable Manager's Control Unit USB, 250'
-	770046247	Power In 6A C-13
-	088200532	Cable XLi Foul Input
-	088200533	Foul Interface Assembly NON-XLi
-	090005706	Logic Power Cable
-	090005749	Daisy Chain Cable
-	090005794	Terminator Cable
-	090005855	Ac Power Cable
-	400088009	XLi chassis manual
-	743511038	XLi Chassis Circuit Breaker
-	755507080	P&B Relay XLi Chassis
-	759518131	Reset Switch
-	770046211	Power Supply 45W
