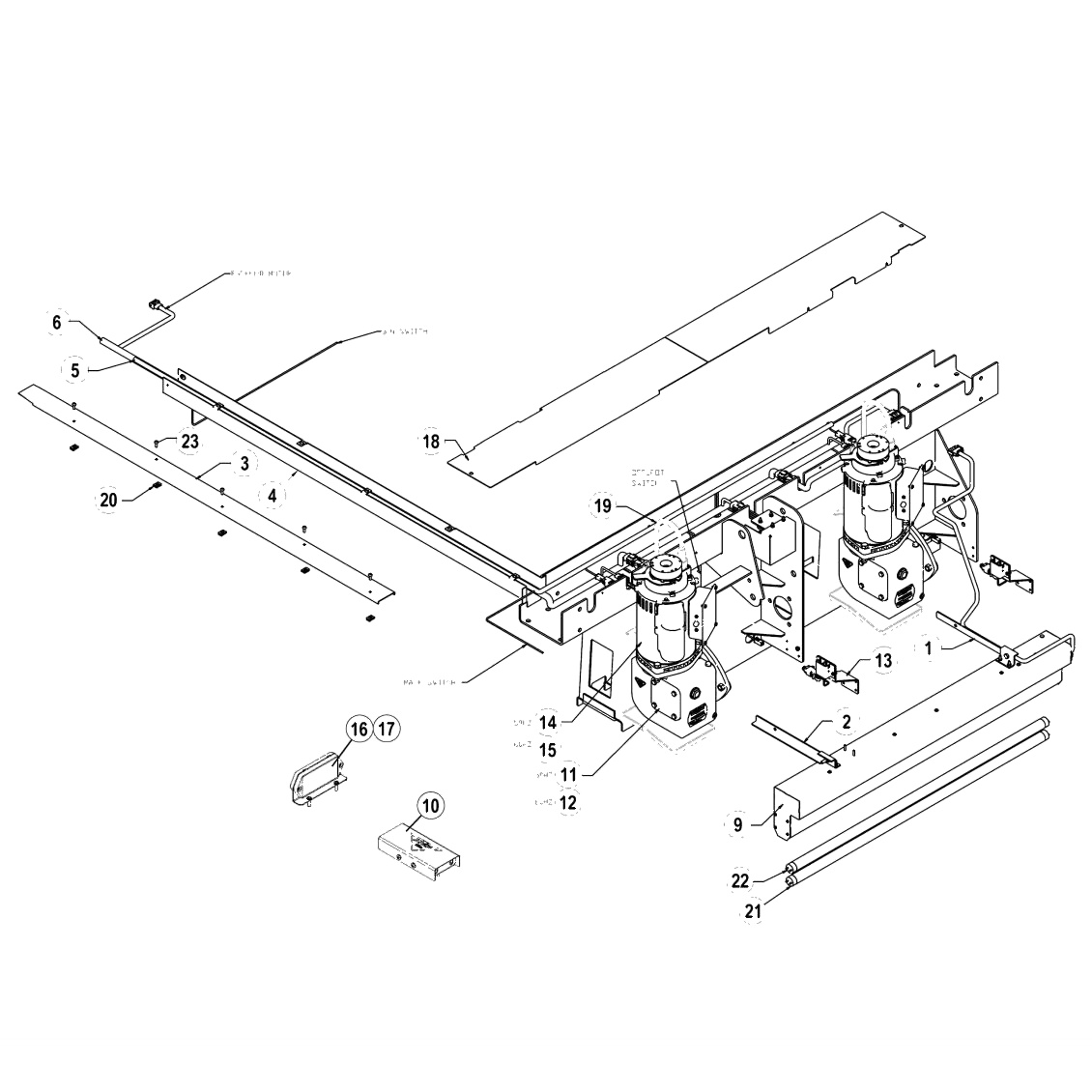

Front End Electrical Installation XLi Assembly

Позиция	Артикул	Наименование
1	070001907	Pit Light Mounting Bracket, Right Hand (10 Pin)
2	070001908	Pit Light Mounting Bracket, Left Hand (7 Pin Side)
3	070007747	Wireway Cover
4	070007748	Front Wireway
6	088000006	Even Power Cable
8	088001286-02	FE MOTOR BRAKE, EDGE FF
9	088000400	Dual Pit Light Assembly, Domestic
9	088000401	Dual Pit Light Assembly, CE
10	088000450	Ball Detector Assembly
11	088004609BX	FE Gearbox, 50Hz, Boxed
12	088004604BX	Front End Gearbox, 60Hz, Boxed
13	088000107	Home Assembly
14	088000145	Front End Motor Assembly, 50Hz
15	088000146	Front End Motor Assembly, 60Hz
16	088000189	Reflector, XLi Ball Detector
17	088001292	Reflector Kit - Includes 2 Reflectors And Bracket
18	090005053	Crossbeam Cover
19	090005876	Motor Cable, Small Plug
20	724511074	Speed Nut, 10-32, Tinnerman
21	751001460	Bulb, Blacklight, 36", F30t8
22	751001471	Bulb, Daylight, 36", F25t8
23	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
-	088000243	Odd Machine Logic Cable
-	088000014	Ball Detect Signal Cable
-	088000016	Ball Lift Signal Cable
-	088000034	Handheld Run Cable
-	088000102CE	Technicians Handheld Unit
-	088001289	XLi Reflector Bracket
-	088000122	Ball Detect Reflector Bracket
-	088000209	Term Crimp Female, Bg/10
-	088200533	Foul Interface Assembly NON-XLi
-	088000500	Ball Detector Assembly
-	088000454	XLi Ball Trigger PCB
-	088000102-01	Technician's Hand-Held Unit (THU)
-	715021717	Gearbox Oil SHC634
