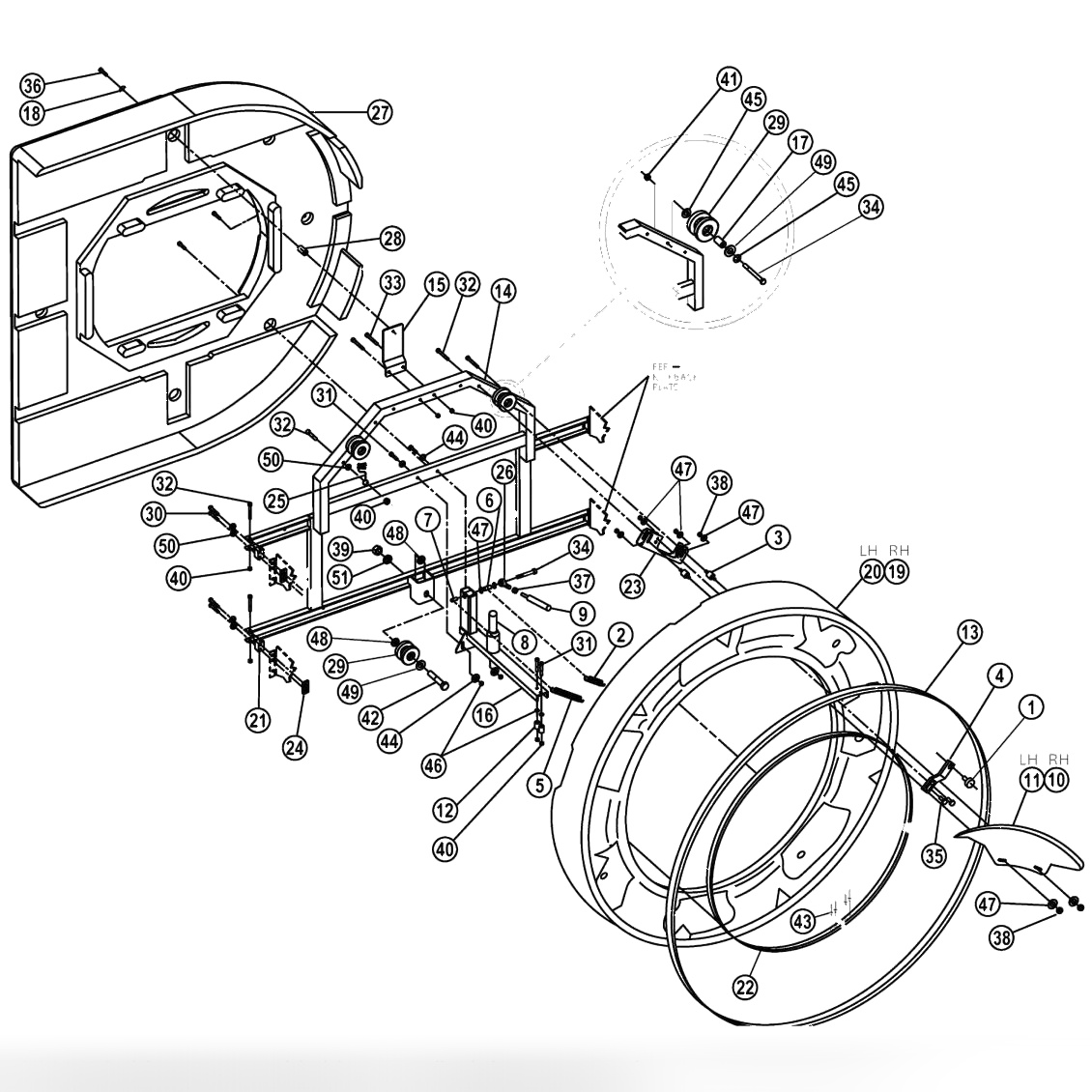

Pin Elevator & Hoop Assembly

Позиция	Артикул	Наименование
1	000021992BG	Grommet, #2250 Bumper (Bag of 10)
2	000026032	Spring - Lateral Drive
3	000029068	Rubber Mount - Pin Elevator
4	070001415	Rail Stop Bracket
5	070006030	Spring - Safety Link - Distributor
6	070006043	Spacer
7	070006044	Hex Finish Nut, 3/8-16
8	070006045	Distributor Support Post
9	070006047	Safety Link Tube
10	070006098	Rail, Right Hand Machine (odd - not shown)
11	070006099	Rail, Left Hand Machine (even)
12	070008449	Spacer Distributor Support
13	090002065	Pin wheel belt
14	090003102	Hoop Weldment
15	090003111	Upper Guard Support
16	090003112	Distributor Mount
17	090003116	Spacer
18	090004055	Flat Washer 0.34 X 2.00 X 0.09, Black Oxide Finish
19	090004042	Pin wheel weldment, Right Hand Machine (odd - not shown)
20	090004041	Pin wheel weldment, Left Hand Machine (even)
21	090005106	Hinge Spacer
22	090005108	Pin wheel strip
23	090005120	Rail Standoff Bracket
24	090005123	Nut plate
25	090005144	Static brush
26	090005256	Rod End
27	090007145	Pinspotter Wheel Guard
28	090007241	.34 x .5 x .88 Split Spacer
29	090007327	Pin Elevator Roller
30	809857325BG	Cap Screw, Hex Head, 5/16-18 X 2.00 Bg/10
31	809857365	Cap Screw, Hex Head, 5/16-18 X 2.25
32	809857405BG	5/16-18 x2 1/2 Scr Hx Bg/10
32	809857405	Screw, hex, 5/16 - 18 x 2-1/2, Bag Of 10
33	809857445	Cap Screw, Hex Head, 5/16-18 X 2.75
34	809865725BG	Cap Screw, Hex Head, 3/8-16 X 4.75 (Bag of 10)
35	824757102	Self Tapping Screw, Hex Washer, 5/16-18 x 0.63
36	826057242	Self Tapping Screw, Hex Washer, 5/16-18 x 1.50
37	831566002BG	Hex Finish Nut, 3/8-24 (Bag of 10)
38	834557002BG	Hex Finish Nut, 5/16-18 (Bag of 10)
39	840381002BG	Hex Lock Nut, 5/8-11, TK (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
41	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
42	880781240	Shoulder Bolt, Socket Head, Hex Socket Drive, 3/4 X 1.50
43	938523050	Blind (Pop) Rivet, 0.13 X 0.44, Zinc Finish, SD45BS
44	947356617	Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish
45	947367141	Flat Washer 3/8 X 0.43 X 0.41 X 0.13 USS, Black Oxide Finish
46	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
47	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
48	948809210	Flat Washer 0.66 X 0.63 X 0.09 , GRA
49	950001008	Flat Washer 0.77 X 1.25 X 0.08, Nylon Finish , F/LO
50	951156002BG	Spring (Split) Lock Washer 5/16 (Bag of 10)
51	951181002	Medium Spring (Split) Lock Washer 5/8 ANSI
