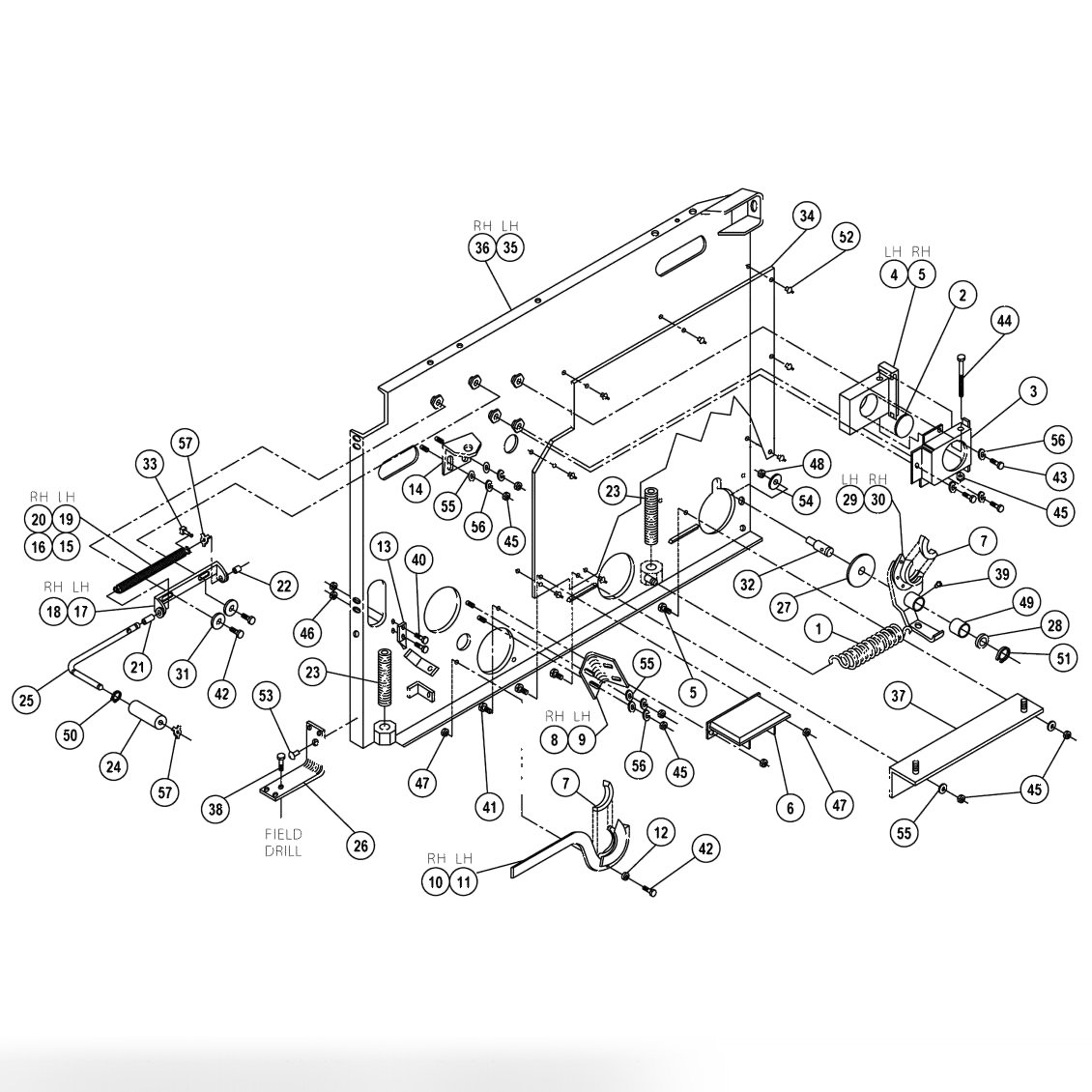

QubicaAMF Pinspotter Parts 90 XLi Back End Kickback Plate Assembly - Opposite Ball Exit Side

Kickback Plate Assembly - Opposite Ball Exit Side

Позиция	Артикул	Наименование	Цена
№1	000021204	Spring	1 180 ₽
№2	000022300	Shield	480 ₽
№3	000022788	Box Support Back End Assembly	2 360 ₽
№4	000022794	Block Support, Right Hand	2 790 ₽
№5	000022795	Block Support, Left Hand	3 210 ₽
№6	000022878	Angle	3 810 ₽
№7	000022924BG	Support, Bearing, Back of 10	2 540 ₽
№8	000023431	Clip, Bottom, Right Hand	2 800 ₽
№9	000023432	Clip, Bottom, Left Hand	2 800 ₽
№10	000023464	Support Weldment Right Hand	5 060 ₽
№11	000023465	Support Weldment Left Hand	5 060 ₽
№12	000023467	Flange Bushing, 0.31 X 0.43 X 0.31	270 ₽
№13	000023468	Back End Bracket, Left Hand and Right Hand	1 780 ₽
№14	000023821	Clip, Top	3 760 ₽
№15	000024507	Pin Ejector Assembly, Left Hand	13 400 ₽
№16	000024508	Pin Ejector Assembly, Right Hand	13 400 ₽
№17	000024510	Bracket, Left Hand	7 820 ₽
№18	000024511	Bracket, Right Hand	7 350 ₽
№19	000024512	Spring, Left Hand	1 750 ₽
№20	000024513	Spring, Right Hand	1 750 ₽
№21	000024515	Bearing Sleeve, 0.44 X 0.56 X 0.75, Long	740 ₽
№22	000024516	Bearing Sleeve, 0.44 X 0.56 X 0.38, Short	1 410 ₽
№23	000024890	Jack Screw Set Screw	6 560 ₽
№23	000025207	Key HS 0.56 x 4.50	650 ₽
№23	088002276	Locking Tab	390 ₽
№23	088002275	Jack Screw	0 ₽
№24	000025803	Roller	1 200 ₽
№25	000025804	Shaft Pin Ejector Asm	2 040 ₽
№26	000026464	Kickback Bracket	2 080 ₽
№27	000027641	Roller Bearing, Thrust, 0.75 X 2.75 X 0.62	320 ₽
№28	000027642	Front Roller Flat Washer 0.76 X 1.25 X 0.05	90 ₽
№29	000027645	Bearing Support Left Side (Eff. S.N. 58801)	7 190 ₽
№30	000027646	Bearing Support Right Sioe (Eff. S.N. 58801)	7 190 ₽
№32	000029015	Stud, Replacement (not shown (Eff. at 58801))	1 830 ₽
№33	000029317	Special Pin (Custom)	1 360 ₽
№34	070002027	Kickback Panel	9 500 ₽
№35	090004127	Kickplate Weldment LH/RHM	31 380 ₽
№36	090004128	Kickplate Weldment RH LHM	31 540 ₽
№37	090004131	Pit Support Bracket	3 890 ₽
№38	709013059	Anchor Screw Bolt, M8 X 75mm, HH	420 ₽
№39	710501009	Grease Fitting	160 ₽
№40	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75	90 ₽
№41	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)	610 ₽
№42	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)	800 ₽
№43	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)	690 ₽
№44	809865645BG	Cap Screw, Hex Head, 3/8-16 X 4.00 (Bag of 10)	1 370 ₽
№45	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)	1 850 ₽
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)	450 ₽
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)	390 ₽
№48	844074002BG	Hex Lock Nut, 1/2-20 (Bag of 10)	1 400 ₽
№49	900112203BG	Bearing Sleeve, 0.75 X 1.00 X 1.25 (Bag of 5)	1 570 ₽
№50	919005400BG	Snap (External) Ring, #5100-43 (Bag of 10)	760 ₽
№51	919005800BG	Snap (External) Ring, #5100-75 (Bag of 10)	500 ₽
№52	937000000BG	Drive Rivet, 0.25 X 0.34, Plain Steel, UH (Bag of 10)	4 310 ₽
№53	937710005	Drive Rivet, Domed, 0.31 X 0.56, Aluminum	270 ₽
№54	941072200BG	Flat Washer 0.50 X 1.25 X 0.08 (Bag of 10)	840 ₽
№55	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)	560 ₽
№56	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)	470 ₽
№57	963600002BG	X-Washer, 1/4", 9000-16 (Bag of 10)	970 ₽
-	000022796	Cushion Block-Urethane Right Hand (10 Side)	2 690 ₽
-	000022797	Cushion Block-Urethane Left Hand (7 Side)	2 690 ₽
-	070001131	Kickback Weldment Post	560 ₽
-	834991960	Hex High Nut, Coupling Nut	650 ₽
