QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 90 XLi Back End Back End Drive Motor & Bracket Assembly

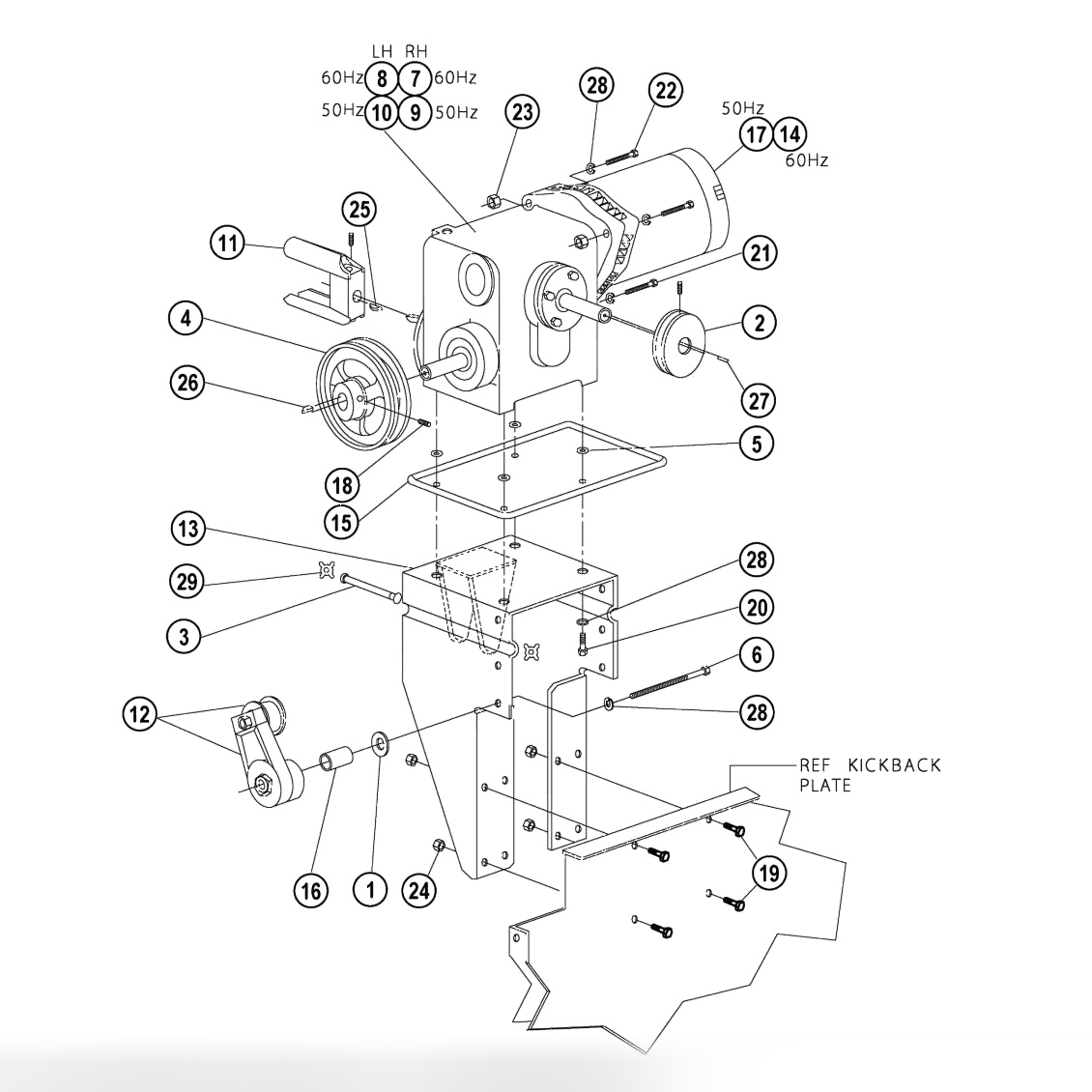

Back End Drive Motor & Bracket Assembly

Позиция	Артикул	Наименование
1	000021792	Frame Adjustment Flat Washer 0.41 X 0.88 X 0.03
2	000022172	Sheave Back End Drive
3	000022821	Special Pin (Custom)
4	000023673	Sheave
5	000023758BG	Gasket 0.38 X 0.41 X 0.04 (Bag of 10)
6	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
7	612088223	Back End Gearbox Kit 60Hz Odd
8	612088224	Back End Gearbox Kit 60Hz Even
9	612088221	Back End Gearbox Kit 50Hz Odd
10	612088222	Back End Gearbox Kit 50Hz Even
11	090001130	Distributor Drive Housing
12	090003508	Tensioner Assembly
13	090003509	Back End Motor Mount Weldment
14	090003766	Back End Motor (60Hz)
14	785903766	Back End Rotor 60Hz
14	090003766-01	Back End Motor, 60 Hz
15	088004650	Back End Motor Drip Pan
16	090004519	Spacer
17	090007310-02	Motor Back End, 50 Hz
18	807358060BG	Set Screw, Socket Head Cup Point, 5/16-24 X 0.38 (Bag of 10)
19	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
20	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
21	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
22	809865325BG	Cap Screw, Hex Head, 3/8-16 X 2.00 (Bag of 10)
23	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
25	907000300BG	Hi-Pro Key, 504 (Bag of 10)
26	907201000	Square Key, 0.19 X 1.25
27	907202600	Gear Shaft Square Key, 0.19 X 1.88
28	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
29	963600002BG	X-Washer, 1/4", 9000-16 (Bag of 10)
-	090003634	Capacitor Franklin
-	090004557	End Bell Assembly 50 and 60Hz PSP
-	090004558	Solid State Start Switch 50Hz
-	785907310	Back End Rotor 50Hz
-	090004560	Start Switch 60Hz
-	612088216	Back End Gearbox Seal Replacement Kit
-	612088225	Back End Gearbox Accessories Kit
-	612088220	Back End Gearbox Vent Plug Kit
-	715012505	Back End Gearbox Grease 5g
-	718507023	1/4 NPT Plug Pipe Socket
-	785501040	1/4-18 NPT Sq Plug Breather
-	785501616	Input Shaft Seal, Hub City and IPTS Gearboxes
-	785503019	Carpet Drive Shaft with Integral 18-Tooth Spur Gear
-	785503077	Front End Gearbox Oil Seal for Worm Input Shaft
