QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Horizontal Ball Return Pinspotter Machine Layout

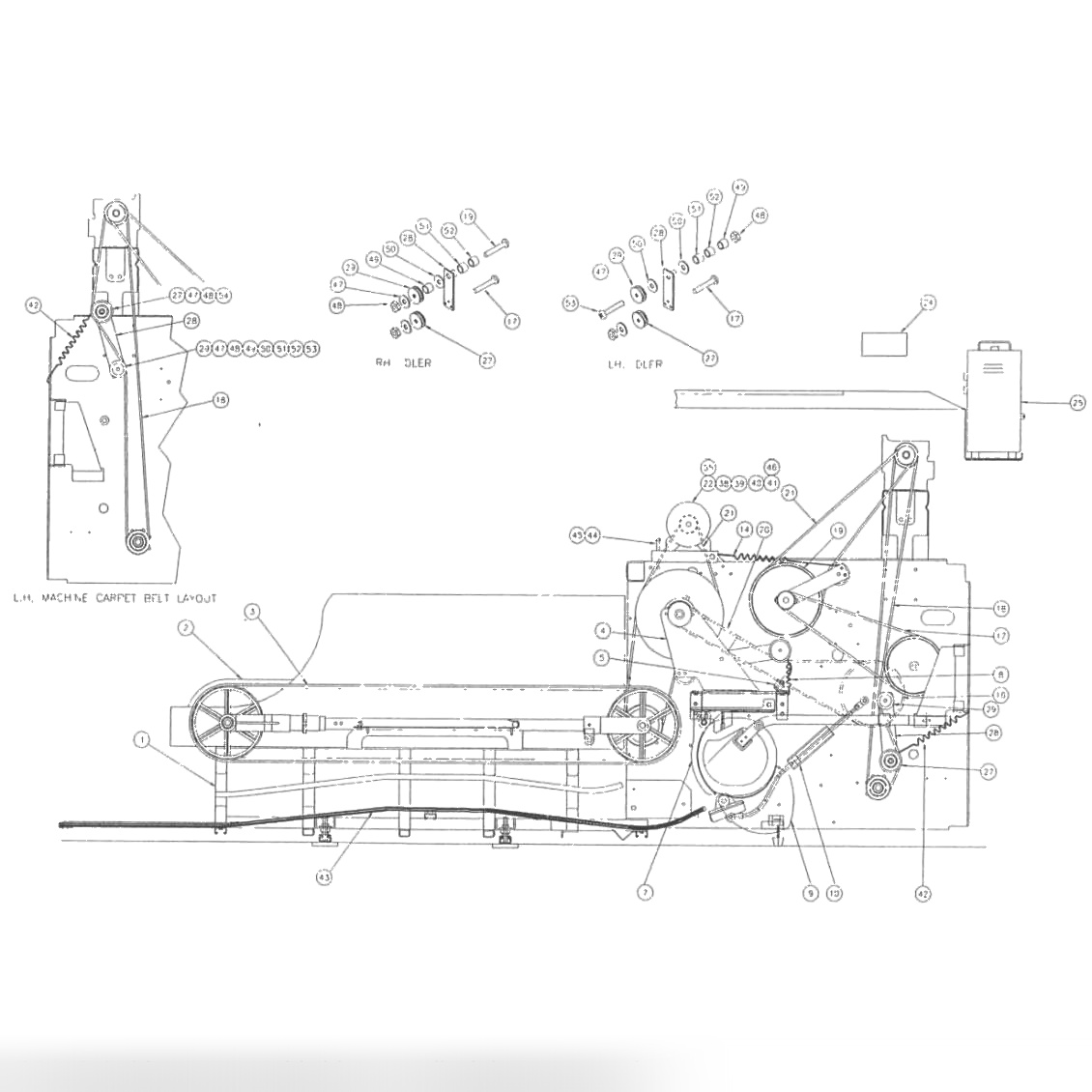

Pinspotter Machine Layout

Позиция	Артикул	Наименование
1	090007417	Kickback Support Frame
2	090007097	Cover
3	090007024	HBR Assembly
4	090007924	Clutch Assembly
5	090007260	Sensor Bracket Assembly
6	090007236	Reflector Bracket
7	090007926	Lock Assembly
8	070006034	Linear Spring - Distributor
9	090007927	Cradle Assembly
10	090007333	Rod Asm
14	000024673	Spring Distributor
16	090007335	Crank Asm 8800
17	090007009	V-Belt LBS Secondary
18	090007326	V-Belt Carpet Drive
19	090007906	LBS Clutch Assembly
20	090007010	V Belt Primary LBS
21	090007243	V-Belt
22	090007045	Motor Horizontal Ball Return 60Hz/50Hz 115V/230V
24	090008825	HBR Control Box Asm
25	090008800	Chassis
25	090008864	Chassis 8800
27	090007007	V-Idler, 3.00
28	090007014	Idler Arm
29	090004444	Idler Pulley
31	090007047	Cable, Power
32	090007048	Cable, Motor
33	090007051	Signal Cable
34	090007133	Cable, Horizontal Ball Return Motor
35	090008876	Cable
36	090008877	Sensor Assembly, Reflective
37	770054219	Reflector 2-3/16" Diameter, Clear
38	090007012	Motor Bracket
39	090007004	Pulley 60Hz
39	090007005	Pulley 50Hz
40	090007055	Pivot Bracket
41	090007013	Shaft Motor Pivot
42	090007291	Spring
43	090007238	Track Horizontal Ball Return
43	090007411	HBR Track
44	802265801	Cap Screw, Hex Head, 3/8-16 X 5.00
45	835565002	Hex Finish Jam Nut, 3/8-16
46	000021423	Collar, 5/8"
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
49	070008212	Spacer
50	945867242BG	Flat Washer 1.50 X 0.41 X 0.50, Plain Finish (Bag of 10)
51	900116161	Bearing Sleeve 1 .00 ID
52	090007016	Spacer Idler .406 X .998 X 1.2
53	809865565BG	3/8-16 x 3 1/2 Scr HH Bg/10
53	809865565	Screw-Hex 3/8-16 X 3-1/2 (Bag 10)
54	809865365BG	Cap Screw, Hex Head, 3/8-16 X 2.25 (Bag of 10)
55	900110050	Bushing
