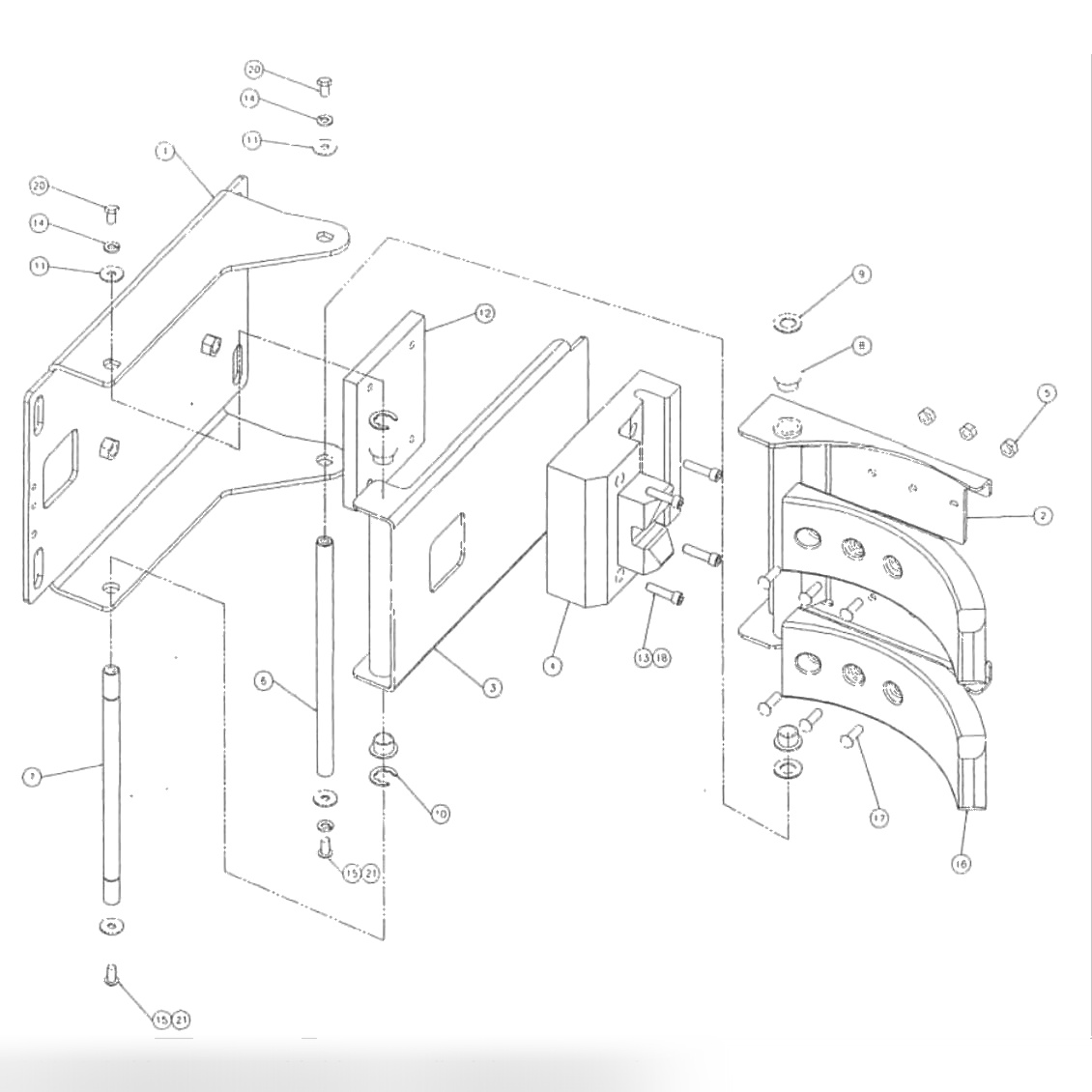

Lock Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090007212
|
Plate, Top Mounting |
| 2 |
090007281
|
Door Upper Weldment |
| 3 |
090007269
|
Plate, Lock Weldment |
| 4 |
090007210
|
Door Lock |
| - |
844049002BG
|
Hex Lock Nut, 1/4-20 (Bag of 10) |
| 6 |
090007214
|
Shaft, Door |
| 7 |
090007213
|
Shaft, Lock |
| 8 |
900208120
|
Flange Bushing, 0.50 X 0.63 X 0.75 |
| 9 |
701316041BG
|
Roller Bearing, Thrust, 0.51 X 1.00 X 0.13 (Bag of 10) |
| 10 |
919010600BG
|
E-Ring, 1/2" (Bag of 10) |
| - |
948753102BG
|
Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10) |
| 12 |
090007240
|
Nut Plate |
| 13 |
810249160
|
1/4-20 X 1 Socket Head Cap Screw |
| 13 |
810249160BG
|
1/4-20 x1 Screw SH |
| 14 |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| 15 |
808549080BG
|
Cap Screw, Button Head, 1/4-20 X 0.50 Bg/10 |
| 16 |
090007279
|
Shoe Door Lower |
| 17 |
808549120BG
|
Cap Screw, Button Head, 1/4-20 X 0.75 Bg/10 |
| 18 |
700107146
|
Adhesive, Loctite, Blue |
| 19 |
715010307
|
Grease Lubrication |
| 20 |
809849085
|
Cap Screw, Hex Head, 1/4-20 X 0.50 |
| 21 |
700107170
|
Loctite Adhesive RC609/10ML |
