QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Horizontal Ball Return Light Ball Sensor Assembly

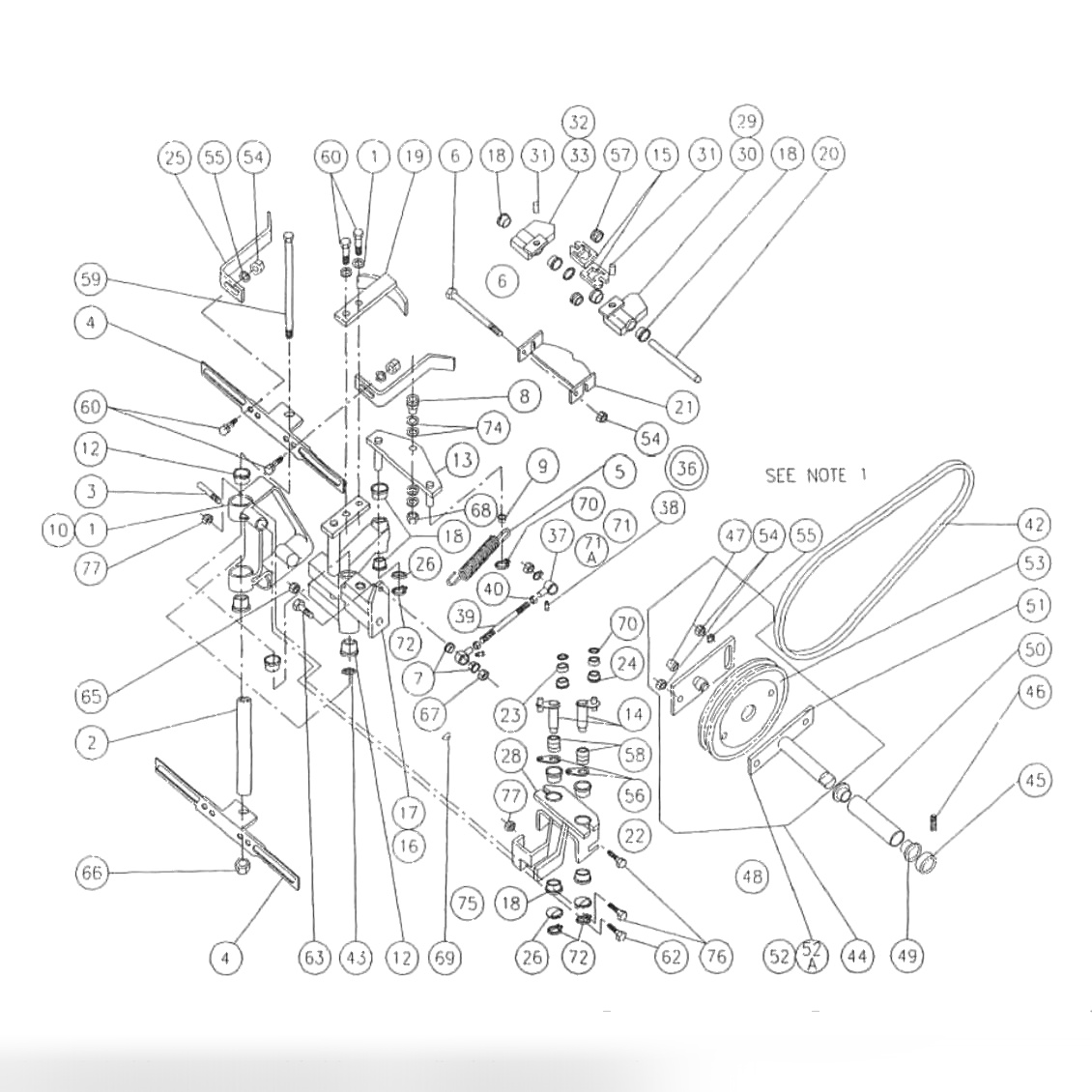

Light Ball Sensor Assembly

Позиция	Артикул	Наименование
1	000022869BG	Flat Washer 3/8 X 0.43 X 1.00 X 0.078 USS (Bag of 10)
2	000024615	Shaft Ball Door Rudder
3	000024616	Clamp Stud
4	090007276	Bracket
5	000026031	Tension Spring, Distributor Belt
6	000027264	Spacer Flat Washer 0.50 X 1.00 X 0.06
7	000029611BG	Uniball Bearing Flat Washer (Bag of 10)
8	070006728	Cam Follower
9	070011040BG	Ratchet Roller, Bag of 10
10	070011066	Rudder Arm Support Assembly
11	070011067	Rudder Arm Support
12	900212201BG	Flange Bushing, 0.75 X 1.00 X 1.25 (Bag of 5)
13	070011068	Link Weldment
14	070011626	Trip Arm Assembly
15	070011077	Trip Finger
16	070011080	Rudder Drive Assembly
17	070011079	Rudder Drive Weldment
18	900208091BG	Flange Bushing, 0.50 X 0.69 X 0.56 (Bag of 5)
19	070011418	Trip Cam
20	070011098	Sleeve
21	070011099	Cam Light Ball Sensor
22	070011105	Roller Assembly
23	070011096	Roller Spacer
24	900205081BG	Flange Bushing, 0.32 X 0.44 X 0.50 (Bag of 5)
25	070011107	Trip Arm (Reset Cam)
26	070011108	Flat Washer 0.50 X 0.88 X 0.06, Black Oxide Finish
27	070011110	Cam Sensor Assembly
28	070011100	Cam Sensor Weldment
30	070011407	Rudder Cam Assembly, Left Hand (Odd)
31	913448120BG	Spring Pin, 1/4 X 3/4 (Bag of 10)
33	070011406	Rudder Cam Assembly, Right Hand (Even)
36	090005258	Rod Assembly
42	070011147	V-Belt, Paddle Drive, Lower
43	070011151	Spacer
44	070011178	Rudder Drive Crank Assembly
45	000021423	Collar, 5/8"
46	807357040BG	Set Screw, Socket Head, 5/16-18 X 0.25 Bg/10
48	000029696	Tube Assembly
49	000021427	Flange Bushing, 0.63 X 0.88 X 1.25
50	000029697	Tube Adjustment, Female, Round Body, 0.88 X 1.18 X 4.50
51	070011092	Crank Shaft Weldment
52	070011225	Crank Adjustment Plate Weldment
53	070011097	Crank Pulley
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
56	070011273	Tab
57	722971522	Compression Spring
58	722985512	Compression Spring
59	802865996BG	Cap Screw, Hex Head, 3/8-16 X 9.50 (Bag of 10)
60	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
61	809857880BG	5/16-18 x5 1/2 Scr Hx Bg/10
61	809857880	Screw, Hex, 5/16 - 18 X 5-1/2
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
63	809865205BG	Cap Screw, Hex Head, 3/8-16 X 1.25 (Bag of 10)
65	831573002BG	Hex Finish Nut, 1/2-13 (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
67	840065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
68	844070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)
70	919005200BG	Snap (External) Ring, #5100-31 (Bag of 10)
71	838866002BG	Elastic Stop Nut, 3/8-24, ESN TN (Bag of 10)
72	919005500BG	Snap (External) Ring, #5100-50 (Bag of 10)
74	949100002BG	Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
75	070011299	Sensor Brace
76	809849145BG	Cap Screw, Hex Head, 1/4-20 X 0.88 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
78	900208161BG	Flange Bushing, 0.50 X 0.88 (Bag of 5)
