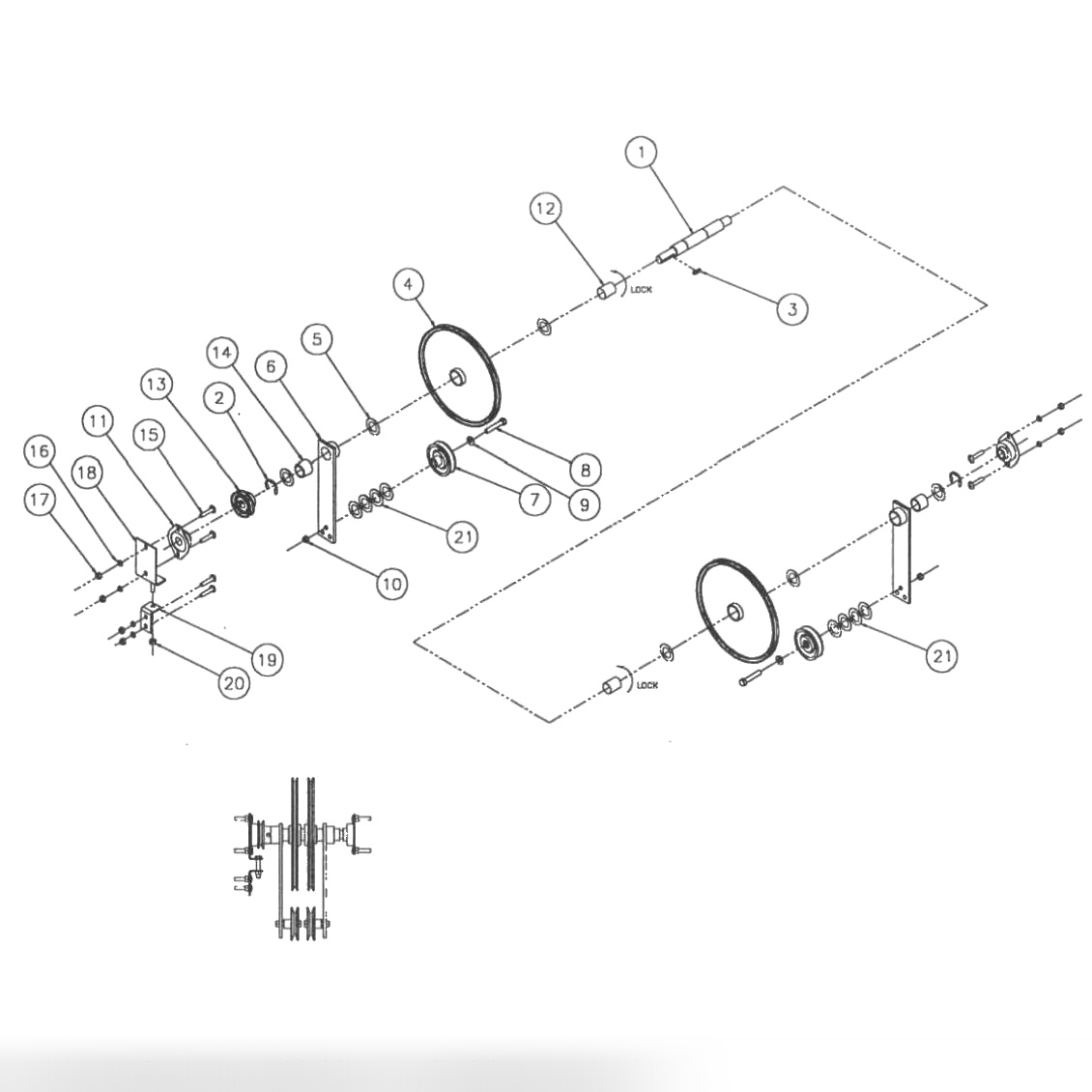

LBS Clutch Shaft Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090007015
|
Shaft, LBS Clutch |
| 2 |
919010900
|
E-Ring, 1", 5133-98 |
| 3 |
907200800BG
|
Square Key, 0.19 X 0.72 Bg/10 |
| 4 |
090007006
|
Pulley, LBS Clutch |
| 5 |
945091242
|
1 x 1 1/2 Washer |
| 6 |
090007014
|
Idler Arm |
| 7 |
090007007
|
V-Idler, 3.00 |
| 8 |
809865405BG
|
Cap Screw, Hex Head, 3/8-16 X 2.50 (Bag of 10) |
| - |
948767132BG
|
Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10) |
| - |
844065002BG
|
Hex Lock Nut, 3/8-16 (Bag of 10) |
| 11 |
090007041
|
Bearing, Flange Mounting, .75 |
| 12 |
070007291
|
Bearing, 1.00 X 1.31 X 1.00, Clutch 03-075 |
| 13 |
090007002
|
Pulley, LBS, Secondary Driver |
| 14 |
900116161
|
Bearing Sleeve 1 .00 ID |
| 15 |
801257120
|
Carriage Bolt, 5/16-18 X 0.75, Zinc Finish |
| 16 |
948722111BG
|
Flat Washer 0.34 X 0.69, Black Oxide Finish (Bag of 10) |
| - |
844057002BG
|
Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10) |
| 18 |
090007042
|
Tensioner, LBS Belt |
| 19 |
090007043
|
Bracket |
| 20 |
835557002BG
|
Hex Finish Jam Nut, 5/16-18 (Bag of 10) |
| 21 |
000022869BG
|
Flat Washer 3/8 X 0.43 X 1.00 X 0.078 USS (Bag of 10) |
