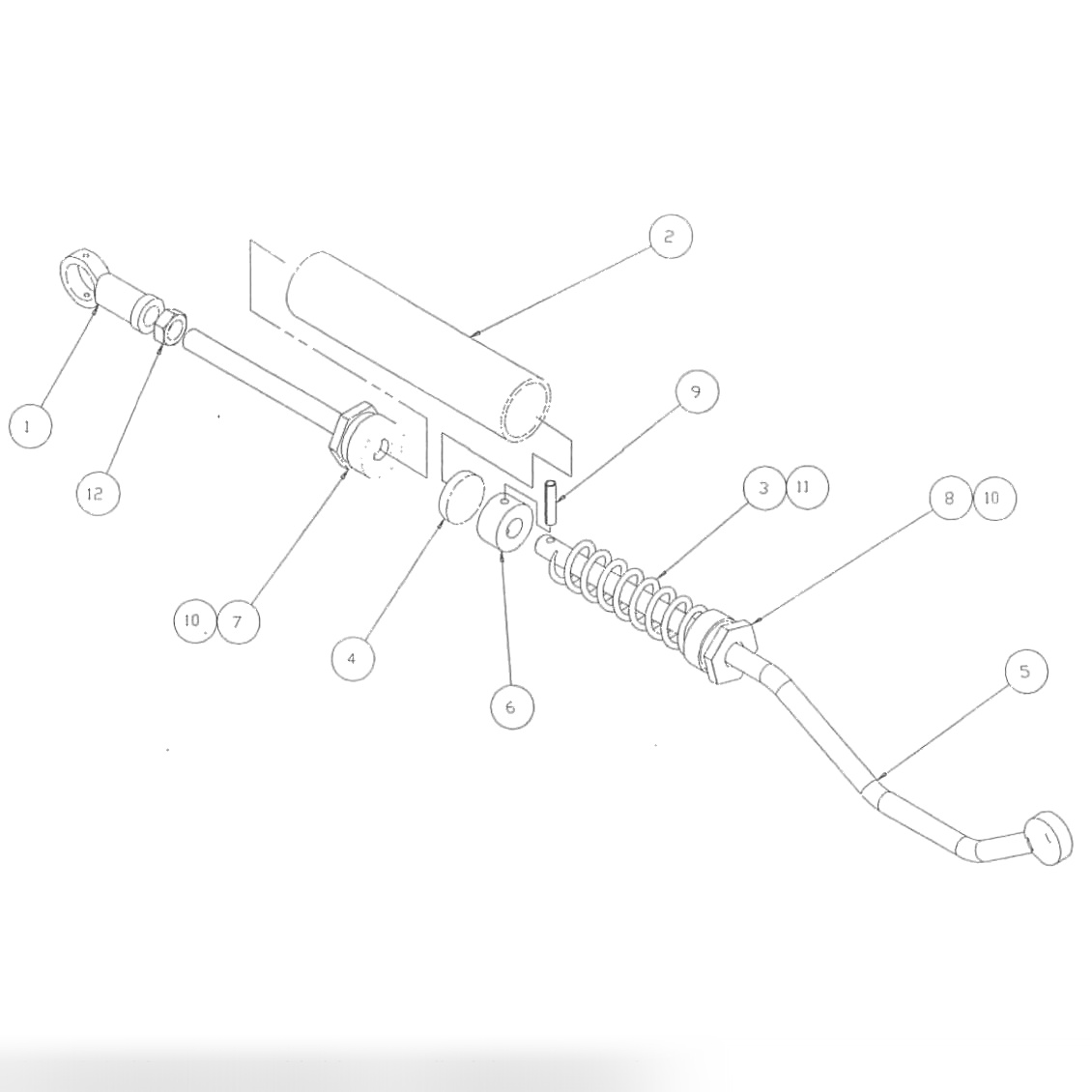

Connecting Rod Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090005268
|
1/2 Rod End Female |
| 2 |
090007329
|
Housing Spring |
| 3 |
090007251
|
Spring |
| 4 |
090007334
|
Linkage Dampener |
| 5 |
090007461
|
Rod Lower |
| 6 |
090007462
|
Spring Stop |
| 7 |
090007463
|
Rod, Upper Weldment |
| 8 |
090007466
|
End Cap, Lower |
| 10 |
700107146
|
Adhesive, Loctite, Blue |
| 11 |
715010307
|
Grease Lubrication |
| 12 |
835574002BG
|
Hex Finish Jam Nut, 1/2-20 Bg/10 |
| - |
090007249
|
Rod Upper Cradle |
