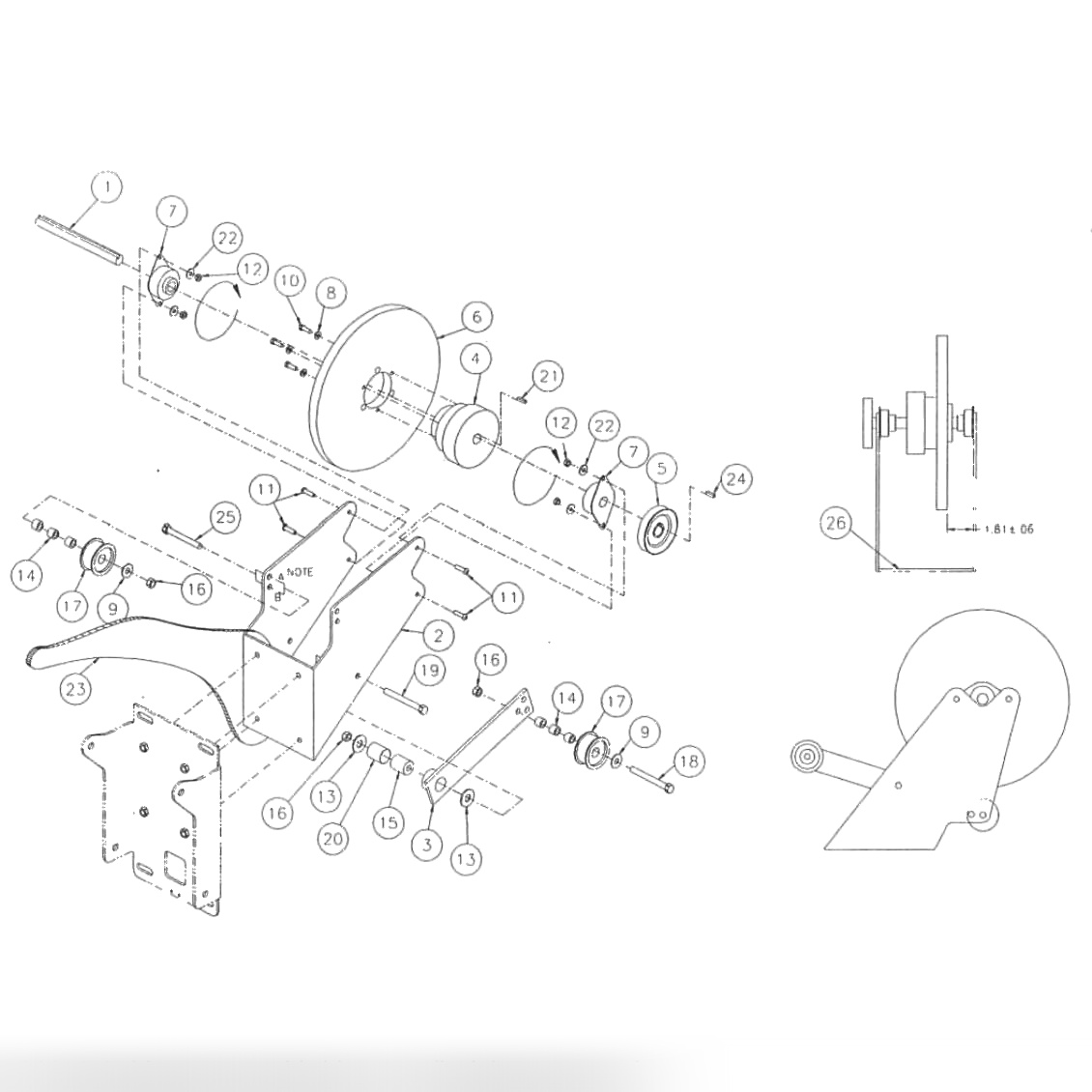

QubicaAMF Pinspotter Parts 8800 Horizontal Ball Return Clutch Assembly

Clutch Assembly

Позиция	Артикул	Наименование	Цена
№1	090007223	Clutch Axle	1 530 ₽
№2	090007221	Bracket	4 420 ₽
№3	090007014	Idler Arm	27 520 ₽
№4	090008870	Clutch Assembly Kit	106 250 ₽
№5	000022172	Sheave Back End Drive	4 030 ₽
№6	090007224	Pulley, Cradle Clutch	12 910 ₽
№7	717585003	Flange Bushing	10 080 ₽
№8	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)	410 ₽
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)	560 ₽
№10	808549080BG	Cap Screw, Button Head, 1/4-20 X 0.50 Bg/10	520 ₽
№11	808557120BG	Cap Screw, Button Head, 5/16-18 X 0.75 (Bag of 10)	1 000 ₽
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)	390 ₽
№13	945867242BG	Flat Washer 1.50 X 0.41 X 0.50, Plain Finish (Bag of 10)	1 100 ₽
№14	070008212	Spacer	390 ₽
№15	090007016	Spacer Idler .406 X .998 X 1.2	4 420 ₽
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)	530 ₽
№17	090004444	Idler Pulley	3 210 ₽
№18	809865565BG	3/8-16 x 3 1/2 Scr HH Bg/10	980 ₽
№18	809865565	Screw-Hex 3/8-16 X 3-1/2 (Bag 10)	0 ₽
№19	809865325BG	Cap Screw, Hex Head, 3/8-16 X 2.00 (Bag of 10)	950 ₽
№20	900116161	Bearing Sleeve 1 .00 ID	250 ₽
№21	907201100BG	Gear Shaft, Carpet drive Square Key (Bag of 10)	1 070 ₽
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)	270 ₽
№23	090007243	V-Belt	2 150 ₽
№24	907201900	Square Key, 0.19 X 1.38	90 ₽
№25	809865525BG	3/8-16 x 3 1/4 Scr Hx Bg/10	950 ₽
№25	809865525	3/8-16 X 3 1/4 Hex Screw	0 ₽
№26	090007262	Decal	0 ₽
