QubicaAMF Pinspotter Parts 8800 Front End Table Yoke with Spotting Cup Assembly

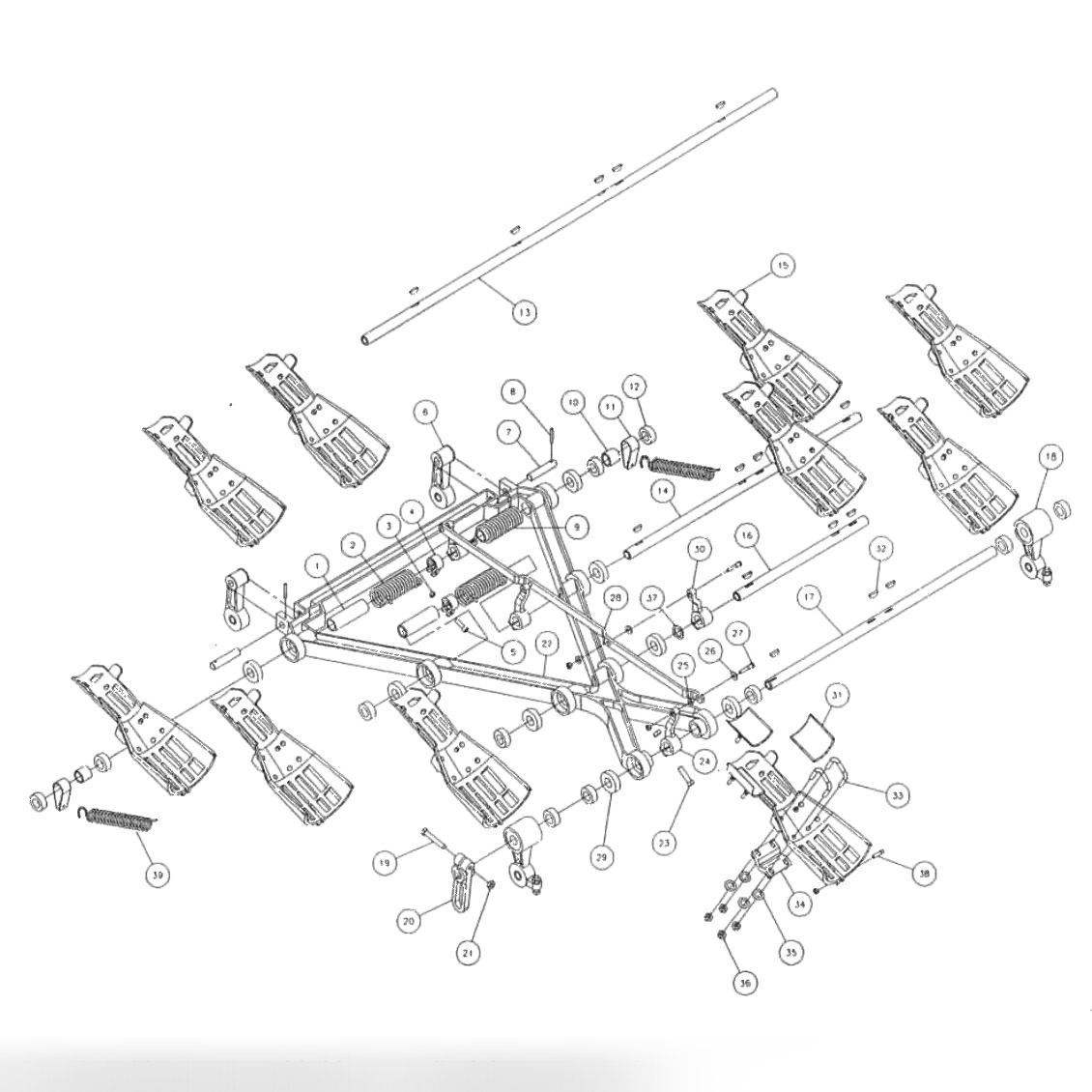

Yoke with Spotting Cup Assembly

Позиция	Артикул	Наименование	Цена
№1	070002719	Spring Sleeve	1 780 ₽
№2	070002688	Tension Spring Right Hand	1 700 ₽
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)	450 ₽
№4	090004033	Spring Retainer	1 990 ₽
№5	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)	420 ₽
№6	090005548	Rear Leg Asm	13 590 ₽
№7	070002609	Pin Lever Rear Yoke Assembly	920 ₽
№8	913437240BG	Spring Pin, 3/16 X 1-1/2 (Bag of 10)	670 ₽
№9	070002689	Tension Spring Left Hand	1 700 ₽
№10	900114161	Bushing, 0.88 X 1.13 X 1.00	390 ₽
№11	090005577	Spring Hook	1 080 ₽
№12	000025549	Set Screw Shaft Collar, 7/8"	580 ₽
№13	090005578	Shaft, #4	8 290 ₽
№14	070002617	Shaft #3 Yoke Assembly	7 070 ₽
№15	070002809	Spotting Cup	1 960 ₽
№16	070002616	Shaft #2 Yoke Assembly	5 710 ₽
№17	090005553	Shaft, #1	6 740 ₽
№18	090005545	Front Leg Assembly	17 430 ₽
№19	809865365BG	Cap Screw, Hex Head, 3/8-16 X 2.25 (Bag of 10)	2 120 ₽
№20	090005554	Arm Actuator	8 010 ₽
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)	1 850 ₽
№22	070002623BX	XFrame W Bearings Kit	39 480 ₽
-	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)	830 ₽
№24	070002602	Inner Lever Yoke	10 380 ₽
№25	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)	880 ₽
№26	701310036BG	Roller Bearing, Thrust, 0.31 X 0.75 X 0.13 (Bag of 10)	1 040 ₽
№27	070002723BG	Pin, Actuator Shaft, Bag of 10	2 510 ₽
№29	190001490	Ball Bearing, 0.87 X 1.88 X 0.50	1 600 ₽
№30	070002603	Outer Lever Yoke	8 900 ₽
№31	070002784	Spotting Cup Liner	260 ₽
№32	907000600BG	Hi-Pro Key, 706 (Bag of 10)	2 270 ₽
№33	070002787BG	Spotting Cup U Bolt Bag/2	1 250 ₽
№34	070002788	Spotting Cup Cap	1 000 ₽
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)	270 ₽
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)	390 ₽
№37	070002620	Spacer Yoke Assembly	1 000 ₽
№38	810249200BG	Cap Screw, Socket Head, 1/4-20 X 1.25 (Bag of 10)	510 ₽
№39	000026032	Spring - Lateral Drive	480 ₽
№40	070002612	Link Assembly	7 990 ₽
