QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Front End Table Table to Crossbeam Assembly

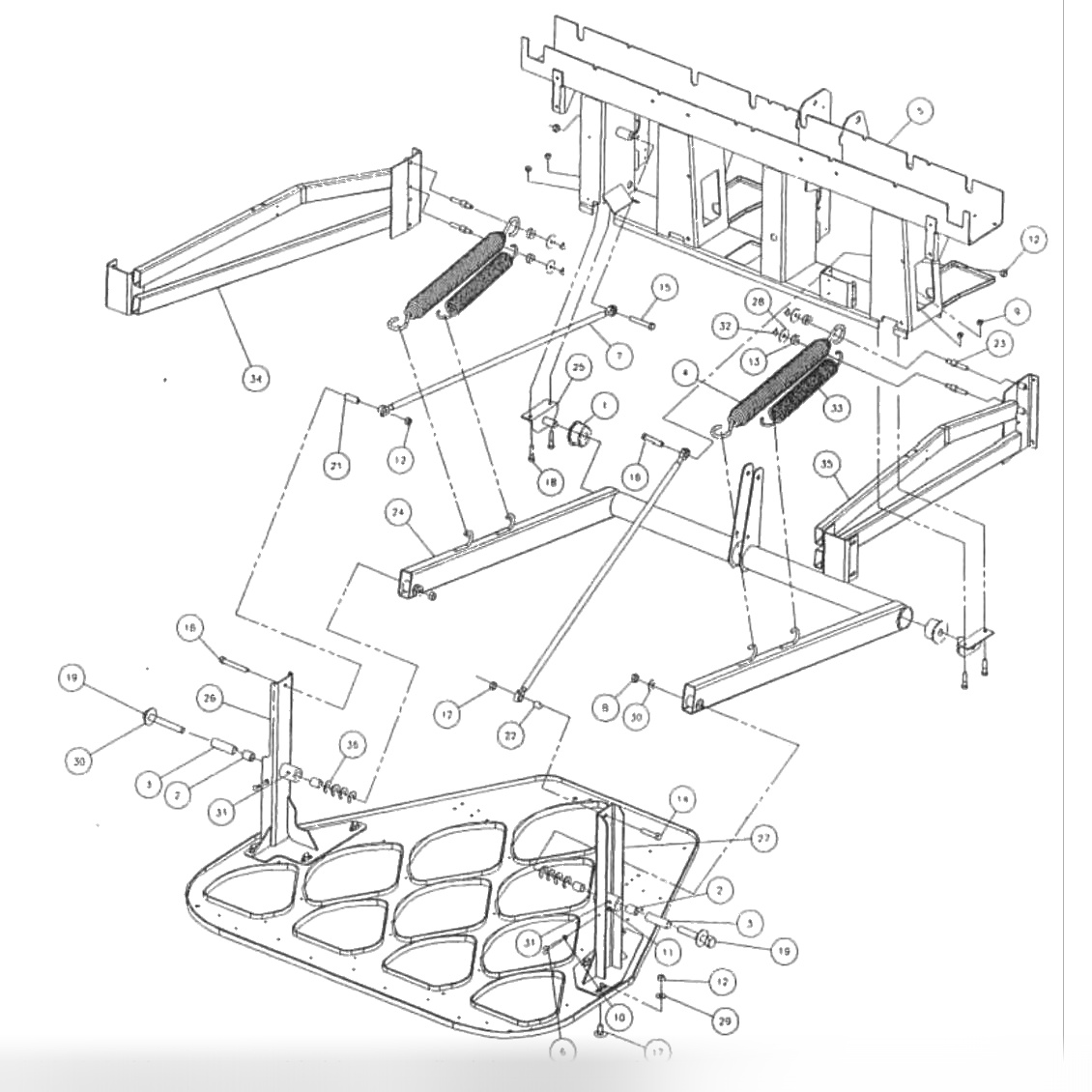

Table to Crossbeam Assembly

Позиция	Артикул	Наименование
1	090005015	Torque Tube Bearing
2	900114101BG	Bearing Sleeve, 0.88 X 1.13 X 0.63 (Bag of 5)
3	090005654	Sleeve, Upright, Female, Round Body, 0.63 X 0.87 X 2.16
4	000022782	Counter Balance Spring
6	879849487	Eye Bolt, 1/4-20 X 3.00, Zinc Finish
7	090005253	Tie Rod Assembly
8	844081002BG	Hex Lock Nut, 5/8-11 (Bag of 10)
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
10	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
12	844069002BG	Hex Lock Nut, 7/16-14 (Bag of 10)
13	090003795	Counterbalance Spring Roller
14	809869325BG	Cap Screw, Hex Head, 7/16-14 X 2.00 (Bag of 10)
15	809869365BG	Cap Screw, Hex Head, 7/16-14 X 2.25 (Bag of 10)
16	809869520	Cap Screw, Hex Head, 7/16-14 X 3.25
17	801369161	Carriage Bolt, 7/16-14 X 1.00, Grade 5, Black Oxide Finish
-	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
21	090005597	Leveling Spacer, Female, Round Body, 0.46 X 0.63 X 1.63
22	070007303	Spacer. 7/16 I.D.
23	090002028	Pin, Spring Roller
24	088005538	Torque Tube Weldment
25	090004007	Torque Tube Hanger Assembly
26	090005514	Table Support Weldment, 10 Pin Side
27	090005509	Table Support Weldment, 7 Pin Side
28	945867242BG	Flat Washer 1.50 X 0.41 X 0.50, Plain Finish (Bag of 10)
29	947271967	Flat Washer, 7/16 SAE, Zinc Yellow Finish
30	948983212BG	Flat Washer 1.31 X 0.66 X 0.09 (Bag of 10)
31	710501009	Grease Fitting
-	963400002BG	X-Washer, 3/16", 9000-12 (Bag of 10)
33	090005662	Counterbalance Spring, Small
36	070007752	Spacer Slotted Washer 0.64 X 1.25 X 0.06
-	070001557	Table Tie Rod
