QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Front End Table 7,8,9,10 Cell Assembly

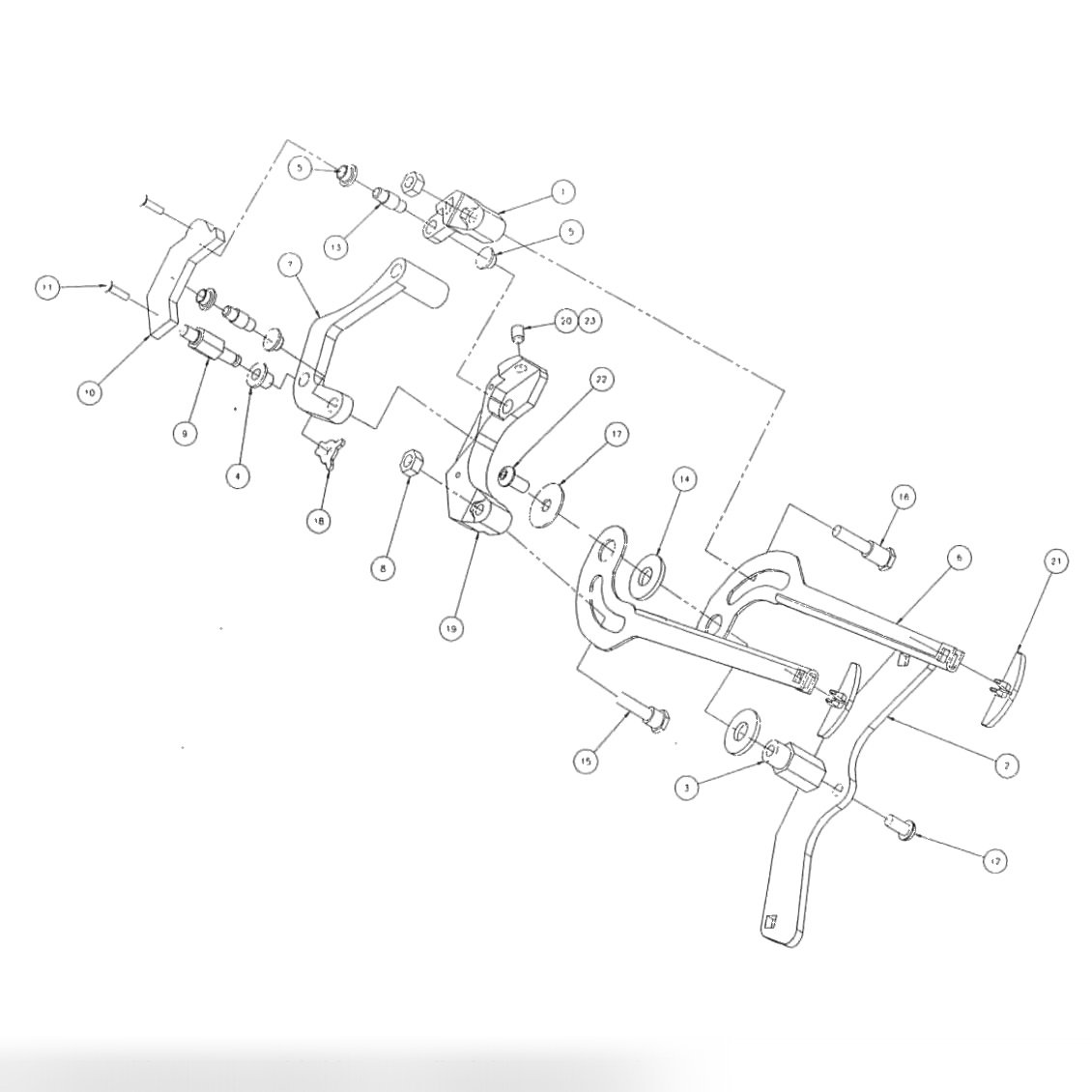

7,8,9,10 Cell Assembly

Позиция	Артикул	Наименование
1	090004113	Arm - Respot Yoke Assembly
2	612090078	Finger Pivot Replacement Kit
2	090005663	Finger Pivot Wing II
3	090005522	Respot Finger Bushing
4	070002653BG	Flange Bushing, 0.25 X 0.31 X 0.38 (Bag of 20)
5	070002630BG	Flange Bushing, 0.25 X 0.31 X 0.22 (Bag of 20)
6	090004123	Respot Finger
7	070002651	Respot Lever
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
9	090005571	Pin 8-9-10 Links
10	070002644	Rop Plate Assembly - Respot Yoke
11	070002750BG	Respot Yoke Screw, Flat Head (Bag of 10)
12	809149100	Cap Screw, Button Head, Hex Socket Drive, 1/4-20 X 0.63
13	070002645	Shaft - Respot Lever
14	070007193	Spacer, Respot Cell, Bag Of 10
14	V070007193	Spacer Nylon Washer Bag/10
15	070007195BG	Stud, Short Respot Cell (Bag of 5)
16	090005640	Shoulder Bolt, Hex Head, 1/2 X 1.43
17	070007192BG	Respot Cell Assembly Flat Washer (Bag of 10)
18	963200002BG	X-Washer, 1/8", 9000-8 (Bag of 10)
19	090004118	Yoke Assembly - Respot Cell (Steel Table)
20	807650050	Set Screw, Hex Socket Drive Flat Point, 1/4-28 X 0.31
21	090005617	Finger Glide Insert (Steel Table)
-	070002840	Arm, Respot Yoke Assembly
