QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Front End Sweep Sweep Arm Assembly #1

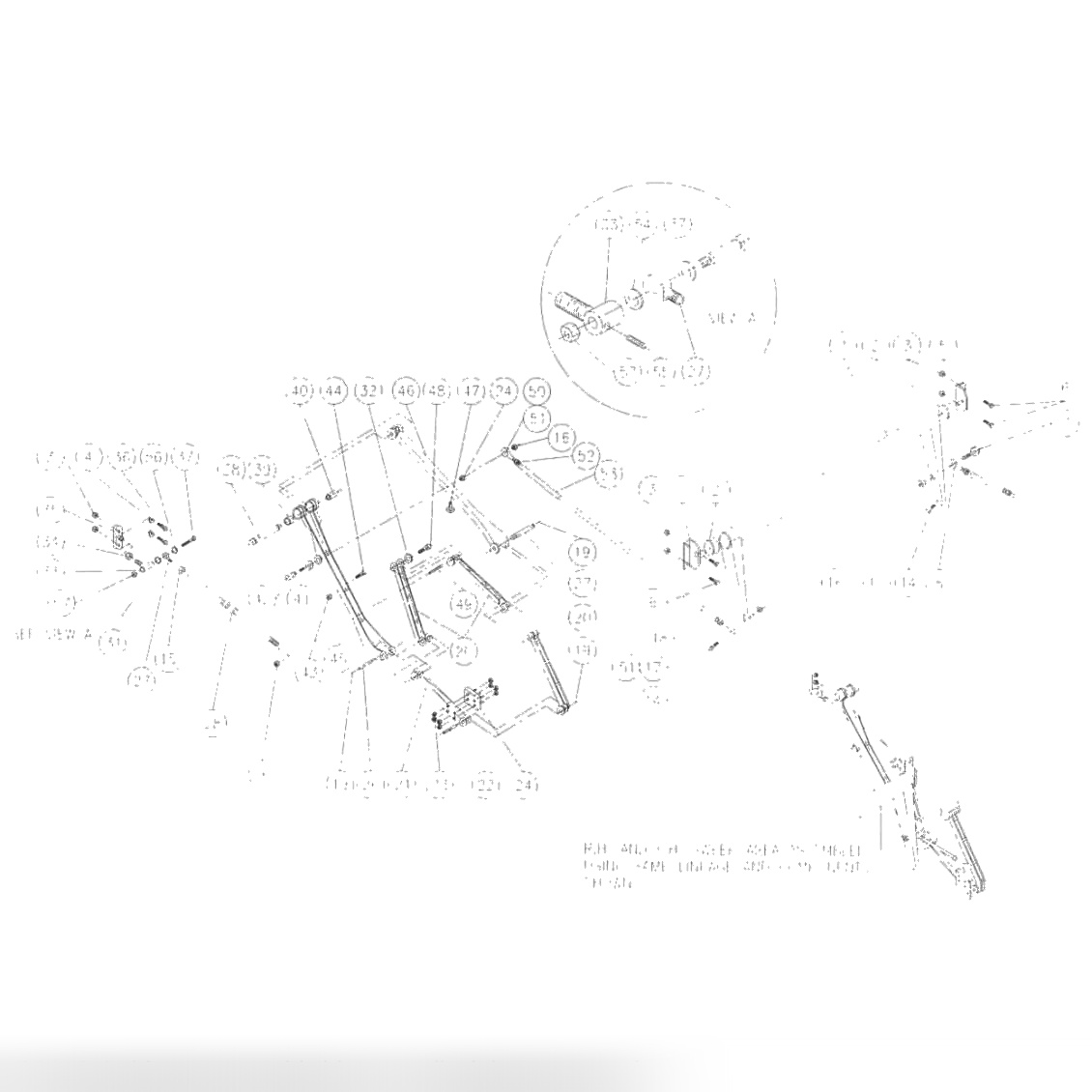

Sweep Arm Assembly #1

Позиция	Артикул	Наименование
1	088002232	Sweep Rocker Arm Assembly
2	090005015	Torque Tube Bearing
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
5	090004007	Torque Tube Hanger Assembly
6	809865285	Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
7	070003243	Cap Screw, Hex Head, 1/2-13 X 2.00
8	088001353	Tie Rod Assembly
14	809869365BG	Cap Screw, Hex Head, 7/16-14 X 2.25 (Bag of 10)
15	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
16	844069002BG	Hex Lock Nut, 7/16-14 (Bag of 10)
17	090005254	Drive Link Connecting Rod
19	919010700BG	E-Ring, #5133-62 (Bag of 10)
20	090003901	Link Assembly
21	090003902	Support Link Assembly
22	070003189	Pin Bearing Sweep Link
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
24	070003195	Shock Mount - Sweep
26	070003103	Pin Bearing - Sweep Link
27	090003906	Joint Assembly
28	070007278	Tube Weldment
29	070007283	Bumper - Link Assembly
30	070007276	Rod Link Assembly
31	949100002BG	Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
33	090003907	Threaded Sweep Link
34	835582002	Hex Finish Jam Nut, 5/8-18
35	610704164	Shock Bracket Replacement Kit
36	809865565BG	3/8-16 x 3 1/2 Scr HH Bg/10
36	809865565	Screw-Hex 3/8-16 X 3-1/2 (Bag 10)
37	808465080	Shoulder Bolt, Socket Head, Hex Socket Drive, 1/2 X 1.75
38	070003106	Main Pivot Shaft
39	070003233	Main Pivot Spacer, Short
40	070003232	Main Pivot Spacer, Long
41	070003117	Drive Link Spacer
42	070003231	Bearing
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
44	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
45	070003158	Drive Link - Sweep
46	070003238	Sweep Stabilizer Link Assembly
47	000023279	Urethane Bumper - Sweep Link
48	070003235	Cap Screw, Hex Head, 7/16-14 X 3.13, Grade 8
49	070003173	Bearing Sleeve, 0.44 X 0.63, Lg
50	070007280	Sweep Link Assembly Teles
55	807358060BG	Set Screw, Socket Head Cup Point, 5/16-24 X 0.38 (Bag of 10)
56	701316041BG	Roller Bearing, Thrust, 0.51 X 1.00 X 0.13 (Bag of 10)
57	840065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
58	835570002BG	Hex Finish Jam Nut, 7/16-20, Right Hand Thread (Bag of 10)
59	090005257	7/16 Rod End RH
-	809869520	Cap Screw, Hex Head, 7/16-14 X 3.25
