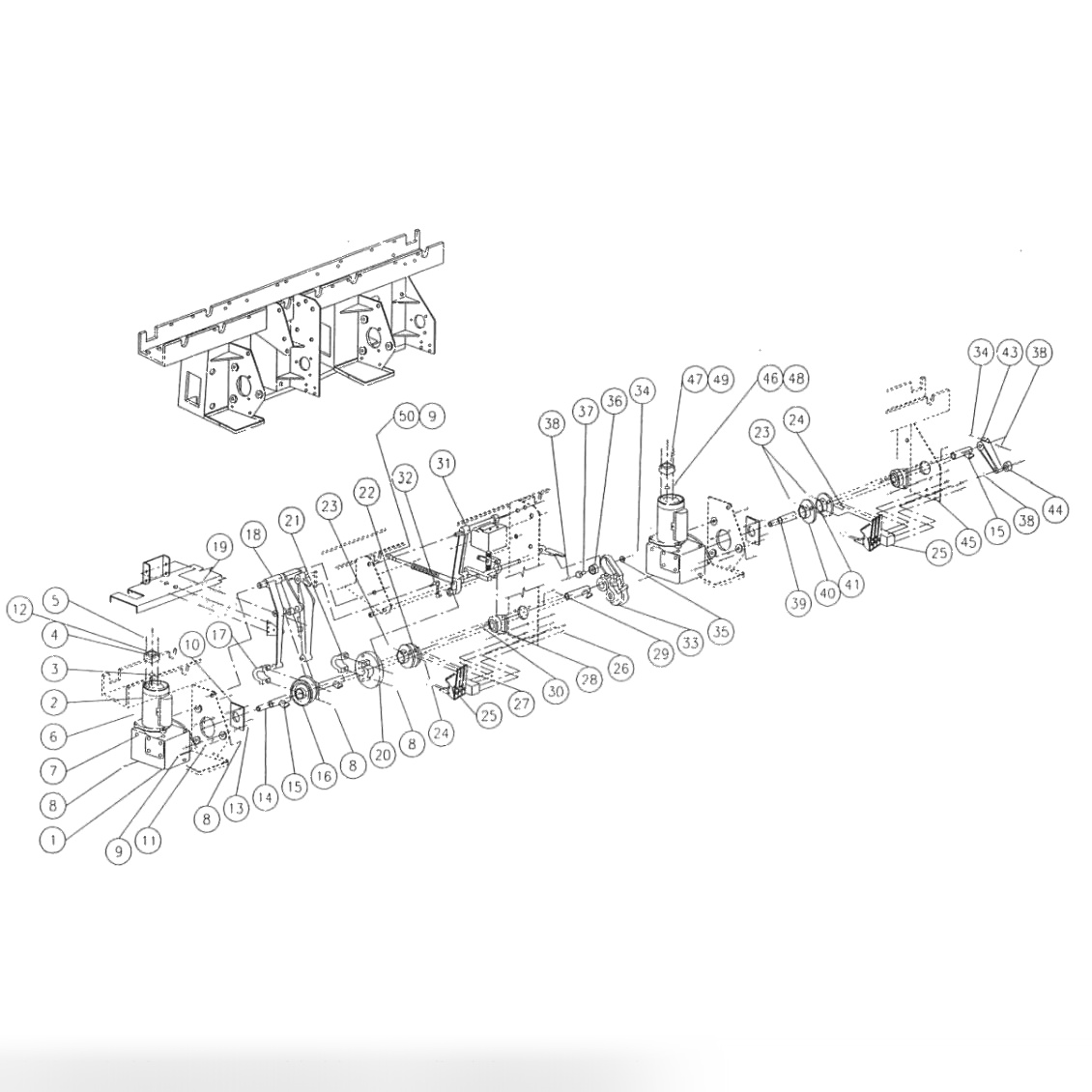

Front End Drive Assembly

Позиция	Артикул	Наименование
1	088004609BX	FE Gearbox, 50Hz, Boxed
1	088004604BX	Front End Gearbox, 60Hz, Boxed
2	090004548	Combination Motor - Small Plug (50Hz)
2	090004547	Motor FE 60 Hz
2	090004547-01	Motor, Front End, 60Hz
4	090004516	Drag Brake - Drop In
5	090003557	Drag Brake Retainer
6	809865285	Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
8	810265280BG	Cap Screw, Socket Head, 3/8-16 X 1.75 (Bag of 10)
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
10	070006765	Shaft Plate
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
12	01355	Self Tapping Screw, Flat Head, #6 X 0.25
12	822626042	Self Tapping Screw, Pan Head, #6 X 0.25
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
14	090005565	Table Drive Shaft
15	907000900BG	Hi-Pro Key, 910 (Bag of 10)
16	610070303	Steel Table Conversion Kit
19	070001707	Tension Spring, Spot and Respot Arms
20	070006427	Shuttle Cam
21	070006481	Spot Link Assembly
22	070006417	Table Cam Weldment
23	070001664	CL AMP Stud- Cam
24	834549002BG	Nut: 1/4-20, Hex
24	834549002	Hex Finish Nut, 1/4-20, Cadmium
25	000021645	Lever Assembly-Switch
26	818239122BG	#10-24 x 3/4 Scr SMRD+ Bg/10
26	818239122	SCR-SMRD+ 10-24X3/4
27	843139002BG	Keps Nut, 10-24 (Bag of 10)
28	701420034	Ball Bearing, Flange, 3 Bolt Flange
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
32	070006493	Ball Joint Assembly
33	090005550	Table Drive Assembly - Steel Table
34	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)
35	070007311	Sleeve, Table Drive Assembly
36	190001490	Ball Bearing, 0.87 X 1.88 X 0.50
37	070007310	Flange Bushing, 0.50 X 0.88 X 1.20
38	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
39	070001699	Sweep Shaft
40	070006450	SA Sweep Cam Weldment
41	070006449	SB and SC Sweep Cam Weldment
43	000023139	Crank Arm (8270)
44	070003243	Cap Screw, Hex Head, 1/2-13 X 2.00
45	250001544	Outlet Cover Spacer 0.26 X 0.50 X 0.25
46	090005877	Mounting Plate
47	090005875	Motor Receptacle
48	818227082BG	Machine Screw, Pan Head, 6-32 X 0.50 Sems Bg/10
49	818227062	Machine Screw, Round Head, Phillips Drive, 6-32 X 0.38
50	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
-	090004504	Gearbox FE 60 Hz
-	090004557	End Bell Assembly 50 and 60Hz PSP
-	088004716	Coupling Replacement Kit
-	088004715	SEAL REPAIR KIT
-	715021717	Gearbox Oil SHC634
