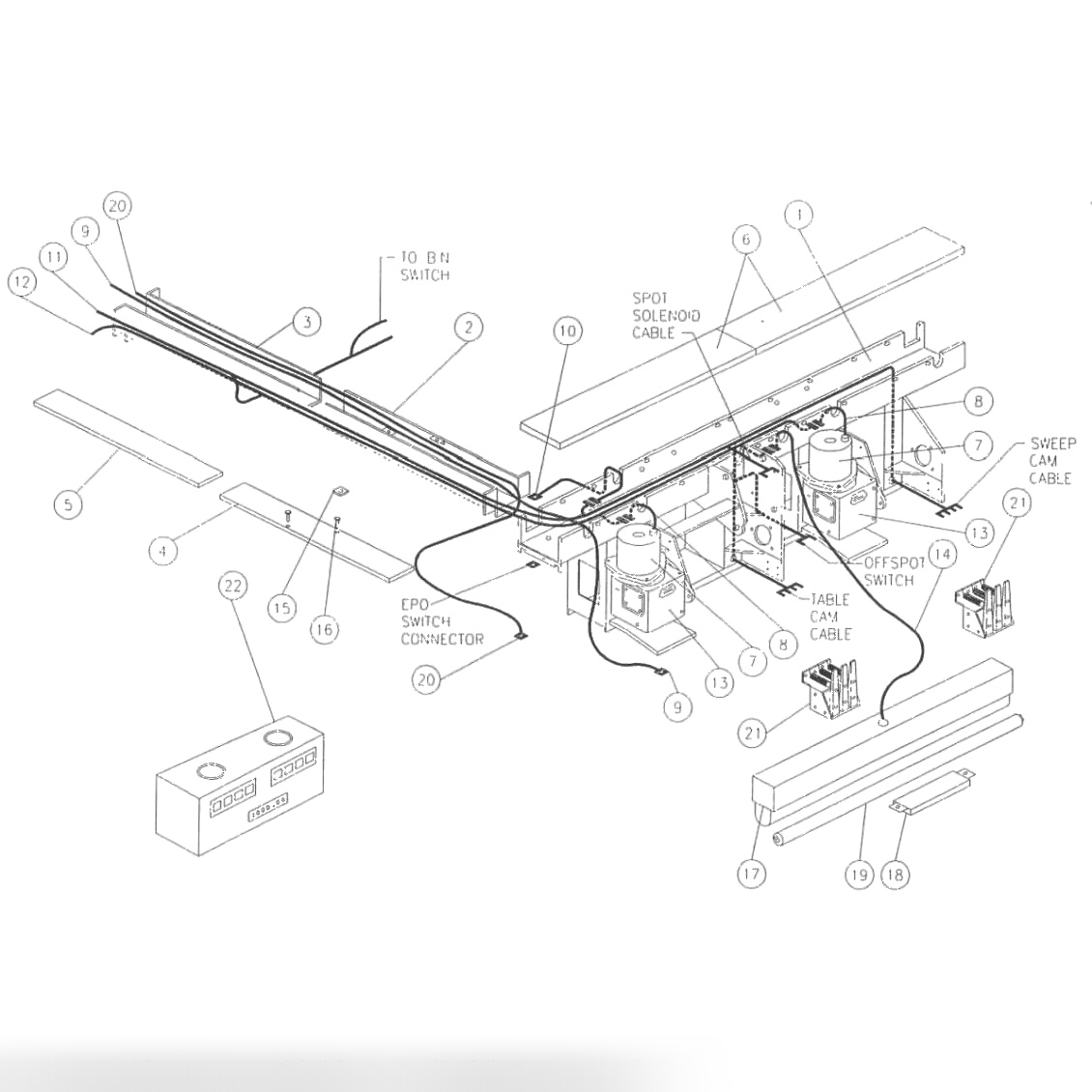

Front End Electrical Installation Assembly - Right Hand
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090005053
|
Crossbeam Cover |
| 2 |
090005876
|
Motor Cable, Small Plug |
| 3 |
090005734
|
Pinsensing Kit (9 Pin Cable) |
| 4 |
090005759
|
Odd Logic Cable |
| 5 |
090005763
|
Odd Power Cable |
| 6 |
090003703
|
Dual Pit Light Cable - Used On Items 10, 11, and 13 |
| 7 |
090003803
|
Pit Light Assembly, 240V, 60Hz |
| 8 |
070005685
|
Universal Pit Light |
| 8 |
751001526
|
115 V 50 HZ Lamp Fixture |
| 10 |
090005733
|
Front End Box Communication Cable |
| 11 |
090005765
|
FE Box S/F |
| 12 |
000021645
|
Lever Assembly-Switch |
| 13 |
090005054
|
Grommet |
| 19 |
751001254
|
Lamp, Daylight, F30t 12/Dirs |
| - |
275002013
|
Universal Pit Light Interface Assembly |
