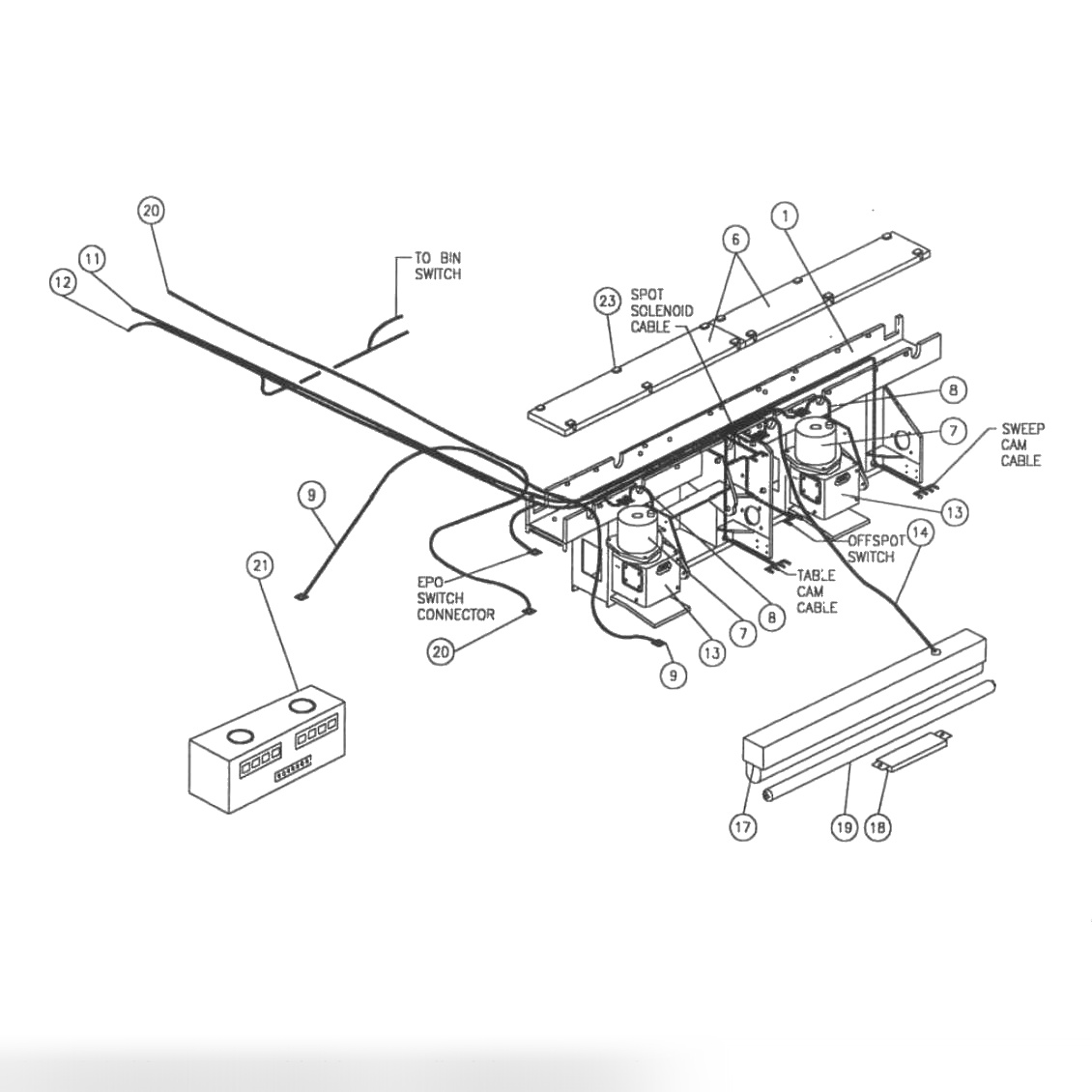

Front End Electrical Installation Assembly - Left Hand
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090005027
|
Crossbeam Cover |
| 2 |
090005876
|
Motor Cable, Small Plug |
| 3 |
090005758
|
Even Logic Cable - Not Shown |
| 4 |
090005762
|
Even Power Cable - Not Shown |
| 5 |
090003703
|
Dual Pit Light Cable - Used On Items 10, 11, and 13 |
| 6 |
090003803
|
Pit Light Assembly, 240V, 60Hz |
| 7 |
070005685
|
Universal Pit Light |
| 7 |
751001526
|
115 V 50 HZ Lamp Fixture |
| 8 |
751001254
|
Lamp, Daylight, F30t 12/Dirs |
| 9 |
090005054
|
Grommet |
| - |
090003053
|
Sensor Cable Assembly Cradle Sensor |
| - |
275002013
|
Universal Pit Light Interface Assembly |
