QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Distributor Distributor #2 Assembly

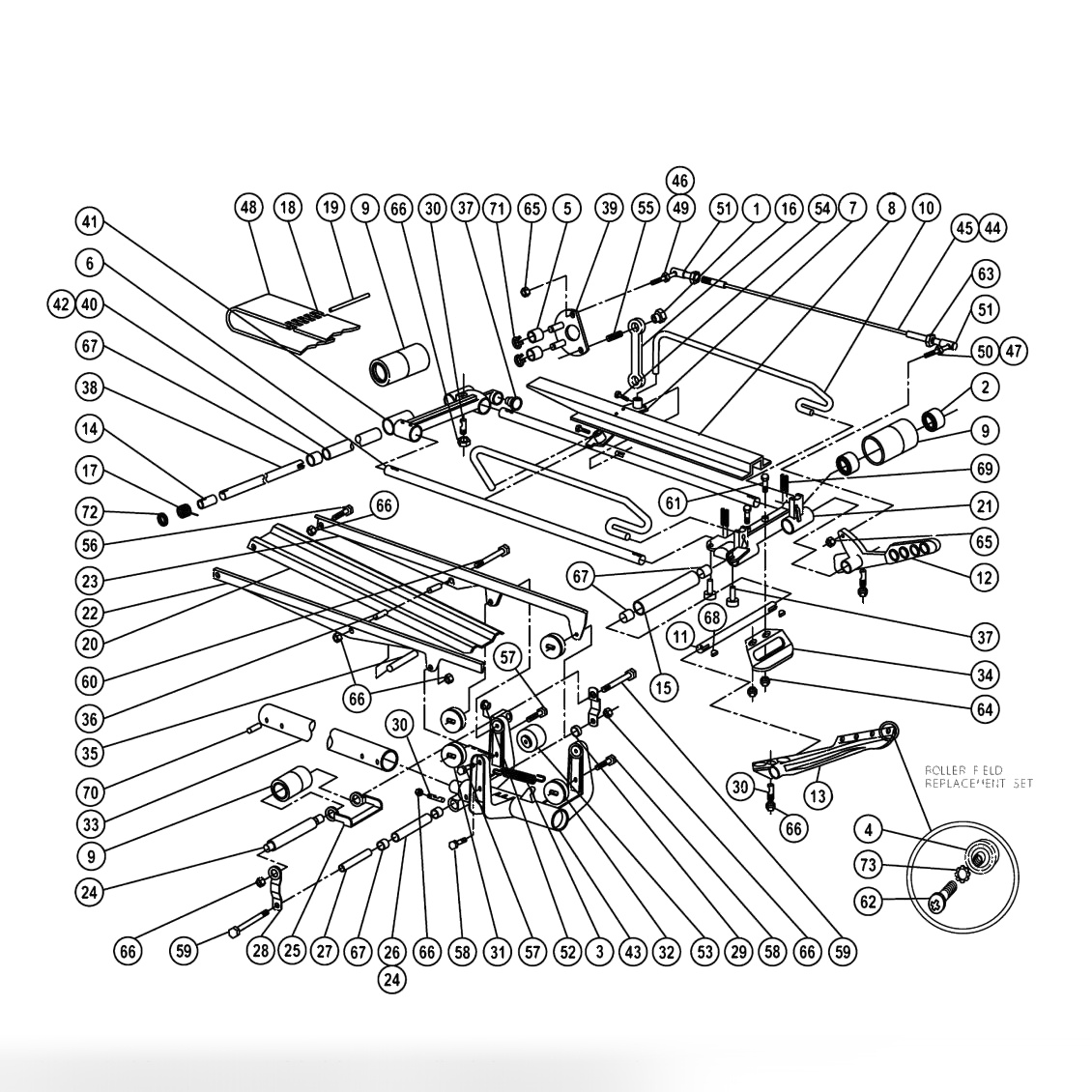

Distributor #2 Assembly

Позиция	Артикул	Наименование
1	000022173	Hex Flange Nut, Roller Drive Assembly
2	000024679	Ball Bearing, Double Seal, 0.625 X 1.375
3	000026031	Tension Spring, Distributor Belt
4	000026251BG	Roller Bearing, Threaded (Bag of 10)
5	070001857BG	Roller Bearing, Nylon Finish (Bag of 2)
6	070006004	Carriage Tube - Distributor
7	070006007	Support Weldment
8	070006009	Belt Runner Support Assembly
9	070006011	Pulley Assembly
10	070006013	Pin Guide
11	070006014	Shaft Trip Arm Pivot
12	070006015	Trip Arm Assembly (10-Pin Side)
13	070006016	Trip Arm Assembly (7-Pin Side)
14	070006019	Spring Collar
15	070006021	Tube Assembly, Front
16	070006029	Connecting Link
17	070006035	Spring - Distributor Carriage
18	070006036BG	Lacing for Distributor Belt Bg/10
19	070006037BG	Rough Top Distributor Belt Pin for Lacing Bg/10
20	070006042	Belt Runner, Rear
21	070006055	Carriage, Front
22	070006103	Support Guide Left Hand and Right Hand (7-Side)
23	070006104	Support Guide Left Hand and Right Hand (10-Side)
24	070006105	Tube Assembly
25	070006106	Tracking Bracket - Distributor
26	070006107	Belt Tightener Tube
27	070006108	Spacer
28	070006109	Link - Roller Assembly - Distributor
29	070006111	Spring Post Sleeve
30	070006116	Stud Clamp - Carriage
31	070006117	Concentric, Distributor Bearing, Deep Groove
32	070006118	Eccentric, Distributor Bearing, Deep Groove
33	070006120	Carriage Support Tube
34	070006137	Belt Guard
35	070006139	Inner Spacer
36	070006140	Outer Spacer
37	070006142BG	Bumper, Bg/10
38	070006659	Shaft Trip Rocker Assembly
39	070006661	Trip Rocker Arm Weldment
40	070006671	Tube, Middle
41	070006672	Carriage Casting, Rear
42	070006683	Tube Assembly, Middle
43	070006688	Carriage Support Casting Assembly
44	070011170	Trip Cable
45	070011171	Cable
46	070011172	Ball Joint Assembly
47	070011173	Ball Joint Assembly
48	070011909	POLY-V Distributor Belt (8270-Later)
49	090004110	Ball Head Stud
50	090004111	Ball Head Stud
51	090004112	Shell and Clip Assembly
52	701710098	Spyralign Bearing
53	701849124	Ball Bearing, Threaded Bore
54	806249060BG	Set Screw, Square Head Cup Point, 1/4-20 X 0.38 (Bag of 10)
55	807249160BG	Set Screw, Socket Head Cup Point, 1/4-20 X 1.00 (Bag of 10)
56	808549200BG	Cap Screw, Button Head, 1/4-20 X 1.25 Bg/10
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
-	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)
59	809849605BG	Cap Screw, Hex Head, 1/4-20 X 3.75 (Bag of 10)
60	809849885BG	1/4-20 x5 1/2 Scr Hx Bg/10
60	809849885	Screw, Hex Hd, 1/4-20 X 5-1/2", Bag Of 10
61	810239160BG	Cap Screw, Socket Head, 10-24 X 1.00 (Bag of 10)
62	813540082BG	Screw, Pan Head, 10-32 X 0.50, Cadmium (Bag of 10)
63	835550002BG	Hex Finish Jam Nut, 1/4-28 (Bag of 10)
64	840039002BG	Hex Lock Nut, 10-24, TN (Bag of 10)
65	840040002BG	Hex Lock Nut, 10-32, TN (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
67	900106081BG	Bearing Sleeve, 0.38 X 0.50 X 0.50, Bronze (Bag of 5)
68	907000100BG	Hi-Pro Key, 403 (Bag of 10)
69	913437140BG	Spring Pin, 3/16 X 7/8 (Bag of 10)
70	913464280BG	Spring Pin, 3/8 X 1-3/4 (Bag of 10)
71	919005600BG	Snap (External) Ring, #5100-62 5/8" (Bag of 10)
72	919006800BG	Push-On (External) Ring, #5115-37 (Bag of 10)
73	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
-	070006201	Belt Guide
-	070006757	Rough Top Distributor Belt (Individual)
-	070011905	Grey Gripper Distributor Belt Kit
-	070011912	Unibar Belt Lacing and Pin, Pack of 12
-	610709811	Rough Top Distributor Belt (3-Pack w/Laces)
