QubicaAMF Pinspotter Parts 8800 Distributor Distributor #1 Assembly

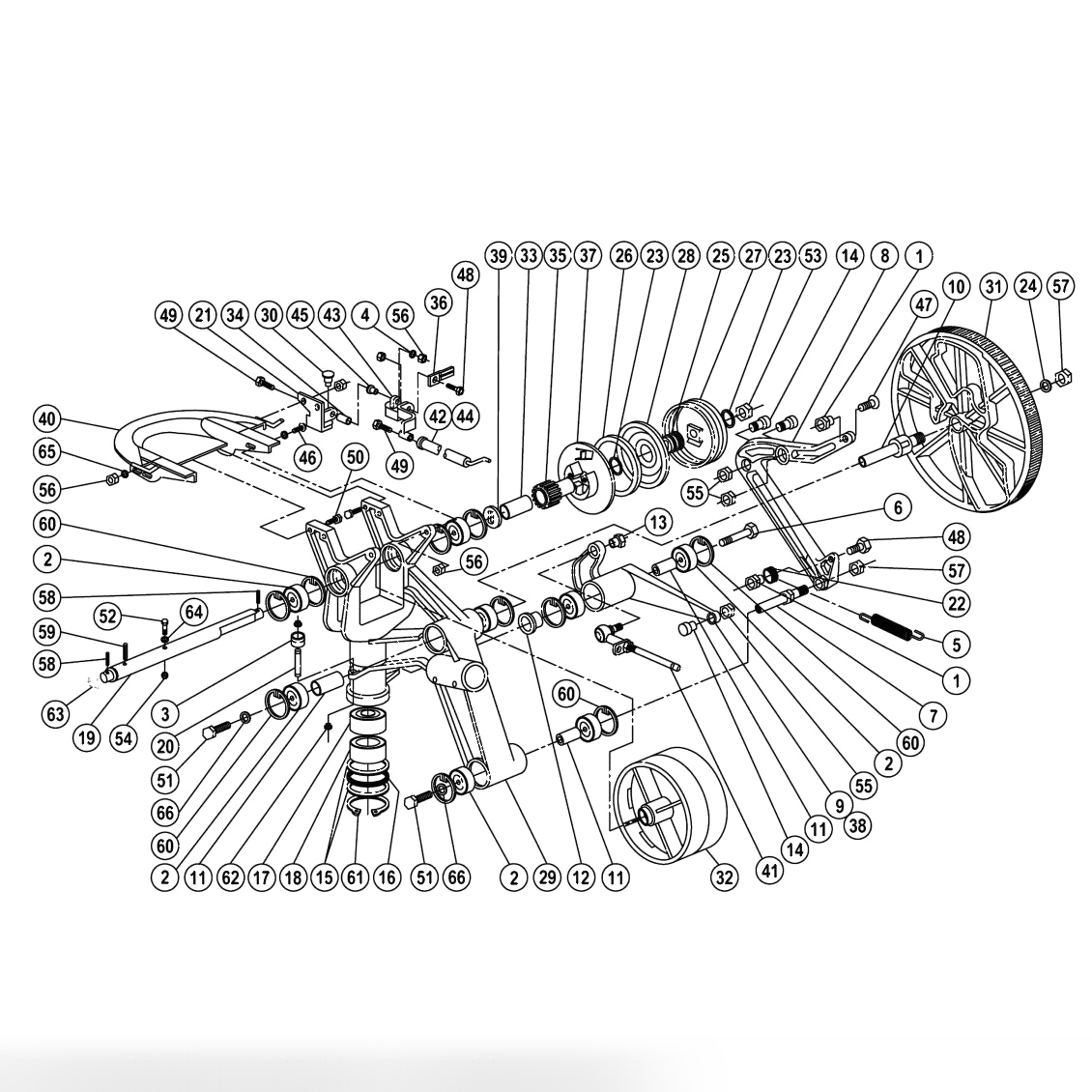

Distributor #1 Assembly

Позиция	Артикул	Наименование	Цена
№1	000022173	Hex Flange Nut, Roller Drive Assembly	900 ₽
№2	000024679	Ball Bearing, Double Seal, 0.625 X 1.375	820 ₽
№3	000026081	Spring Post Sleeve	490 ₽
№4	000026865BG	Flat Washer 0.25 X 0.41, Cadmium (Bag of 10)	510 ₽
№5	070006034	Linear Spring - Distributor	470 ₽
№6	070006048	Cap Screw, Hex Head, 5/8-11 X 5.00, Grade 8	370 ₽
№7	070006049	Shaft, Arm	1 890 ₽
№8	070006051	Distributor Arm	4 340 ₽
№9	070006052	Drive Arm	4 850 ₽
№10	070006061	Cam Support Shaft	1 990 ₽
№11	070006064	Spacer Bearing Distributor Assembly	590 ₽
№12	070006065	Race Clamp	1 050 ₽
№13	070006069	Hex Flange Nut	460 ₽
№14	070006071	Cam Follower	2 160 ₽
№15	070006073	Thrust Washer	490 ₽
№16	070006074	Roller Bearing, Thrust, 1.25 X 1.91	520 ₽
№17	070006075	Roller Bearing, Closed End, 1.00	2 390 ₽
№18	070006076	Roller Bearing, Open End, 1.00	1 640 ₽
№19	070006077	Drive Shaft - Distributor	5 840 ₽
№20	070006082	Spring Post Pin	950 ₽
№21	070006084	Trip Stop Support Bracket	950 ₽
№22	070006111	Spring Post Sleeve	470 ₽
№23	070006121BG	Distributor Clutch Assembly Flat Washer (Bag of 10)	730 ₽
№25	070006125	Worm - Distributor Clutch	600 ₽
№26	070006126	Friction Disc	550 ₽
№27	070006128	Spring Assembly - Distributor Drive	2 780 ₽
№28	070006130	Clutch Plate	650 ₽
№29	070006136	Casting and Bearing Assembly	39 200 ₽
№30	070006142BG	Bumper, Bg/10	1 130 ₽
№31	612088501	Edge Performance Cam Upgrade Kit	19 180 ₽
№32	070006666	Pulley, Distributor Drive Belt	3 080 ₽
№33	070006676	Sleeve and Bushing - Pinion (Sleeve)	1 810 ₽
№34	070006685	Sleeve Bearing for Pivot Trip Assembly	640 ₽
№35	070006686	Pinion Gear Assembly	5 510 ₽
№36	070006691	Stop Blades	1 140 ₽
№37	070006692	Clutch Plate Assembly	3 350 ₽
№38	070007119	Drive Arm Assembly	8 780 ₽
№39	070007376BG	Thrust Washer (Bag of 5)	2 010 ₽
№40	090003077	Orientor Pan	17 900 ₽
№41	090005262	Rod Link Assembly	3 920 ₽
№41	090005267	Rod End 3/8 Female RH	1 560 ₽
№42	090006663	Trip Stop Rod Assembly	9 580 ₽
№43	090006665	Trip Support Casting Assembly	2 150 ₽
№44	090006668	Trip Rod and Casting Assembly	16 780 ₽
№45	701712097	OI SP Bushing, 0.38 X 0.63, Brass Finish	810 ₽
№46	808549200BG	Cap Screw, Button Head, 1/4-20 X 1.25 Bg/10	1 840 ₽
№47	808849100BG	Cap Screw, Flat Head, 1/4-20 X 0.63 Bg/10	740 ₽
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75	90 ₽
-	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)	420 ₽
№50	809849205BG	Cap Screw, Hex Head, 1/4-20 X 1.25 (Bag of 10)	1 260 ₽
№51	809857080BG	Cap Screw, Hex Head, 5/16-18 X 0.50 (Bag of 10)	760 ₽
№52	810239240BG	Cap Screw, Socket Head, 10-24 X 1.50 (Bag of 10)	830 ₽
№53	835582002	Hex Finish Jam Nut, 5/8-18	100 ₽
№54	840039002BG	Hex Lock Nut, 10-24, TN (Bag of 10)	920 ₽
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)	450 ₽
№57	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)	890 ₽
№58	913437140BG	Spring Pin, 3/16 X 7/8 (Bag of 10)	390 ₽
№59	914037206BG	Spirol Spring Pin, 3/16 X 1-1/4 (Bag of 10)	1 340 ₽
№59	914037206	Spring Pin, 3/16 X 1-1/4 - Bag Of 10	0 ₽
№60	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)	920 ₽
№61	919004200BG	Snap (External) Ring, #5008-212 Bg/10	2 460 ₽
№62	919005300BG	Snap (External) Ring, #5100-37 (Bag of 10)	910 ₽
№63	919005600BG	Snap (External) Ring, #5100-62 5/8" (Bag of 10)	480 ₽
№64	948745082BG	Flat Washer 0.22 X 0.50 X 0.06 (Bag of 10)	1 620 ₽
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)	300 ₽
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)	270 ₽
-	070009890	Simplified Clutch Assembly	15 860 ₽
-	070009893	Bearing Clutch Pinion	3 300 ₽
-	088000156	Distributor Drive Pin ASM	450 ₽
