QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Pin Elevator Wheel Assembly

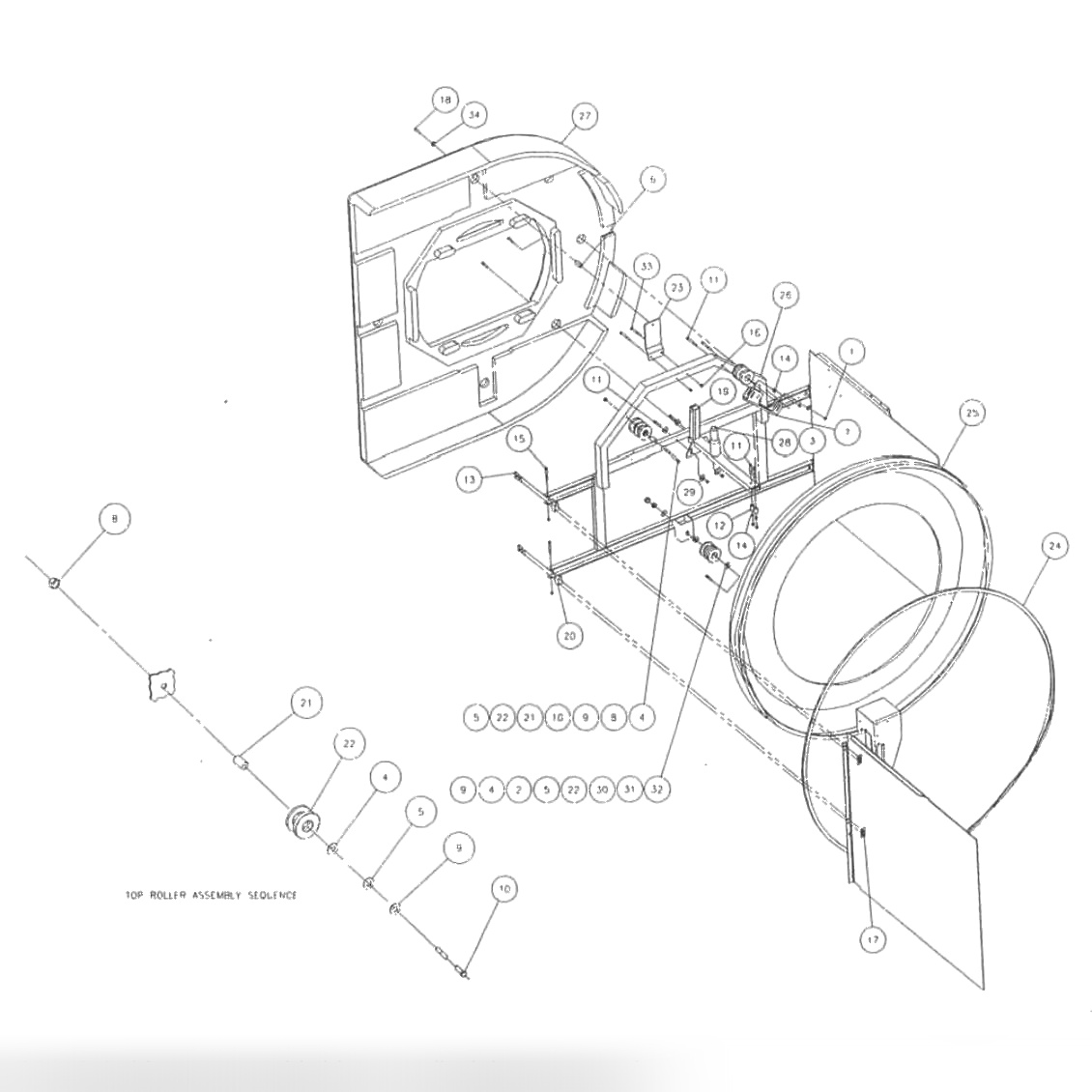

Pin Elevator Wheel Assembly

Позиция	Артикул	Наименование
1	834557002BG	Hex Finish Nut, 5/16-18 (Bag of 10)
2	880781240	Shoulder Bolt, Socket Head, Hex Socket Drive, 3/4 X 1.50
3	700107701	609 Loctite
4	000027642	Front Roller Flat Washer 0.76 X 1.25 X 0.05
5	950001008	Flat Washer 0.77 X 1.25 X 0.08, Nylon Finish , F/LO
6	090007241	.34 x .5 x .88 Split Spacer
7	090005120	Rail Standoff Bracket
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
9	947367141	Flat Washer 3/8 X 0.43 X 0.41 X 0.13 USS, Black Oxide Finish
10	809865725BG	Cap Screw, Hex Head, 3/8-16 X 4.75 (Bag of 10)
11	809857365	Cap Screw, Hex Head, 5/16-18 X 2.25
12	070008449	Spacer Distributor Support
13	809857325BG	Cap Screw, Hex Head, 5/16-18 X 2.00 Bg/10
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
15	809857405BG	5/16-18 x2 1/2 Scr Hx Bg/10
15	809857405	Screw, hex, 5/16 - 18 x 2-1/2, Bag Of 10
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
17	090005123	Nut plate
18	826057242	Self Tapping Screw, Hex Washer, 5/16-18 x 1.50
19	090003112	Distributor Mount
20	090005106	Hinge Spacer
21	090003116	Spacer
22	090007327	Pin Elevator Roller
23	090003111	Upper Guard Support
24	090002065	Pin wheel belt
25	090004041	Pin wheel weldment, Left Hand Machine (even)
25	090004042	Pin wheel weldment, Right Hand Machine (odd - not shown)
26	090003102	Hoop Weldment
27	090007947	Pinwheel Guard RH
27	090007948	Pinwheel Guard LH
28	070006045	Distributor Support Post
29	947356617	Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish
30	948809210	Flat Washer 0.66 X 0.63 X 0.09 , GRA
32	840381002BG	Hex Lock Nut, 5/8-11, TK (Bag of 10)
33	809857445	Cap Screw, Hex Head, 5/16-18 X 2.75
34	090004055	Flat Washer 0.34 X 2.00 X 0.09, Black Oxide Finish
-	088001170	Center Guard Kit
-	088200786	CE2011 PW Guard Screen Assembly
