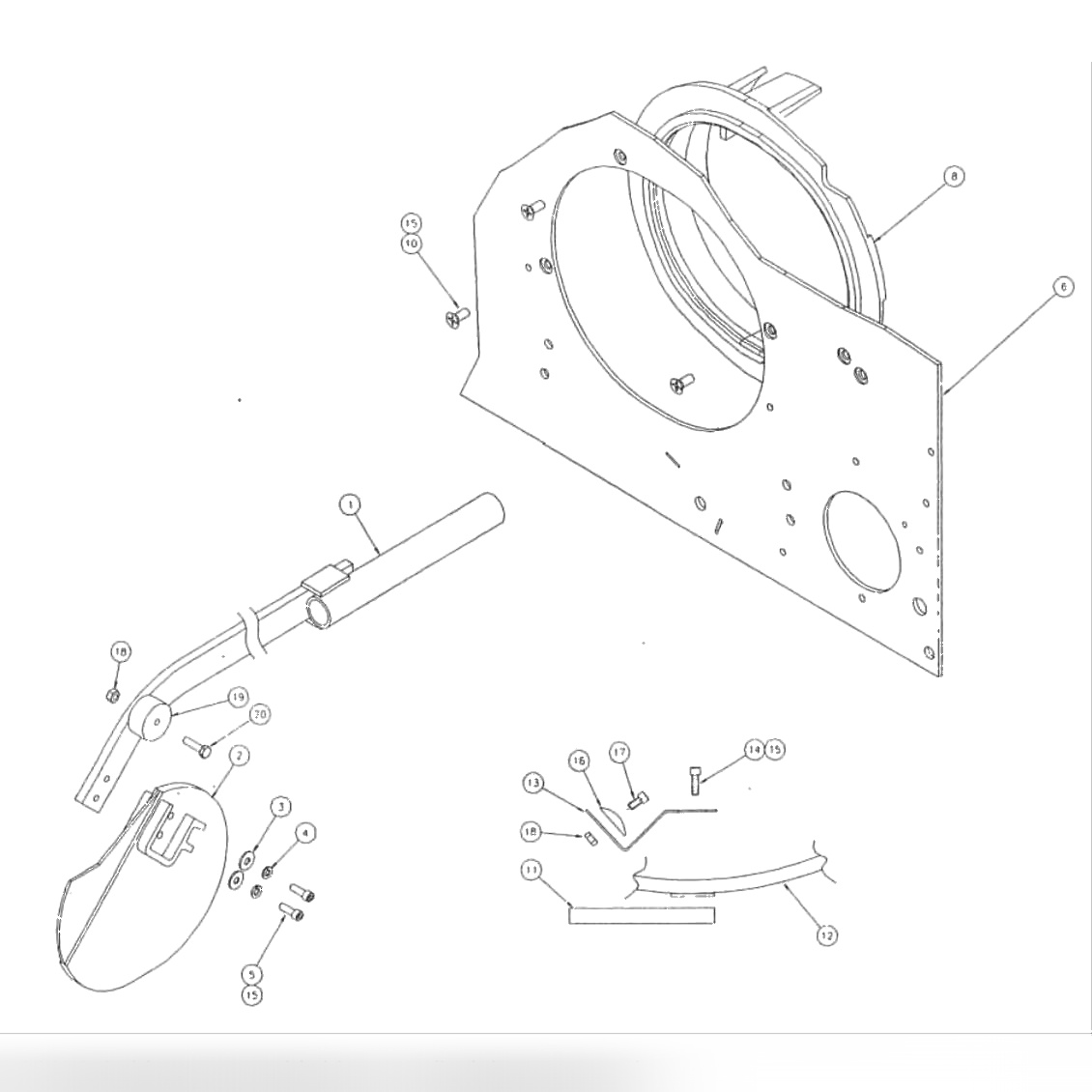

Door Ring Paddle & Reflector
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
090007231
|
Rudder Arm |
| 2 |
090007235
|
Rudder Oval |
| - |
948753102BG
|
Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10) |
| 4 |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| - |
809849125
|
Cap Screw, Hex Head, 1/4-20 X 0.75 |
| 6 |
090007229
|
Side Plate LH |
| 6 |
090007230
|
Side Plate RH |
| 8 |
090007263
|
Door Ring Left Hand |
| 8 |
090007264
|
Door Ring Right Hand |
| 10 |
808857120BG
|
Cap Screw, Flat Head, 5/16-18 X 0.75 Bg/10 |
| 11 |
090007417
|
Kickback Support Frame |
| 12 |
090007411
|
HBR Track |
| 13 |
090007236
|
Reflector Bracket |
| 14 |
808549120BG
|
Cap Screw, Button Head, 1/4-20 X 0.75 Bg/10 |
| 15 |
700107170
|
Loctite Adhesive RC609/10ML |
| 16 |
770054219
|
Reflector 2-3/16" Diameter, Clear |
| 17 |
808549080BG
|
Cap Screw, Button Head, 1/4-20 X 0.50 Bg/10 |
| - |
844049002BG
|
Hex Lock Nut, 1/4-20 (Bag of 10) |
| 19 |
090007266
|
Track |
| - |
809849165BG
|
Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10) |
| 21 |
907000900BG
|
Hi-Pro Key, 910 (Bag of 10) |
| - |
090003051
|
Washer Plate |
| - |
090003380
|
8800 Side Mount Paddle Kit |
| - |
090003381
|
Rudder Spacer |
| - |
090003382
|
Paddle |
