QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Cushion & Shock Absorber Assembly

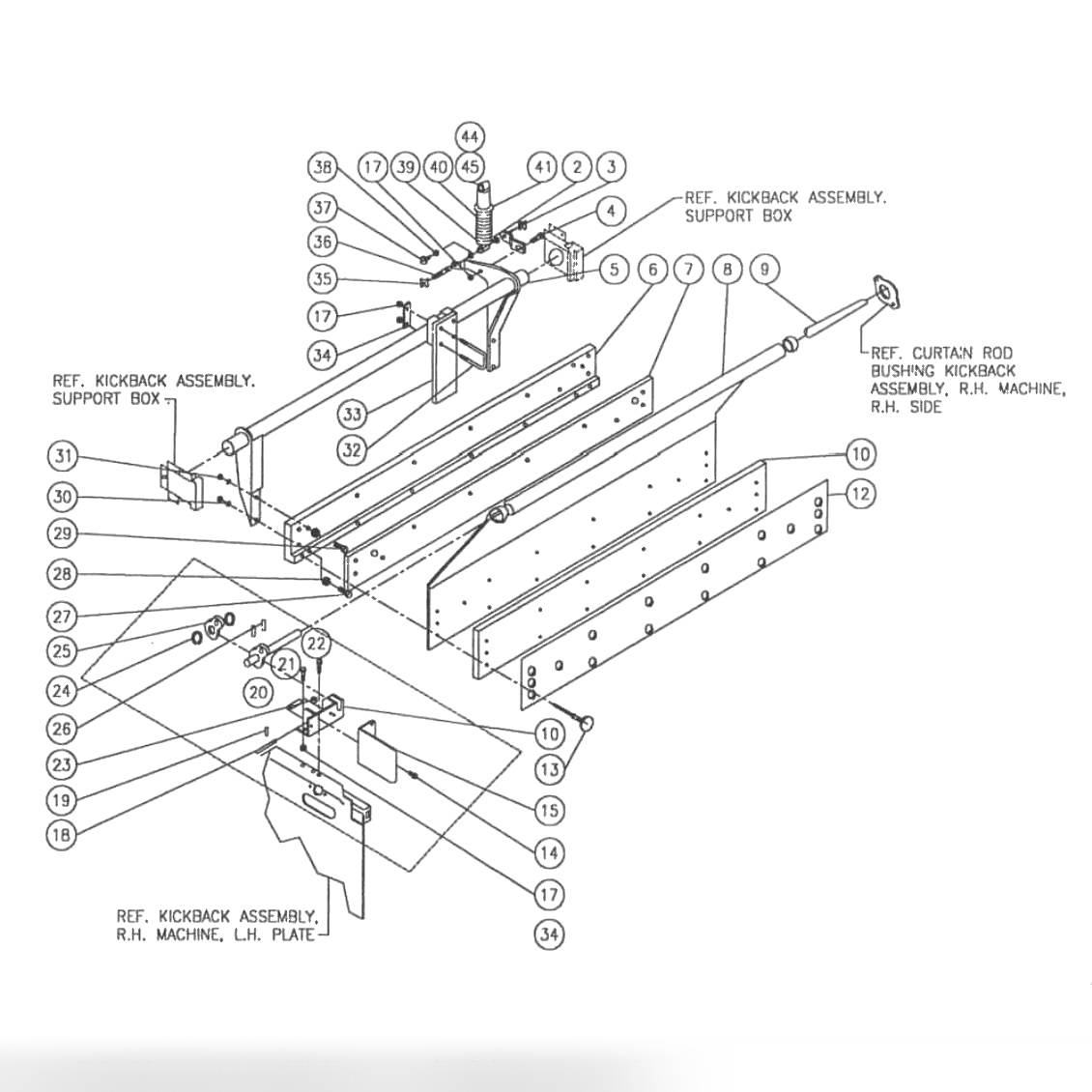

Cushion & Shock Absorber Assembly

Позиция	Артикул	Наименование
2	948975172BG	Flat Washer 1.06 X 0.53 X 0.09 (Bag of 10)
3	000024534	Ear Hanger Cushion Assembly
6	000024795	Plank, Left Hand
6	000024796	Plank, Right Hand
7	000022770	Pad Cushion Sponge, Rubber
8	000026445	Pin Curtain, Right Hand and Left Hand
9	070011288	Curtain rod
10	000024807	Cushion Rubber, Right Hand
10	000024808	Cushion Rubber, Left Hand
12	090005230	Cushion Facing
12	090005279	CUSHION COVER, 6 HOLE
13	000028529	Cushion Rivets - Urethane "Plus" (Blue Urethane)
13	V000028519-U	Super Rivet
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
15	070004738	Toe Guard
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
18	070001396	Curtain Latch Pin
19	913431160BG	Spring Pin, 5/32 X 1 (Bag of 10)
20	070001389	Curtain Latch Spring
21	809857205BG	Cap Screw, Hex Head, 5/16-18 X 1.25 (Bag of 10)
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
24	945091242	1 x 1 1/2 Washer
25	070005610	Curtain Link
26	913437240BG	Spring Pin, 3/16 X 1-1/2 (Bag of 10)
27	801865367BG	BG/5 Serrated Flange Bolt 2.25
27	808865400BG	Cap Screw, Flat Head, Hex Socket Drive, 3/8-16 X 2.50
28	000024801BG	Flat Washer
29	808865320BG	Cap Screw, Flat Head, 3/8-16 X 2.00
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
32	070001422	U Bolt, 5/16-18 X 4.25, Black Oxide Finish
33	070001432	Curtain Protection Pad (Pad)
34	070001421	Curtain Protection Pad (Strap)
35	963600002BG	X-Washer, 1/4", 9000-16 (Bag of 10)
36	000022821	Special Pin (Custom)
36	051200349	Clevis Pin 0.50 X 2.05
37	810250200BG	Cap Screw, Socket Head, 1/4-20 X 1.25 (Bag of 10)
38	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
39	000022286	Collar Shock ABD Assembly
40	000022288	Spring Cushion Zinc Phosphate
41	000022287	Washer Spring Seat
44	000022822	Sleeve
-	000026450	Pin Curtain, Reversable
-	612024000	Cushion Mount Hardware Kit
-	088000199	Cushion Asm, Odd
-	088000198	Cushion Assembly, Even
-	V000024795-6	Universal Cushion Plank
