QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Bounce Plate & Roller Assembly

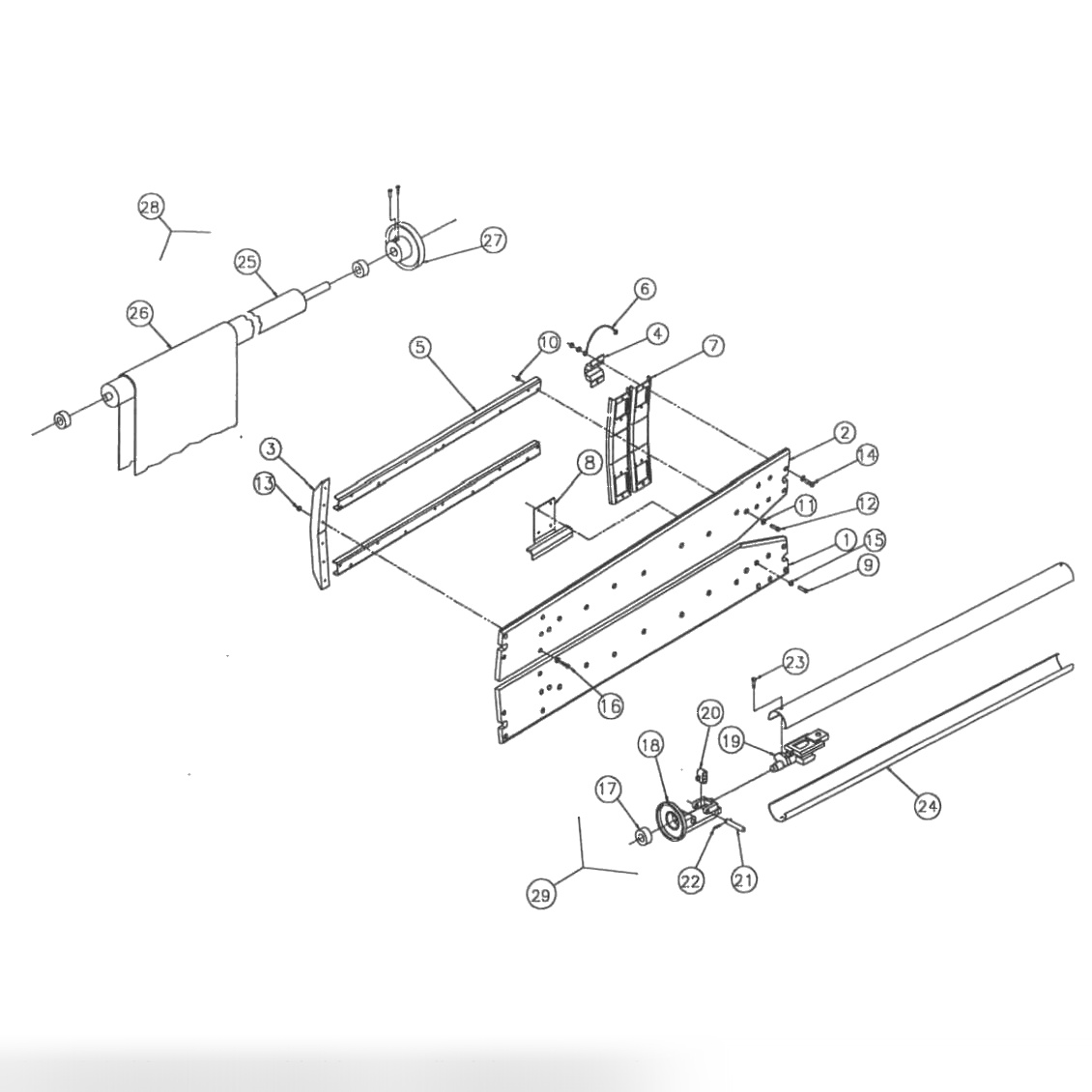

Bounce Plate & Roller Assembly

Позиция	Артикул	Наименование
1	090005270	Phenolic Bounce Board - Front (Odd)
1	090005271	Phenolic Bounce Board - Front (Even)
2	090005272	Phenolic Bounce Board - Rear (Odd)
2	090005273	Phenolic Bounce Board - Rear (Even)
3	000029626	Angle Support
4	000021224	Vibration Dampener
5	090005274	Support
6	000025622	Bonding Strap
7	000021914	Channel
8	070007769	Ball Idling Bracket Weldment
9	809849325BG	Cap Screw, Hex Head, 1/4-20 X 2.00 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
12	809857205BG	Cap Screw, Hex Head, 5/16-18 X 1.25 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
14	809849205BG	Cap Screw, Hex Head, 1/4-20 X 1.25 (Bag of 10)
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
-	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)
17	000024590	Ball Bearing, Double Seal, F and R Roller
18	000024579	Roller Hinge
19	000024580	Front Roller Shaft Hinge
20	000024597	Link Front Roller Assembly (with grease fitting)
21	000024582BG	Roller Link Special Pin (Custom) (Bag of 2)
22	913411100BG	Spring Pin, 5/64 X 5/8 (Bag of 10)
23	000025662BG	M62F Screw Nylok Bg/10
24	000024578	Front Roller Body, Upper and Lower
26	090006124	Pumpkin Carpet Belt (Tan)
26	000026753-RED	Red Performance Pit Belt
26	000026753-BLK	Pit Conveyor Belt PVC
27	090007000	Pulley Carpet
28	070002034	Roller Assembly - Rear (8270-Later)
29	000024576	Front Roller Assembly
-	090005276	Bounce Board Assembly Left Hand (Even)
-	612070014	Rear Roller Repair Kit
